VIM-2ss Port Option Card

VIM-2ss Port Option Card
X460-G2 series stacking modules allow you to add two high-performance SummitStack ports to the
VIM (Versatile Interface Module) slot on the rear panel of an X460-G2 series switch. These ports allow
you to combine multiple units into a single SummitStack management entity, using stacking cables that
are available from Extreme Networks. The VIM-2ss stacking module, shown in
integrated CX4 SummitStack 10-Gbps bidirectional stacking ports for stacking connections using
Extreme Networks SummitStack cables.
Caution
VIM modules are not hot swappable. You must power down the switch before installing any
VIM modules.
Summit X460-G2 VIM-2s s
Summit St a c k
1

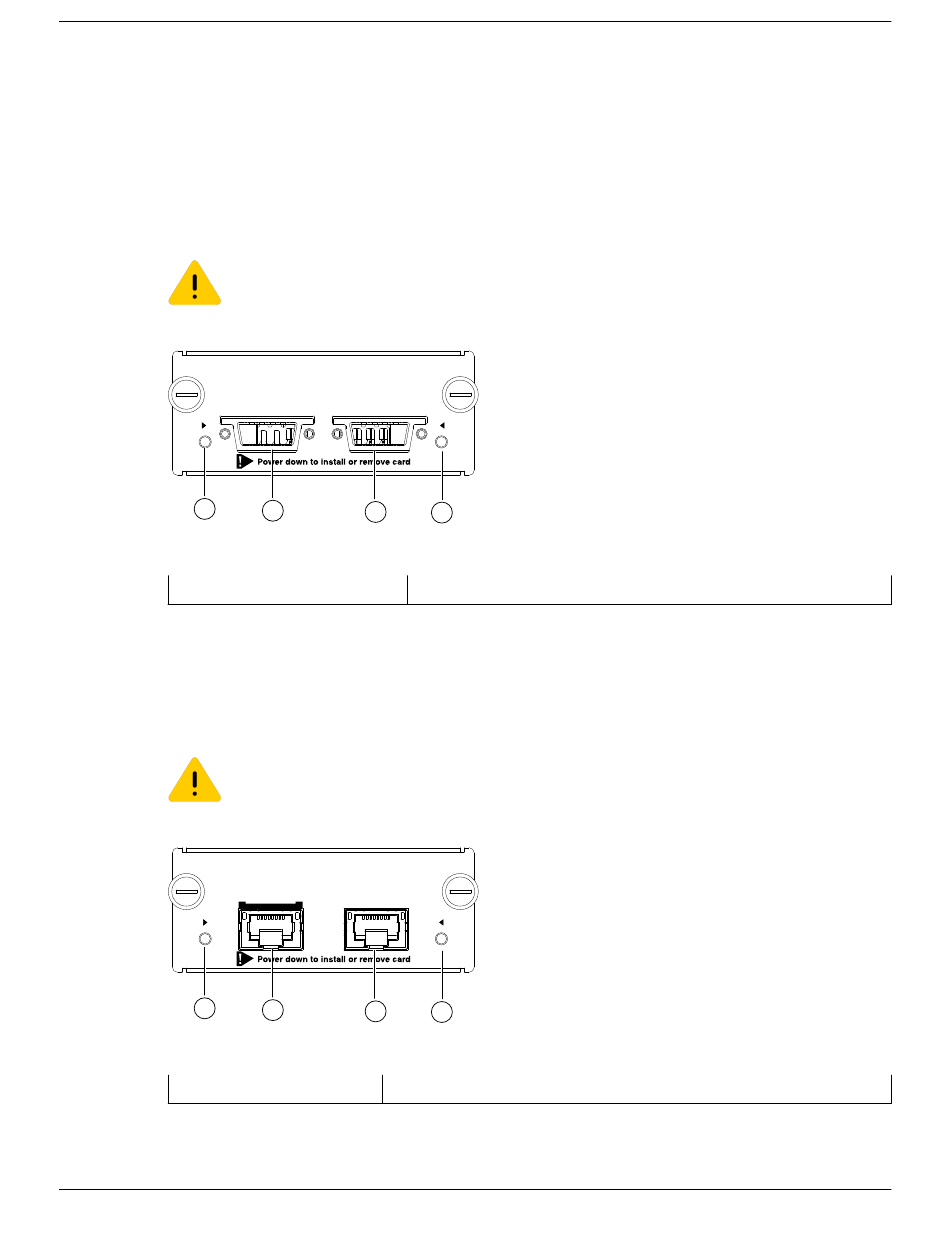

Figure 142: VIM-2ss SummitStack Module
1 = LEDs

VIM-2t Port Option Card

The VIM-2t Ethernet Module option allows you to add one or two 10-gigabit copper BASE-T ports to the
VIM (Versatile Interface Module) slot on the rear panel of an X460-G2 series switch. These ports support
10G BASE-T RJ45 cables. SyncE support is available on the S1 port.
Caution
VIM modules are not hot swappable. You must power down the switch before installing any
VIM modules.
Summit X460-G2 VIM-2t
1 0 GBAS E-T
1
Figure 143: VIM-2t Ethernet Module Option
1 = LEDs
160 ExtremeSwitching Hardware Installation Guide
TM
TM
Solid ON=Link
Blinking=Activity
S1 S2
2
2
2 = Stacking Ports
TM
Solid ON=Link
Blinking=Activity
S1 S2
SYNC-E Port
2
2
2 = 10G BASE-T ports
1
1
Expansion Modules
Figure 142, provides two
