ExtremeSwitching X460-G2-24p-GE4 Switch Ports and
Slots
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
•
One rear panel VIM slot.
•
One rear panel TM-CLK (clock) slot.
•
Rear dual PSU power slots with front-to-back or back-to-front airflow.
•
One rear slot for fan module with front-to-back or back-to-front airflow.
3
MGT FAN P1 P2 S1 S2
CLK ACT LINK
1 2

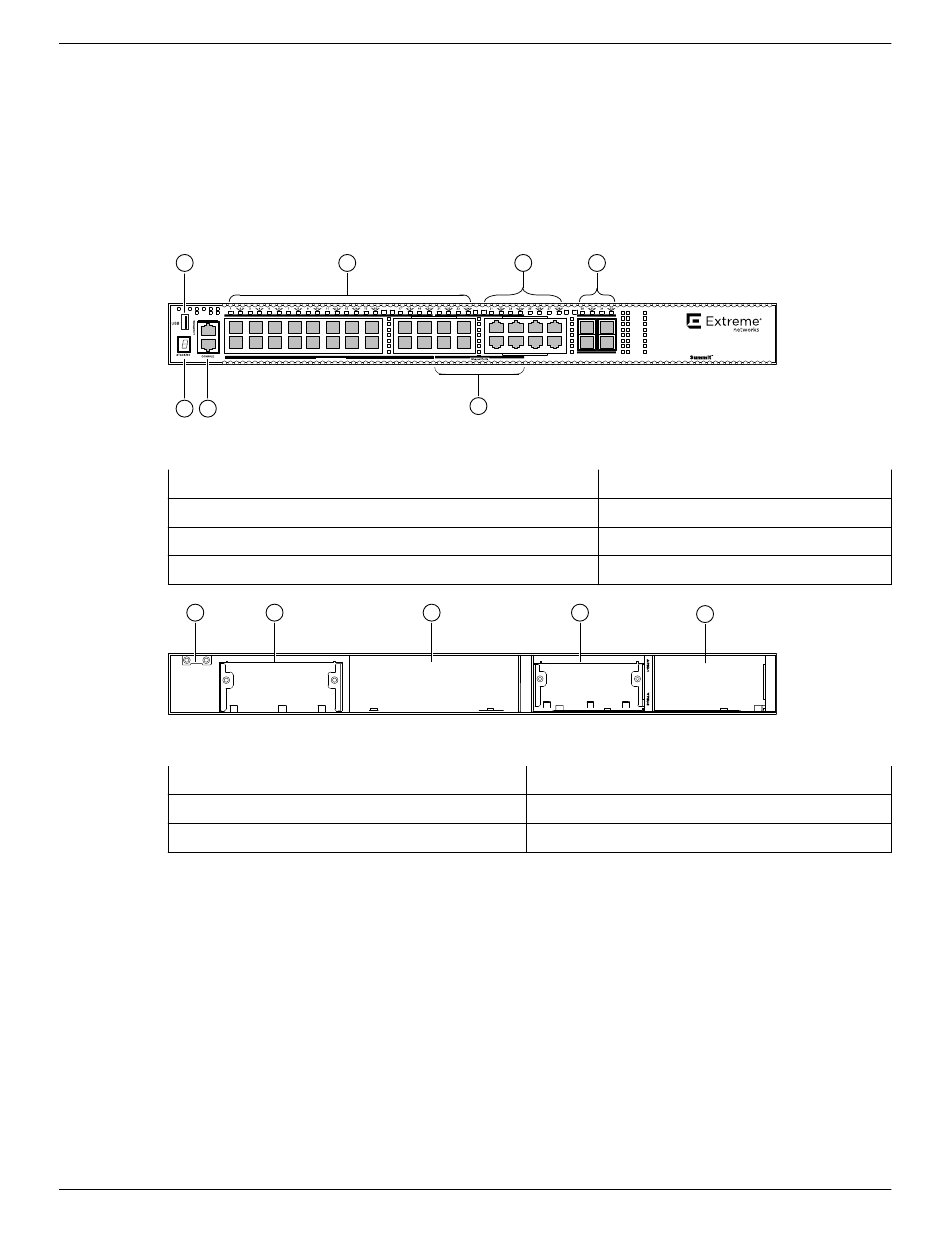

Figure 58: X460-G2-24x-10GE4 Front Panel
1 = Stack number indicator
2 = Console port/Ethernet management port
3 = USB port
4 = 10/100/1000BASE-X ports
1
Figure 59: X460-G2-24x-10GE4 Rear Panel
1 = TM-CLK (clock) slot cover
2 = VIM slot cover
3 = Fan module slot

ExtremeSwitching X460-G2-24p-GE4 Switch Ports and Slots

X460-G2-24p-GE4 switch ports and slots include:
•
24 front panel PoE+ ports of 10/100/1000BASE-T (ports 1-24, four of which are shared with SFP
ports).
•
Four front panel combo (shared) SFP ports and four dedicated SFP ports (100/1000BASE-X).
•
Four front panel ports of 1GBASE-X SFP (ports 29-32).
•
One front panel USB port.
•
Ethernet management port 1 x 10/100/1000BASE-T.
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
62 ExtremeSwitching Hardware Installation Guide
4
SYNC-E Input Ports SYNC-E Input Ports
2 3
6 7
SYNC- E I nputs 1 0 Gb E SFP +
5
5 = Combo ports
6 = 10/100/1000BASE-T ports
7 = SFP+ 10GBASE-X ports
4
4 = Blank power supply cover
5 = Power supply slot
ExtremeSwitching Switches
X4 6 0 -G2 -2 4 x -10GE4
5
