STK-RPS-1005PS Connector

Table 347: Power Specifications (continued)
DC output
Maximum output power
Table 348: Environmental Specifications
Operating temperature
Storage temperature
Operating relative humidity
STK-RPS-1005PS Connector
For pin location and function, refer to
Note
The following information is for troubleshooting purposes only. For proper operation, use only
the RPS cable supplied with the STK-RPS-1005PS. This cable is specially designed for this
application and meets all necessary regulatory and safety standards.
Caution
The use of non-approved cables will void your warranty.

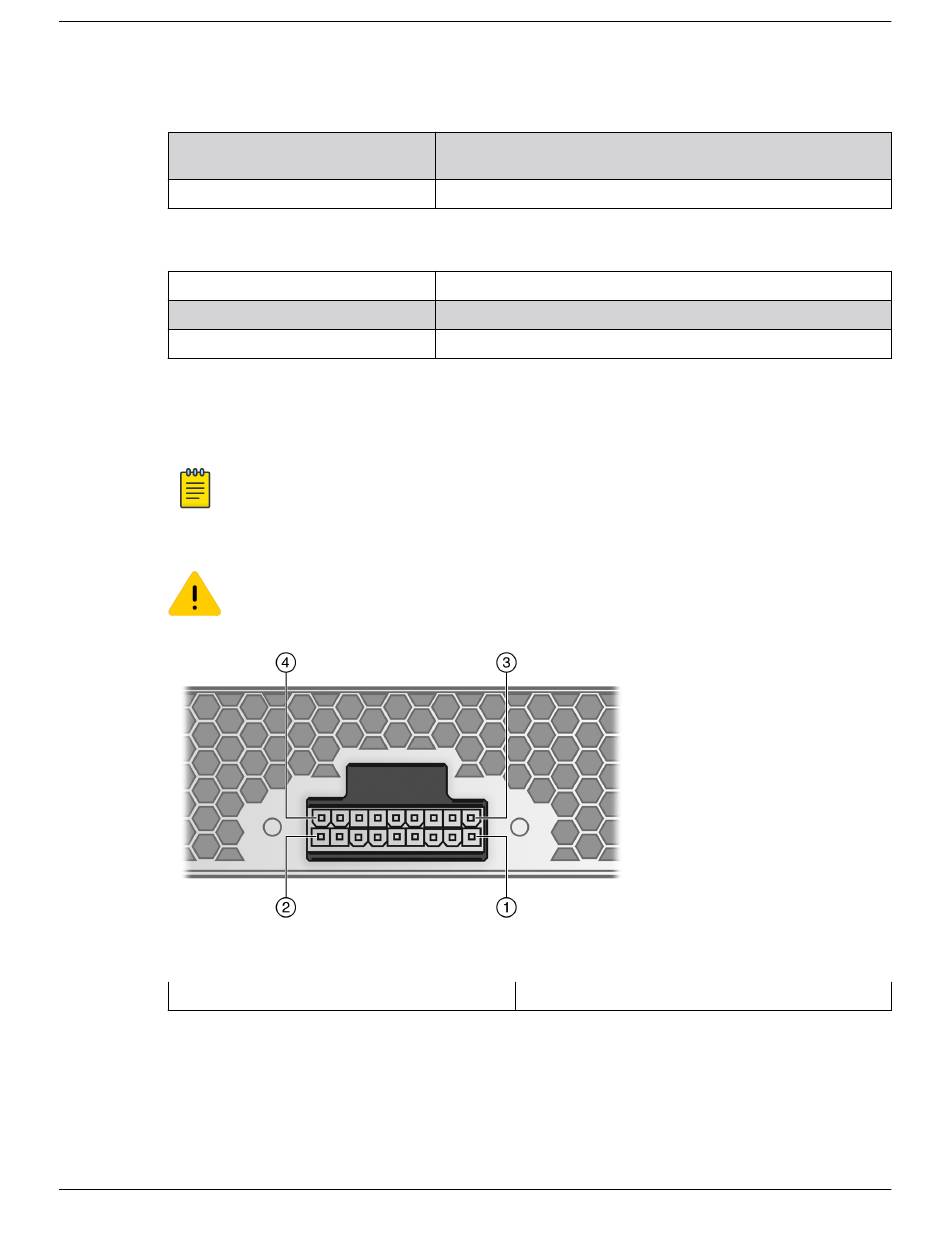

Figure 320: STK-RPS-1005PS Connector Pin Locations
1 = Pin 1
472 ExtremeSwitching Hardware Installation Guide
-55 VDC, 15 A maximum
+12.0 VDC, 0.1 A minimum, 15 A maximum
1005 W
0°C to 50°C (32°F to 122°F)
-40°C to 70°C (-40°F to 158°F)
10% to 90% non-condensing
Figure 320 and Table 349
3 = Pin 10
Technical Specifications
on page 473, respectively.
