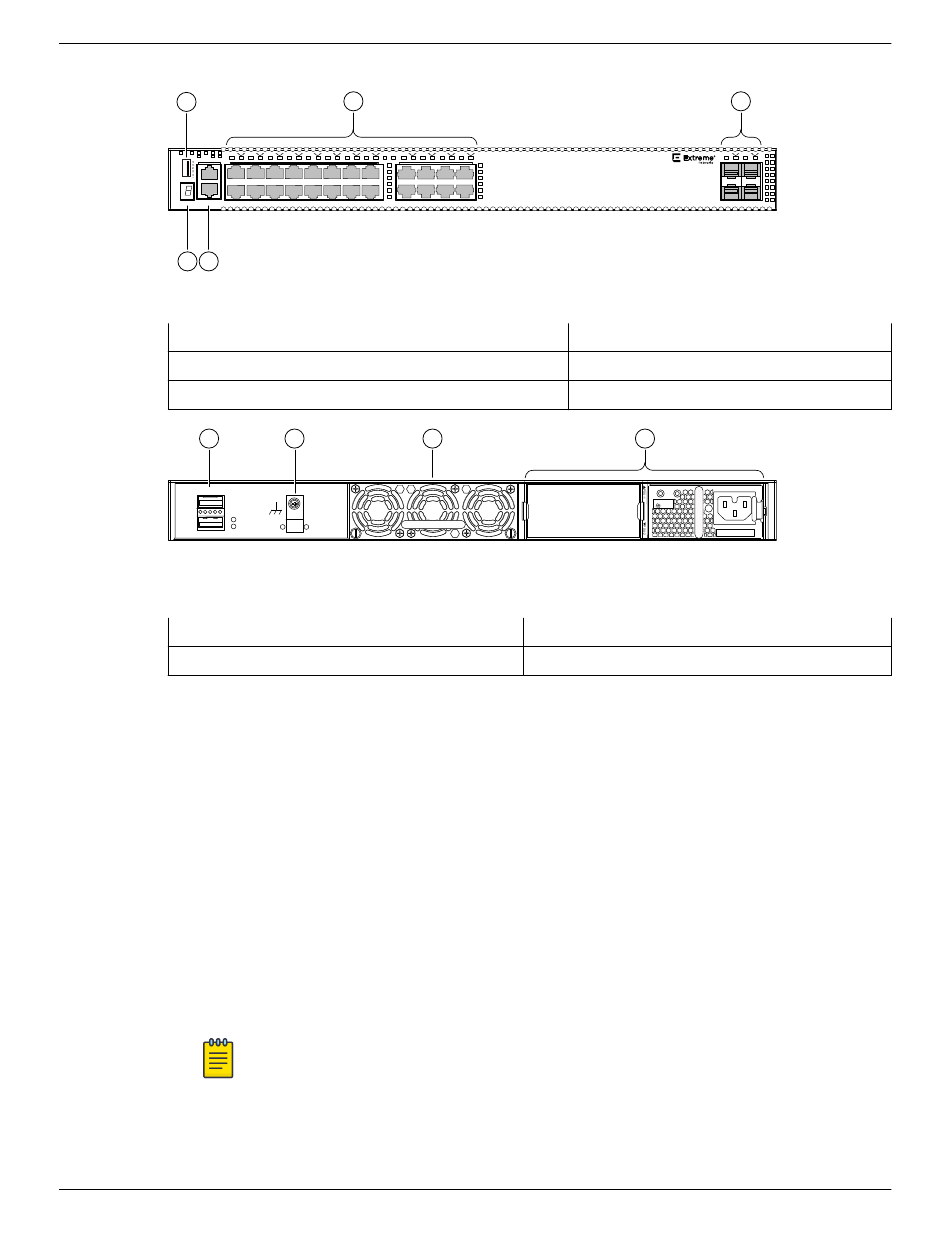

Figure 46: X450-G2-24p-GE4 Front Panel
1 = Stack number indicator
2 = Console port/Ethernet management port
3 = USB port
1
SummitStack-V84
Figure 47: X450-G2-24p-GE4 Rear Panel
1 = 21 Gb stacking ports (QSFP+)
2 = Grounding screw

ExtremeSwitching X450-G2-24p-10GE4 Switch Ports and Slots

X450-G2-24p-10GE4 switch ports and slots include:
•
24 front panel PoE+ ports of 10/100/1000BASE-T (ports 1–24).
•
Four front panel ports of 10GBASE-X SFP+ (ports 25–28, with ports 27 and 28 configurable to be
stacking ports). The SFP+ ports are dual speed (1 Gb/10 Gb).
•
Front panel USB port.
•
Ethernet management port 1 x 10/100/1000BASE-T.
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
•
One rear slot for fan module with front-to-back airflow.
•
Two dedicated QSFP-form factor 21 Gb stacking ports on the rear panel.
•
Rear dual power supply slots with front-to-back airflow.
4
18
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
2
Note
Unused power supply slots must be covered with blank panels.
ExtremeSwitching X450-G2-24p-10GE4 Switch Ports
20 22 24
19 21 23
4 = PoE+ 10/100/1000BASE-T ports
5 = SFP 1G ports
3
3 = Front-to-back fan module slot
4 = PoE+ power supply bays
