Installing LRM/MACsec Adapters in the Five-Slot
Bracket
To install an LRM/MACsec Adapter horizontally in an equipment rack, follow these steps:
1. Using two small M 4 x 6.5 mm screws (included), attach the bracket to the holes in one side of the
adapter so that the mounting ear extends away from the adapter.
Figure 259

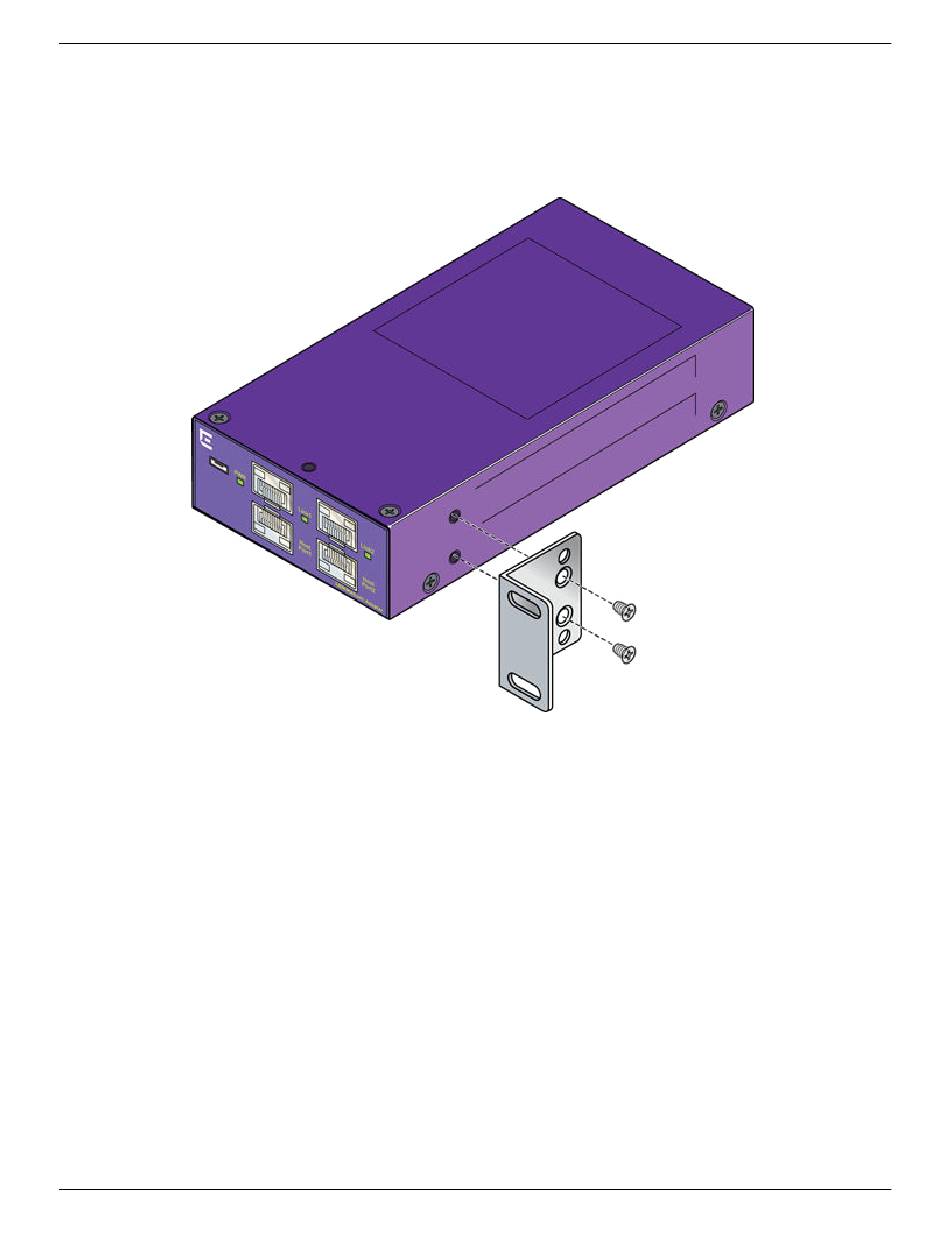

Figure 259: Attaching the Mounting Bracket to the LRM/MACsec Adapter
2. Using two rack mounting screws (not included) attach the mounting ear to the rack.
The adapter ports should face toward the front.
3. Connect the adapter to the switch, following the instructions in
Adapter to the Host Switch and to Power

Installing LRM/MACsec Adapters in the Five-Slot Bracket

Refer to Installing an LRM/MACsec Adapter
Adapter.
To install up to five LRM/MACsec Adapter units in the five-slot bracket (part no. 10966), follow these
steps:
1. Using standard rack mounting screws (not included), secure the bracket to the rack.
2. Set an LRM/MACsec Adapter in one of the bracket slots.
3. Secure the adapter to the bracket using one of the M4 x 6.5 mm screws provided with the bracket.
4. Mount up to four additional LRM/MACsec Adapter units on the bracket, as described in steps
3.
318 ExtremeSwitching Hardware Installation Guide
shows the bracket attached to the adapter.
Connecting the LRM/MACsec
on page 319.
on page 316 for installation options for the LRM/MACsec
Installing Expansion Modules
2 and
