Console Connector Pinouts
Figure 321

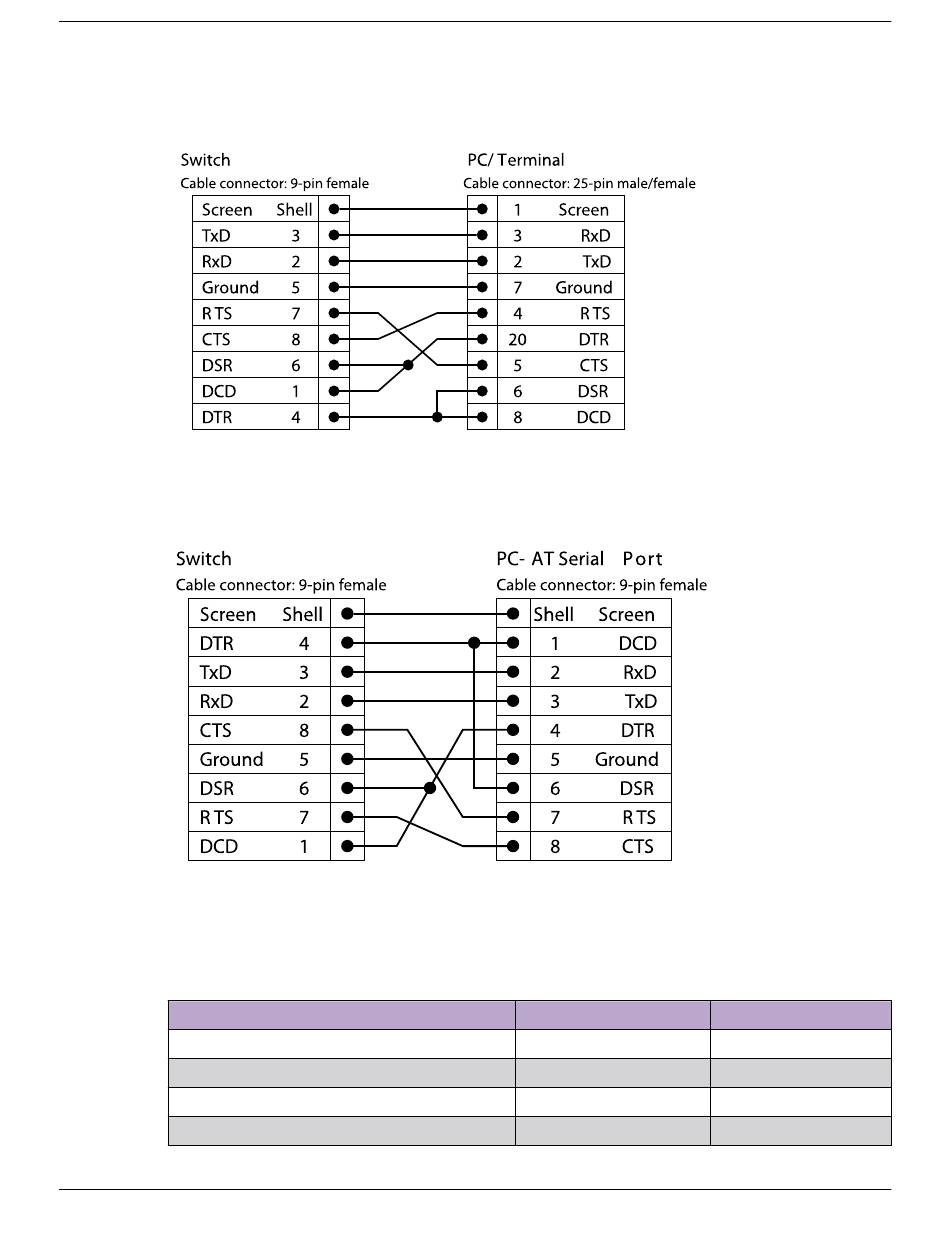

Figure 321: Null-Modem Cable Pinouts
Figure 322
Figure 322: PC-AT Serial Null-modem Cable Pinouts
Table 358 shows the pinouts for the RJ45 console port on the ExtremeSwitching switches.
Table 358: RJ45 Console Port on Switch
Function
CTS (clear to send)
DTR (data carrier detect)
TXD (transmit data)
GND (ground)
476 ExtremeSwitching Hardware Installation Guide
shows the pinouts for a 9-pin to 25-pin (RS-232) null-modem cable.
shows the pinouts for a 9-pin to 9-pin (PC-AT) null-modem serial cable.
Pin Number
1
2
3
4
Technical Specifications
Direction
In
Out
Out
—
