Replacing DC Power Supplies
3. Carefully slide the power supply all the way into the power supply bay.

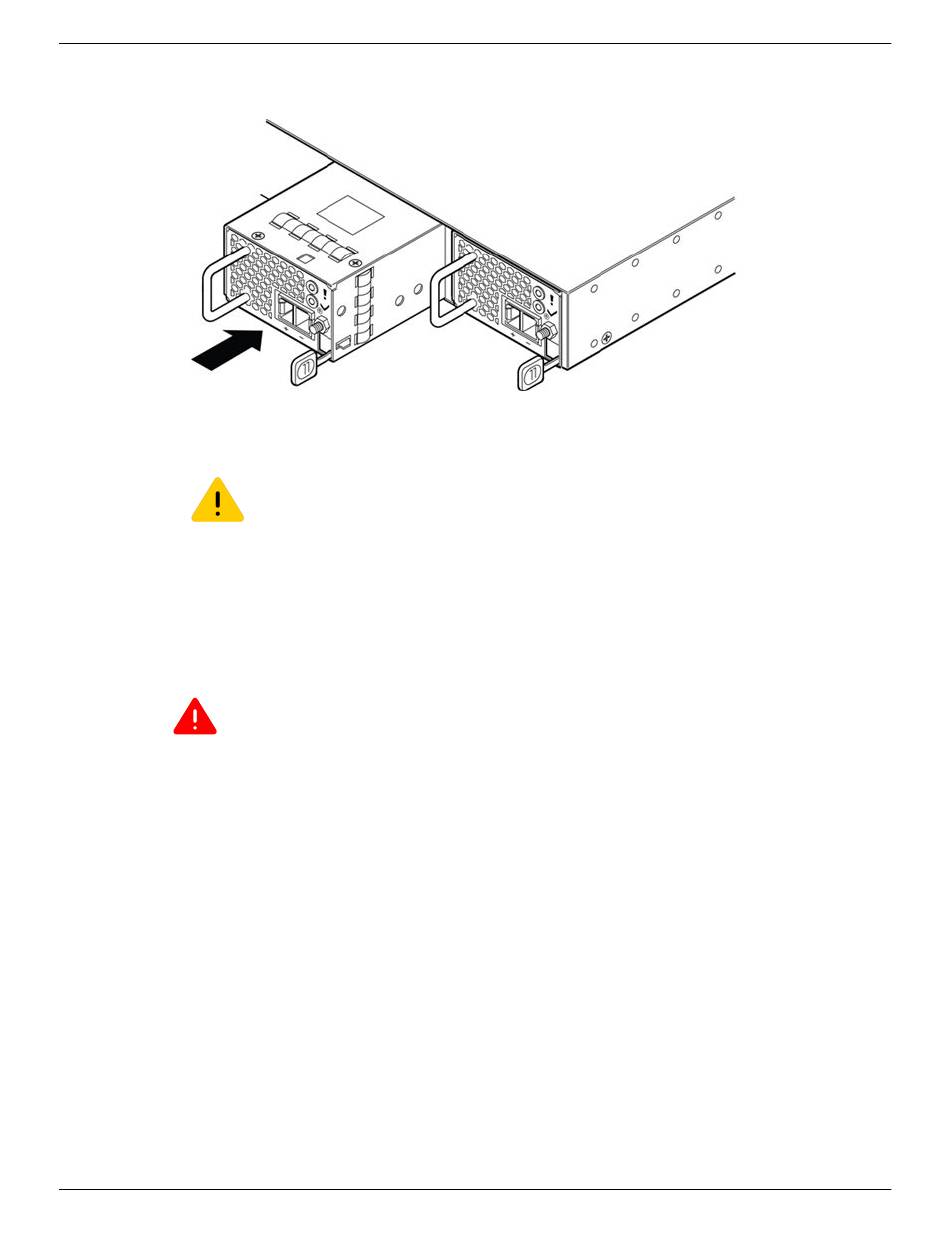

Figure 299: Installing an 750 W DC Power Supply
4. Push the power supply in until the latch snaps into place.
5. Reconnect the ground wire as described in
on page 359.

Connect the Ground Wire to an 750 W DC Power Supply

To connect the ground wire to the 750 W DC power supply, follow these steps:
Warning
Be sure to connect the ground wire before you connect any power cables to the power
supply.
1. Verify that the DC circuit is de-energized.
2. Attach an ESD-preventive wrist strap to your bare wrist and connect the metal end to an
appropriate ground point on the rack.
3. Identify the grounding post on the right side of the power supply, above the latching tab.
Caution
Do not slam the power supply into the switch.
Connect the Ground Wire to an 750 W DC Power
Connect the Ground Wire to an 750 W DC Power Supply
ExtremeSwitching Hardware Installation Guide 359
Supply
