Installing Expansion Modules
2. For non-PoE models, after attaching short brackets and PSU bracket to the V300, attach the PSU(s)
to the PSU mounting bracket using two cable ties:

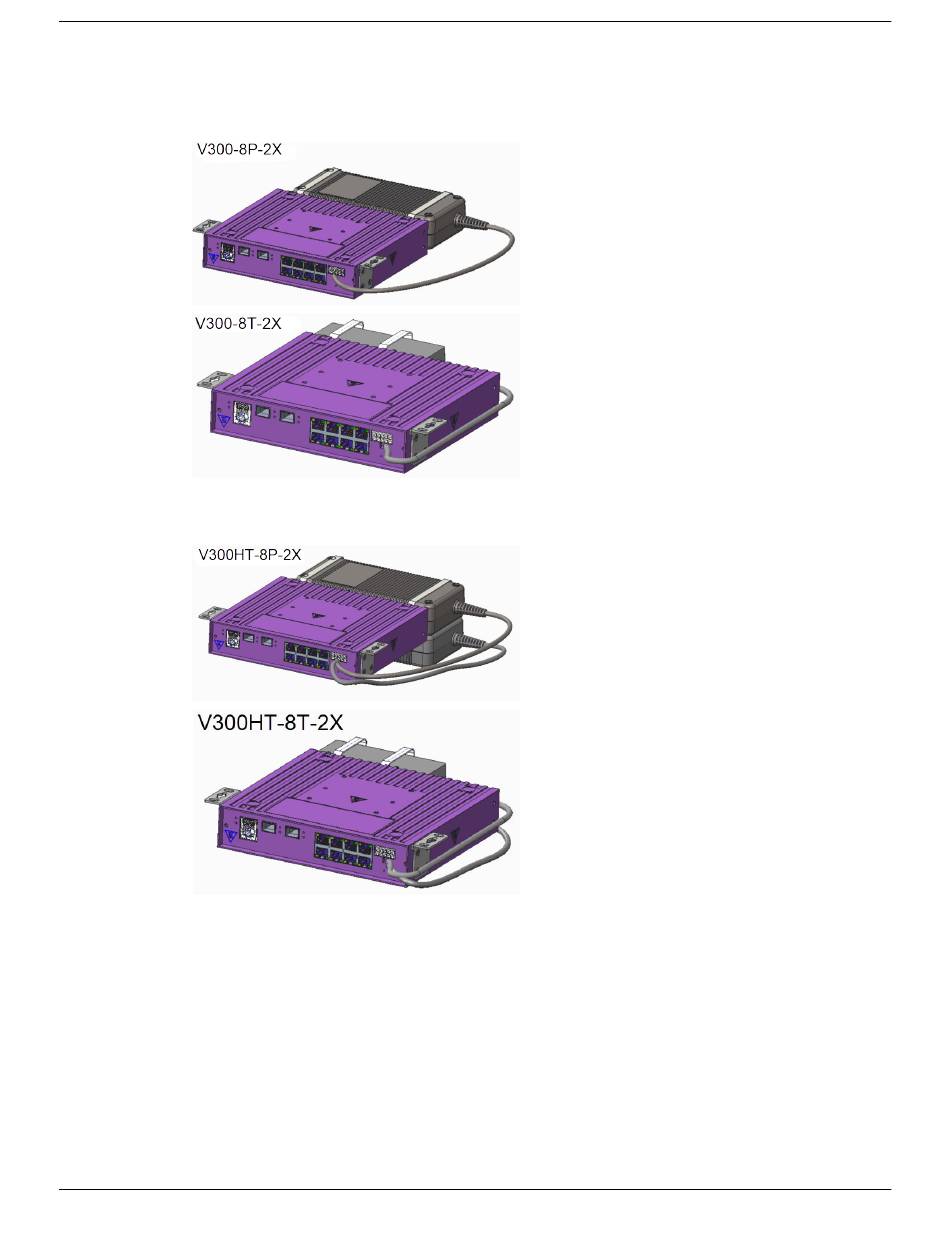

Figure 239: V300-8P/8T-2X Under Table Mounting with PSU
Figure 240: V300HT-8P/8T-2X Under Table Mounting with PSU
3. Secure the port extender to to the underside of the table using the provided 4 wood screws and 4
anchors.
4. When power is connected, verify that the SYS LED on the port extender turns green.

Install a V300 Virtual Port Extender in a VESA Mount

The following tools and materials are required to install a V300 Virtual Port Extender with a VESA
mount:
•
ESD-preventive wrist strap
Install a V300 Virtual Port Extender in a VESA Mount
