VX-RPS-1000 Redundant Power Supply

VX-RPS-1000 Redundant Power Supply
Tip
Extreme Redundant Power Supplies (RPS) do not support the ability for the RPS to be
connected to an operational switch. Connecting an RPS to an operational switch can have an
adverse effect on the switch. It is best practice that both the switch and the RPS be powered
down prior to cabling them together. Once the cabling is completed, turn on the RPS, then
turn on the switch.
The VX-RPS-1000 provides load sharing, backup, or additive power for the V400 Virtual Port Extender.

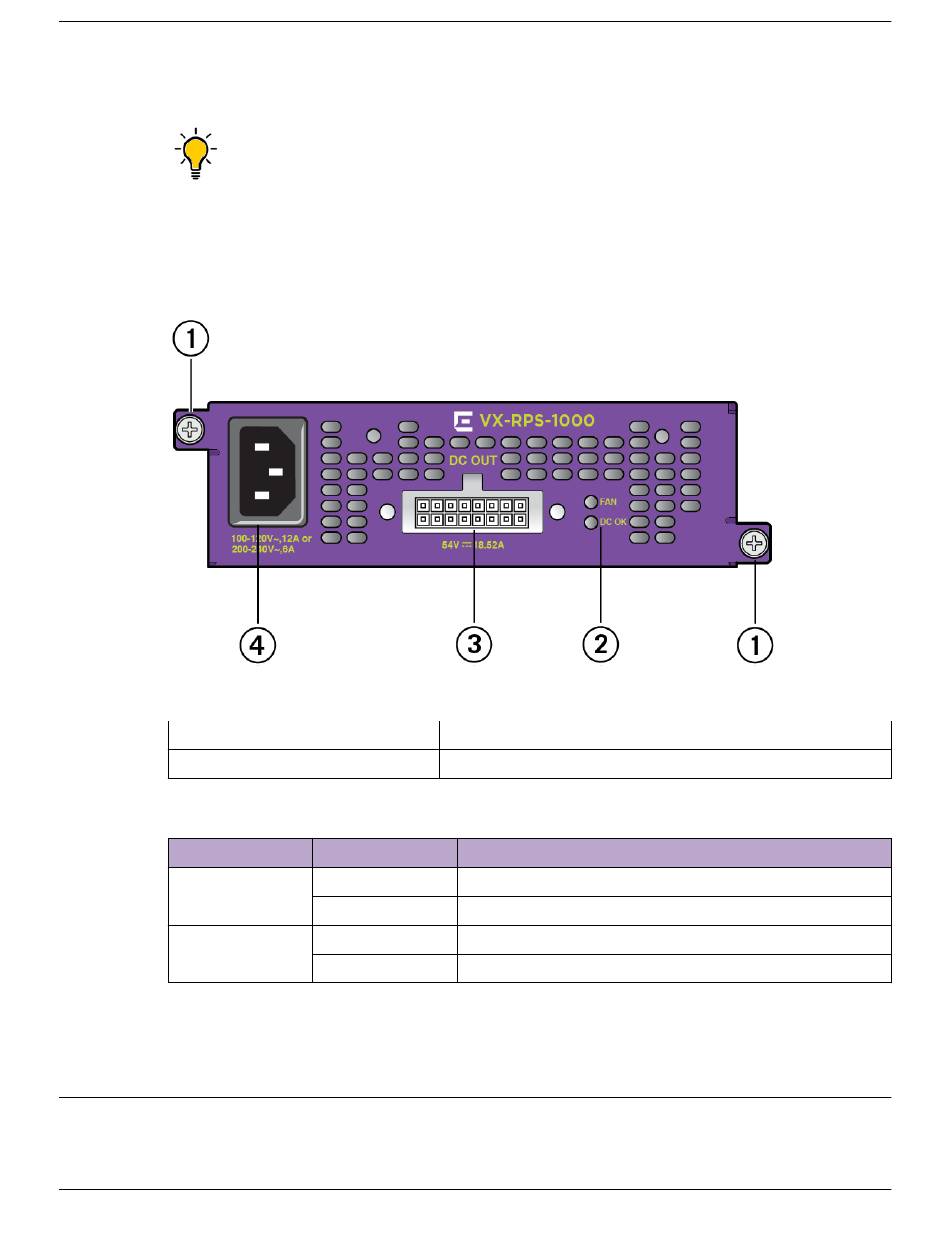

Figure 120: VX-RPS-1000 Front Panel
1 = Captive screws
2 = Status LEDs
Table 46: VX-RPS-1000 LED Status Definitions
LED
AC OK
DC OK
For technical specifications, including pin locations and functions, see
Supply Technical Specifications

Replaceable Internal Power Supplies

Several ExtremeSwitching switch models have two bays for installing one or two replaceable AC or DC
power supplies.
130 ExtremeSwitching Hardware Installation Guide
3 = Connector to port extender
4 = AC power input connector
LED Color Status
Green AC input within operational range
Off No AC voltage or AC voltage is outside the operational range
Green DC input within operational range
Off No DC voltage or DC voltage is outside the operational range
on page 473.
Power Supplies for Use with Your Switch
VX-RPS-1000 Redundant Power
