ExtremeSwitching X450-G2-48t-GE4 Switch Ports and
Slots
3
MGT FAN P1 P2 S S2
1
CLK ACT LINK
CONSOLE
STACK NO.
1 2

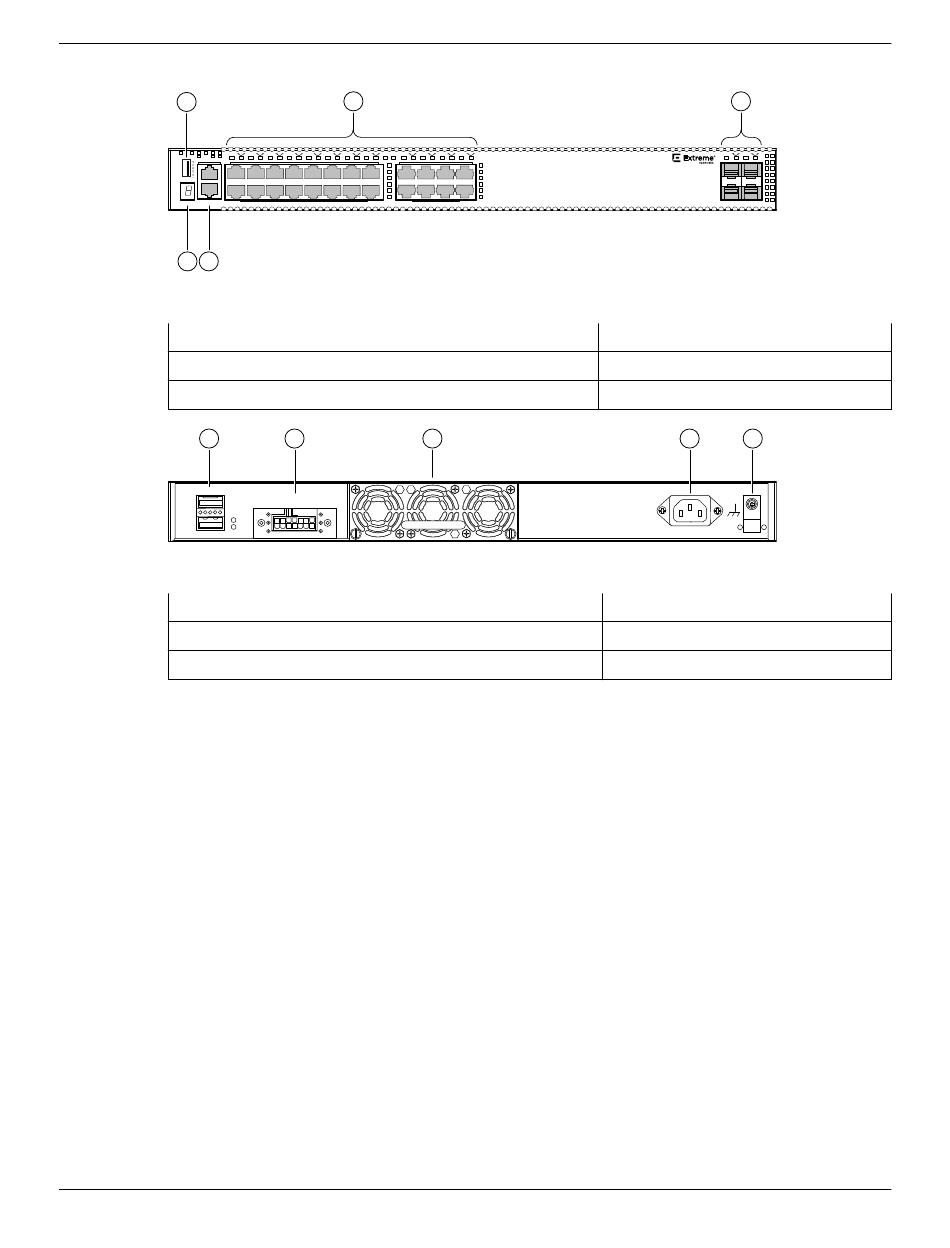

Figure 40: X450-G2-24t-10GE4 Front Panel
1 = Stack number indicator
2 = Console port/Ethernet management port
3 = USB port
1
SummitStack-V84
1
2
Figure 41: X450-G2-24t-10GE4 Rear Panel
1 = 21 Gb stacking ports (QSFP+)
2 = Redundant power supply (RPS) connector
3 = Front-to-back fan module slot

ExtremeSwitching X450-G2-48t-GE4 Switch Ports and Slots

X450-G2-48t-GE4 switch ports and slots include:
•
48 front panel ports of 10/100/1000BASE-T (ports 1–48).
•
Four front panel ports of 1GBASE-X SFP (ports 49–52).
•
One front panel USB port.
•
Ethernet management port 1 x 10/100/1000BASE-T.
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
•
One fixed power supply.
•
One rear redundant power supply connector.
•
One rear slot for fan module with front-to-back airflow.
•
Two dedicated QSFP-form factor 21 Gb stacking ports on the rear panel.
50 ExtremeSwitching Hardware Installation Guide
4
18
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
2
Redundant Power Input
! See Manual
20 22 24
19 21 23
3
ExtremeSwitching Switches
5
25 26 27 28
Summit
™ X450-G2-24t-10GE4
10GbES FP+
4 = 10/100/1000BASE-T ports
5 = SFP+ 10GBASE-X ports
4 5
4 = AC power input connector
5 = Grounding screw
