ExtremeSwitching Switches
•
ExtremeSwitching X465-48T Switch Ports and Slots
•
ExtremeSwitching X465-48W Switch Ports and Slots
•
ExtremeSwitching X465i-48W Switch Ports and Slots

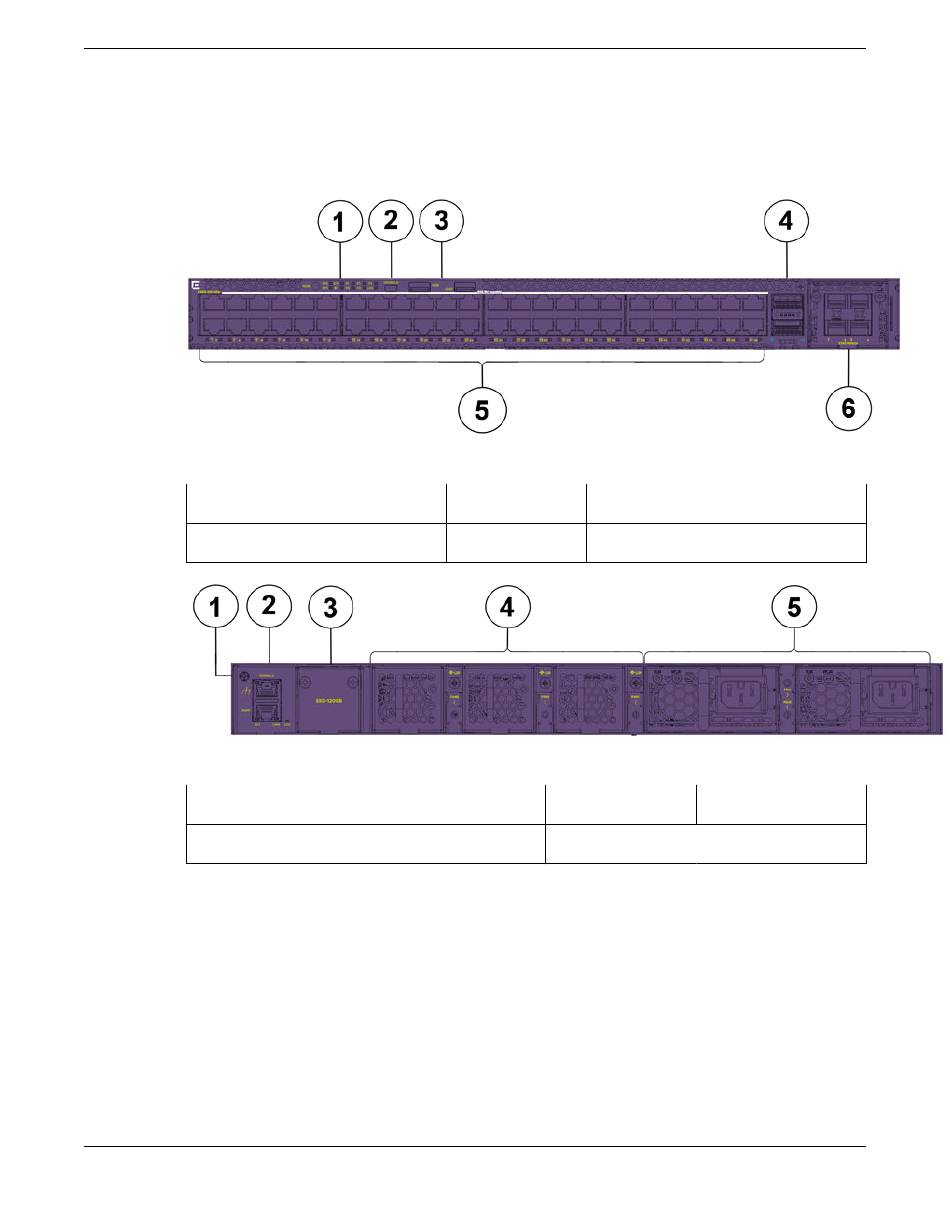

Figure 80: X465 Series Switch: Front Panel (48-port model shown)
1 = Mode Button and System LEDs
2 = USB micro B management port
Figure 81: X465 Series Switch: Rear Panel
1 = Grounding lug
2 = RJ45 console and management ports

Management

You can use a serial console port on the rear panel of the X465 series switch to connect a terminal and
perform local management. An Ethernet management port can be used to connect the system to a
parallel management network for administration. Alternatively, you can use an Ethernet cable to
connect this port directly to a laptop to view and locally manage the switch configuration. The Ethernet
management port supports 10/100/1000 Mbps speeds.
There is also a USB console port. If the USB console port is connected, it will be selected over the RJ45
console port. The USB console port will disconnect when the switch is rebooted. You can re-connect the
port if needed. When the USB console is active, any messages from the switch to the client terminal will
on page 79
on page 80
on page 80
3 = USB A ports 5 = Access ports
4 = Stacking ports 6 = VIM slot, shown with VIM installed
3 = SSD slot
4 = Fan modules
ExtremeSwitching Hardware Installation Guide
Management
5 = Power supplies
75
