Replacing DC Power Supplies
5. Push the latching tab toward the power supply handle and pull outward on the handle to disengage
the power supply internal connectors.
See Figure

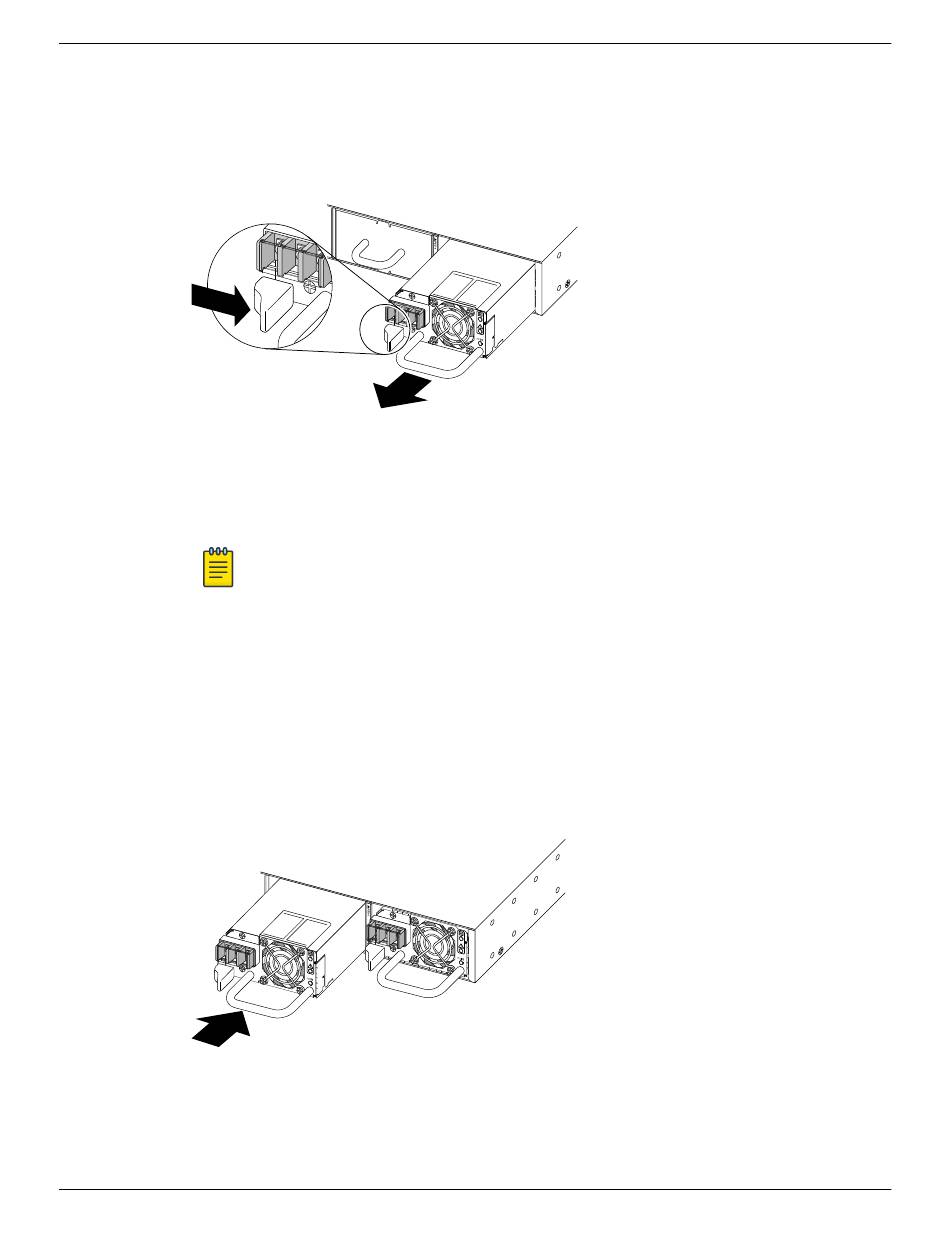

Figure 292: Removing a Summit 450 W or 550 W Power Supply
6. Carefully slide the power supply the rest of the way out of the switch.
7. If a replacement power supply will not be installed, install a cover over the unoccupied power supply
bay.

Installing a Replacement 450 W or 550 W DC Power Supply

To install a replacement 450 W or 550 W DC power supply, follow these steps:
1. Verify that the replacement power supply is oriented the same as the unit you removed and that it
has the same airflow direction as the switch.
2. Carefully slide the power supply all the way into the power supply bay.
See Figure
Figure 293: Installing a 450 W or 550 W DC Power Supply
292.
Note
Unoccupied power supply bays must always be covered to maintain proper system
ventilation and EMI levels.
293.
Installing a Replacement 450 W or 550 W DC Power
ExtremeSwitching Hardware Installation Guide
Supply
