USB console port.
•
RJ45 RS-232c serial console port used to connect a terminal and perform local management.
•
LEDs to indicate port status and switch operating conditions. For a description of the LEDs and their
operation, see

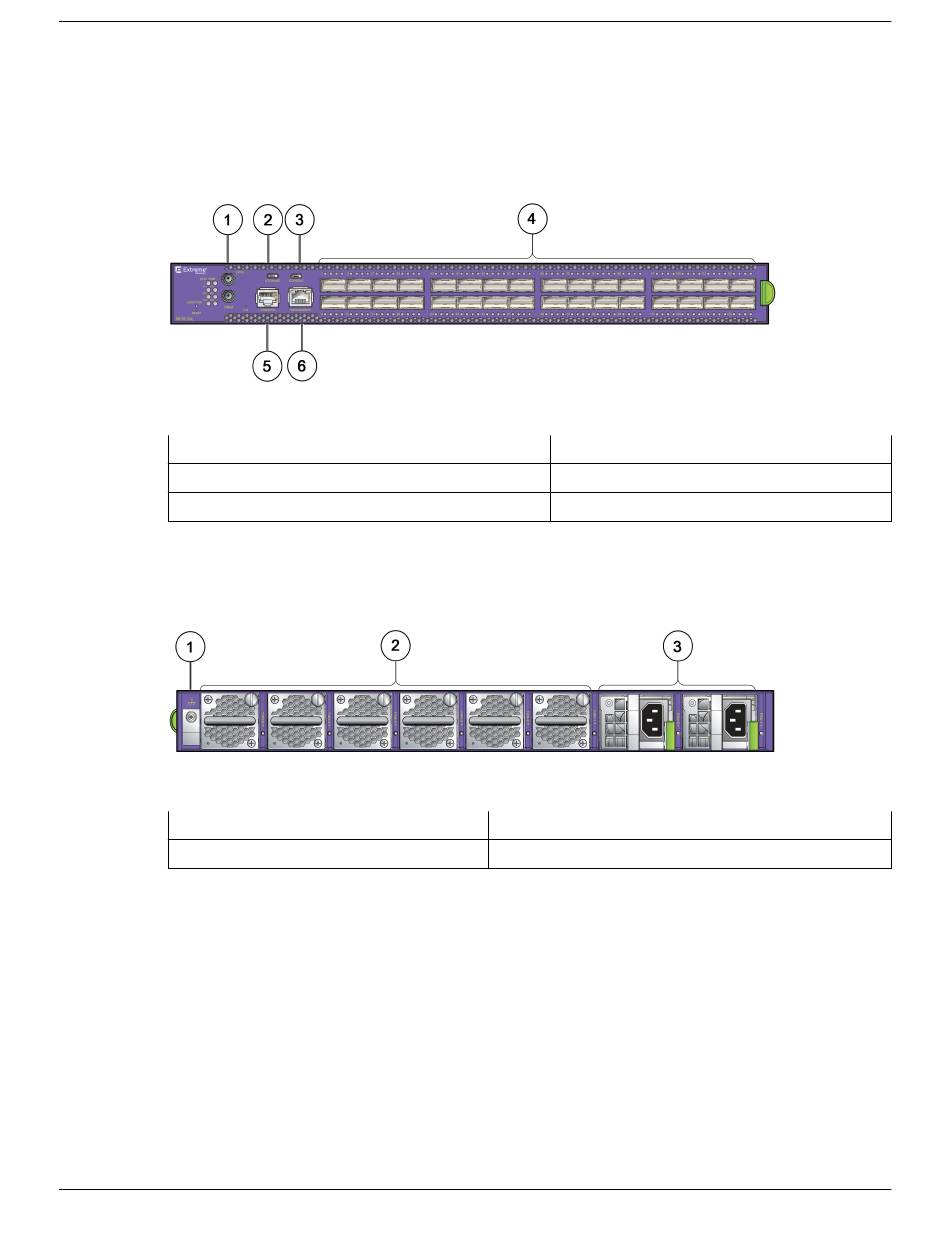

Figure 111: ExtremeSwitching X870-32c Front Panel
1 = Precision Timing ports (not supported)
2 = Storage port: micro USB A
3 = Console port: micro USB B
The rear panel of the ExtremeSwitching X870-32c switch includes:
•
Six replaceable fan modules.
•
Two power supply bays for either AC or DC power supplies.
Figure 112: ExtremeSwitching X870-32c Rear Panel
1 = Grounding lug
2 = Fan modules

ExtremeSwitching X870-96x-8c Switch Ports and Slots

The front panel of the ExtremeSwitching X870-96x-8c switch includes:
•
Eight 100-gigabit Ethernet ports capable of supporting passive copper QSFP28/QSFP+ and active
fiber QSFP28/QSFP+ and configurable for 100 Gb, 40 Gb, 2x50 Gb, 4x25 Gb, and 4x10 Gb modes.
For information about QSFP28 and QSFP+ optical modules, see the
Transceivers Installation
•
24 100-gigabit Ethernet ports capable of supporting passive copper QSFP28/QSFP+ and active
fiber QSFP28/QSFP+ and restricted to 4x10 Gb Ethernet mode
ExtremeSwitching X870 Series Switch LEDs
Guide.
ExtremeSwitching X870-96x-8c Switch Ports and Slots
on page 116.
4 = QSFP28/QSFP+ Ethernet ports
5 = Console port: RJ45
6 = Ethernet management port: RJ45
3 = AC power supplies
Extreme Networks Pluggable
ExtremeSwitching Hardware Installation Guide 115
