Connecting the RPS Cable and AC Power Cord

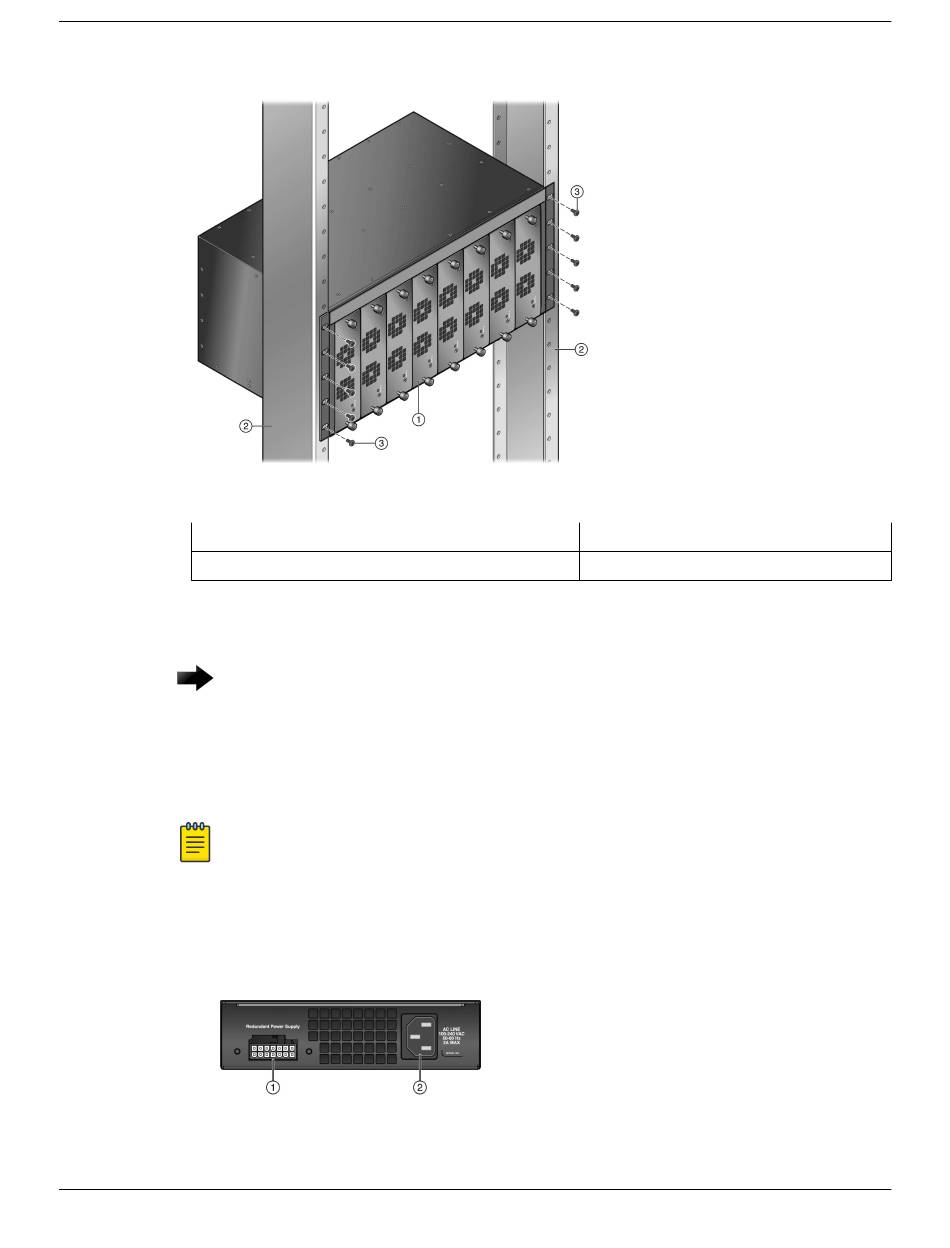

Figure 225: Fastening the STK-RPS-150CH8 to the Rack
1 = STK-RPS-150CH8 shelf
2 = Rails of rack
Connecting the RPS Cable and AC Power Cord
Important
When performing this task, observe all of the precautions listen in
Installing Power Supplies
The redundant power supply is connected to a switch using a 1-meter RPS cable.
To connect a redundant power supply, proceed as follows:
Note
No change in switch configuration is necessary for this installation.
1. Connect one end of the RPS cable to the redundant power supply connector at the rear of the RPS.
Then connect the other end of the cable to the redundant power supply connector on the switch.
See the following figures.
Figure 226: Power Connectors on STK-RPS-150PS (rear view)
284 ExtremeSwitching Hardware Installation Guide
3 = Mounting screws
on page 263.
Installing External Power Supplies
