Installing a Replacement 300 W DC Power Supply

3. Disconnect the ground wire:
a. Remove the screw that secures the ground wire to the power supply.
b. Move the wire away from the power supply.
4. Push the latching tab toward the power supply handle and pull outward on the handle to disengage
the power supply internal connectors.
See Figure

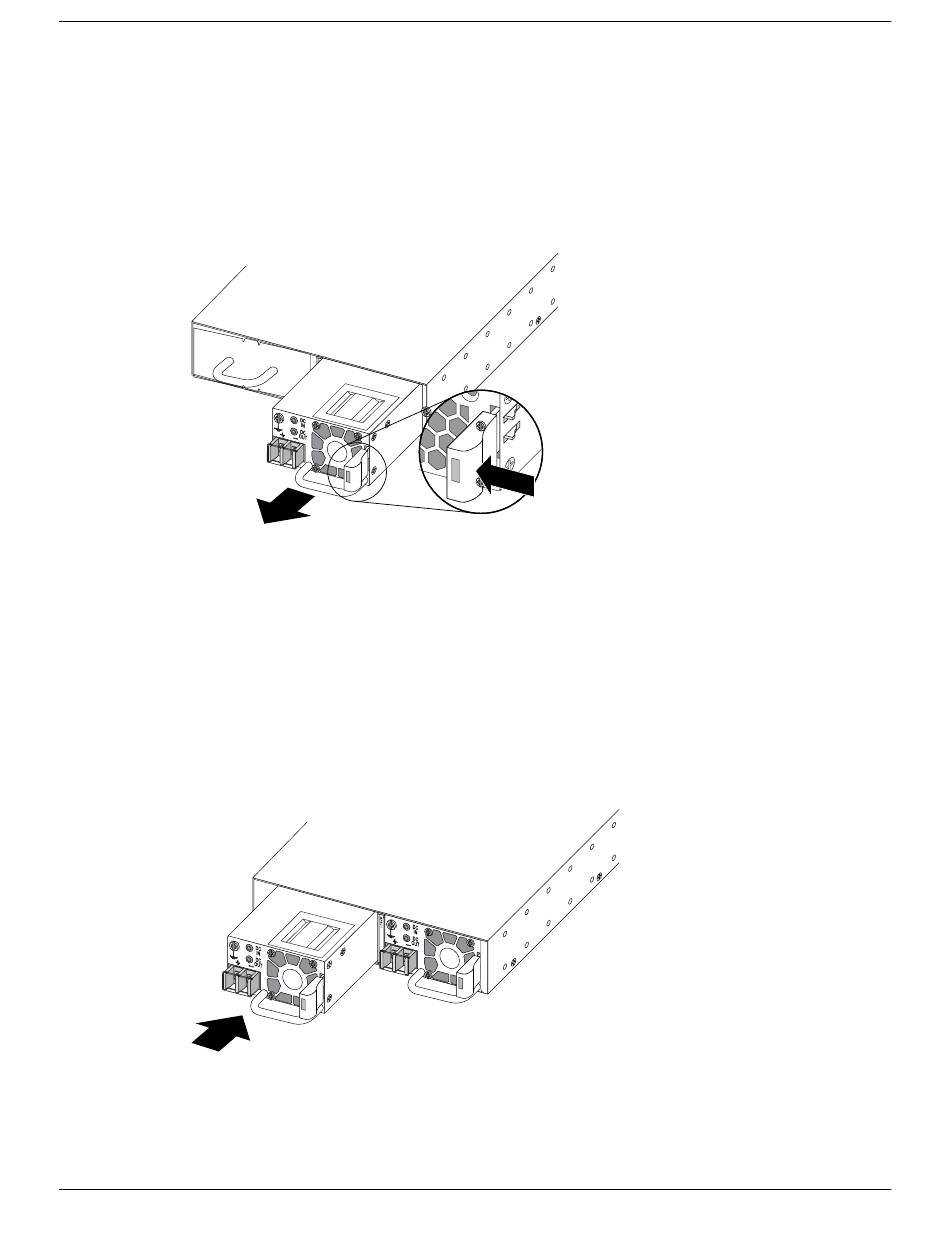

Figure 285: Removing a Summit 300 W DC Power Supply (Front-to-Back Model
10933 Shown)
5. Carefully slide the power supply the rest of the way out of the switch.
Installing a Replacement 300 W DC Power Supply
To install a replacement Summit 300 W DC power supply, follow these steps:
1. Verify that the power supply is right side up.
2. Carefully slide the power supply all the way into the power supply bay.
See Figure
Figure 286: Installing a Summit 300 W DC Power Supply (Front-to-Back Model
10933 Shown)
