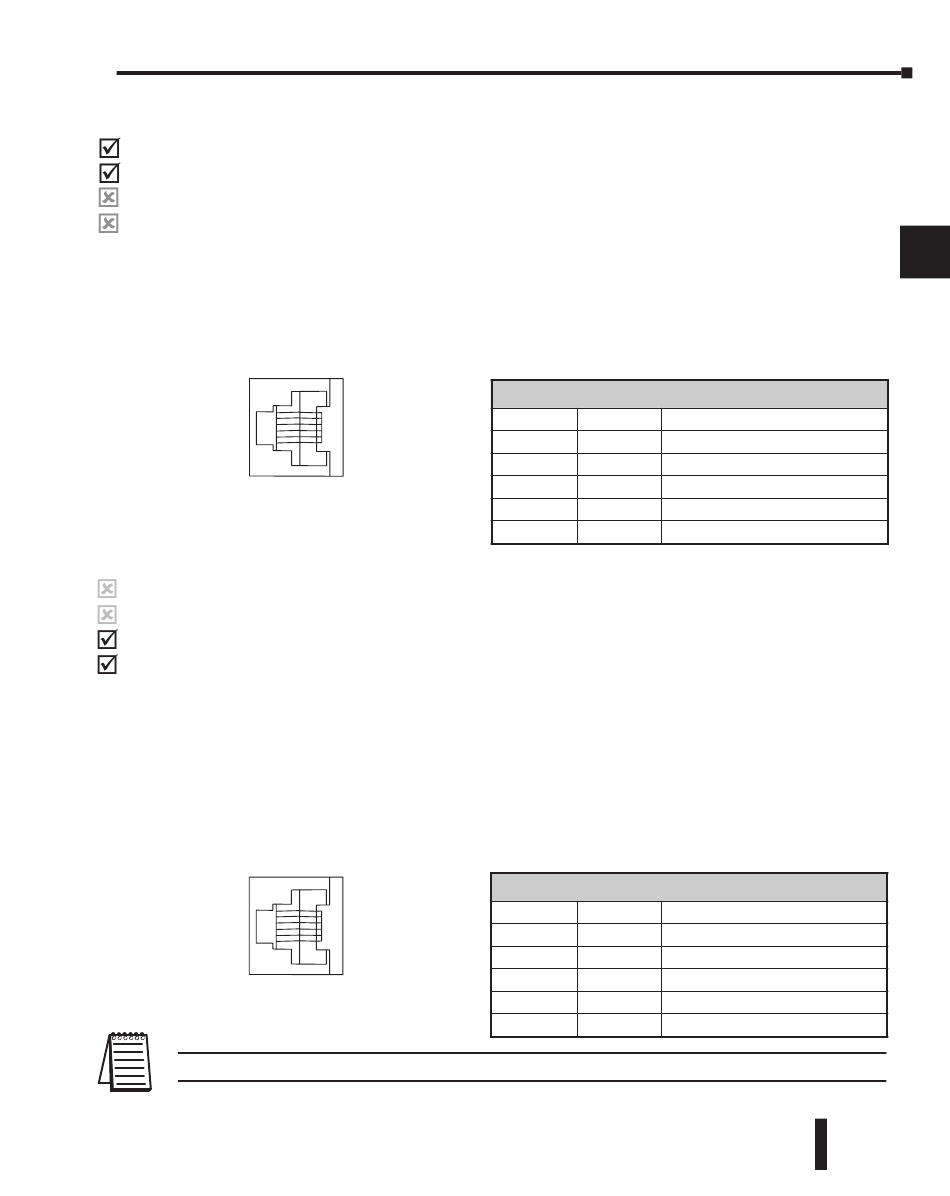

Port 1 Specifications

The operating parameters for Port 1 on the DL230 and DL240 CPUs are fixed.
230
• 6-pin female modular (RJ12 phone jack) type connector
240
• K–sequence protocol (slave only)
250-1
• RS-232, 9600 baud
260
• Connect to DirectSOFT, D2–HPP, DV–1000, HMI panels
• Fixed station address of 1
• 8 data bits, one stop
• Asynchronous, Half–duplex, DTE
• Odd parity
6-pin Female
Modular Connector
Port 1 Specifications
The operating parameters for Port 1 on the DL250–1 and DL260 CPU are fixed. This
230
applies to the DL250 as well.
240
• 6-pin female modular (RJ12 phone jack) type connector
250-1
• K–sequence protocol (slave only)
260
• DirectNET (slave only)
• Modbus RTU (slave only)
• RS-232, 9600 baud
• Connect to DirectSOFT, D2–HPP, DV1000 or DirectNET master
• 8 data bits, one start, one stop
• Asynchronous, Half–duplex, DTE
• Odd parity
6-pin Female
Modular Connector
NOTE: The 5V pins are rated at 200mA maximum, primarily for use with some operator interface units.
Chapter 3: CPU Specifications and Operations
1
6
1
6
DL205 User Manual, 4th Edition, Rev. B
Port 1 Pin Descriptions (DL230 and DL240)
1 0V Power (–) connection (GND)
2 5V Power (+) connection
3 RXD Receive Data (RS-232)
4 TXD Transmit Data (RS-232)
5 5V Power (+) connection
6 0V Power (–) connection (GND)
Port 1 Pin Descriptions (DL250-1 and DL260)
1 0V Power (–) connection (GND)
2 5V Power (+) connection
3 RXD Receive Data (RS-232C)
4 TXD Transmit Data (RS-232C
5 5V Power (+) connection
6 0V Power (–) connection (GND)
