Chapter 5: Intelligent Box (IBox) Instructions

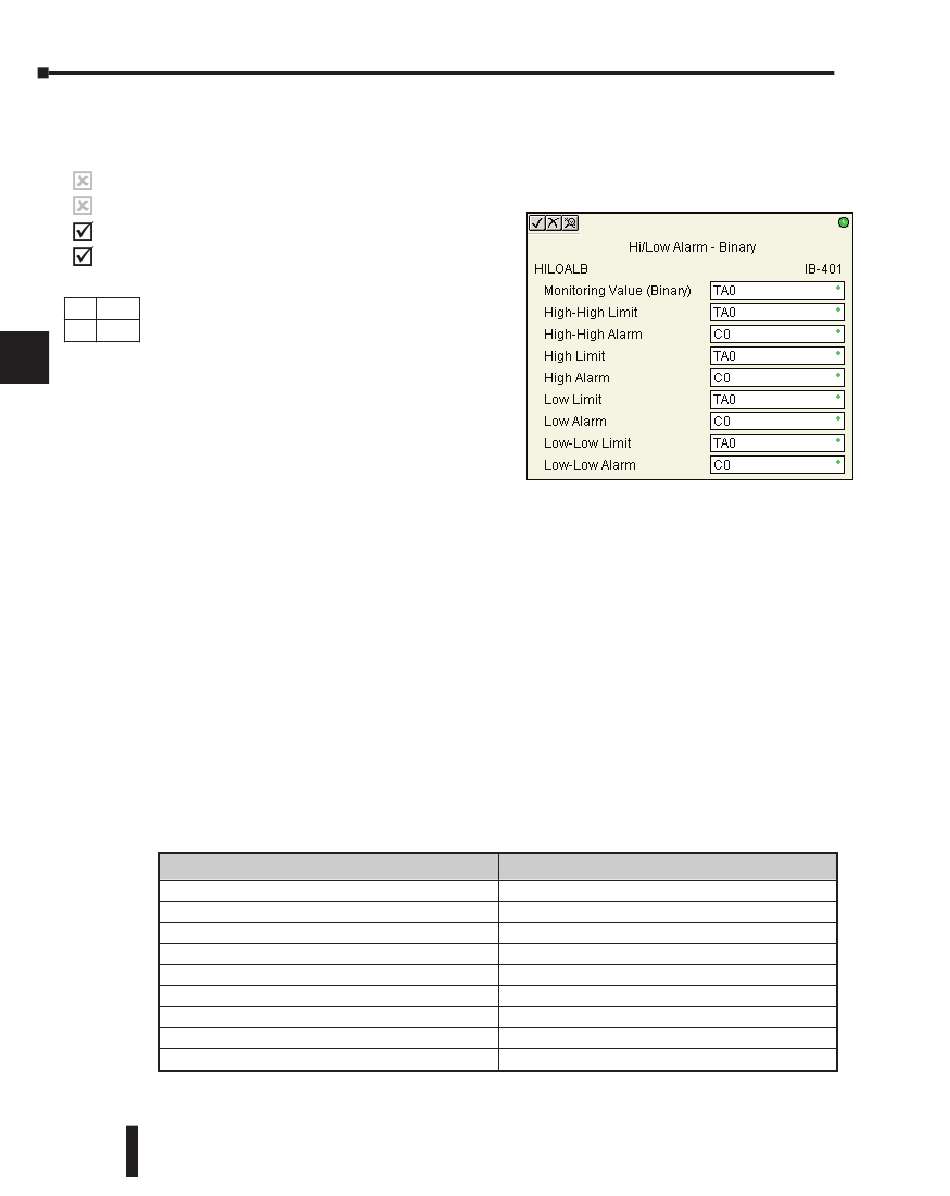

Hi/Low Alarm - Binary (HILOALB) (IB-401)
1
Hi/Low Alarm - Binary monitors a binary (decimal) V-memory location and sets four
possible alarm states, High-High, High, Low, and Low-Low whenever the IBox has power
230
2
flow. You enter the alarm thresholds as constant (K) decimal values (K0-K65535) and/or
240
binary (decimal) V-memory locations.
250-1
3
You must ensure that threshold limits are valid,
260
that is HH >= H > L >= LL. Note that when
the High-High or Low-Low alarm condition is
4
DS5 Used
true, that the High and Low alarms will also be
N/A
HPP
set, respectively. This means you may use the
5
same threshold limit and same alarm bit for the
High-High and the High alarms in case you
6
only need one "High" alarm. Also note that the
boundary conditions are inclusive. That is, if
7
the Low boundary is K50, and the Low-Low
boundary is K10, and if the Monitoring Value
equals 10, then the Low Alarm AND the Low-Low alarm will both be ON. If there is no
8
power flow to the IBox, then all alarm bits will be turned off regardless of the value of the
Monitoring Value parameter.
9
HILOALB Parameters
• Monitoring Value (Binary): specifies the V-memory location of the Binary value to be monitored
10
• High-High Limit: V-memory location or constant specifies the high-high alarm limit
• High-High Alarm: On when the high-high limit is reached
11
• High Limit: V-memory location or constant specifies the high alarm limit
• High Alarm: On when the high limit is reached
12
• Low Limit: V-memory location or constant specifies the low alarm limit
13
• Low Alarm: On when the low limit is reached
• Low-Low Limit: V-memory location or constant specifies the low-low alarm limit
14
• Low-Low Alarm: On when the low-low limit is reached
A
Monitoring Value (Binary) . . . . . . . . . . . . . . . . V
High-High Limit . . . . . . . . . . . . . . . . . . . . . . . V, K
B
High-High Alarm . . . . . . . . . . . X, Y, C, GX,GY, B
High Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . V, K
High Alarm . . . . . . . . . . . . . . . . X, Y, C, GX,GY, B
C
Low Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . V, K
Low Alarm . . . . . . . . . . . . . . . . X, Y, C, GX,GY,B
D
Low-Low Limit . . . . . . . . . . . . . . . . . . . . . . . V, K
Low-Low Alarm. . . . . . . . . . . . . X, Y, C, GX,GY, B
5–246
DL205 User Manual, 4th Edition, Rev. B
Parameter
DL205 Range
See DL205 V-memory map - Data Words
K0-65535; or see DL205 V-memory map - Data Words
See DL205 V-memory map
K0-65535; or see DL205 V-memory map - Data Words
See DL205 V-memory map
K0-65535; or see DL205 V-memory map - Data Words
See DL205 V-memory map
K0-65535; or see DL205 V-memory map - Data Words
See DL205 V-memory map
