Chapter 4: System Design and Configuration

Configure the DL250-1 Port 2 for Non-Sequence

Configuring port 2 on the DL250–1 for Non–Sequence enables the CPU to use the PRINT
1
instruction to print embedded text or text/data variable message from port 2. See the PRINT
230
instruction in chapter 5.
240
2

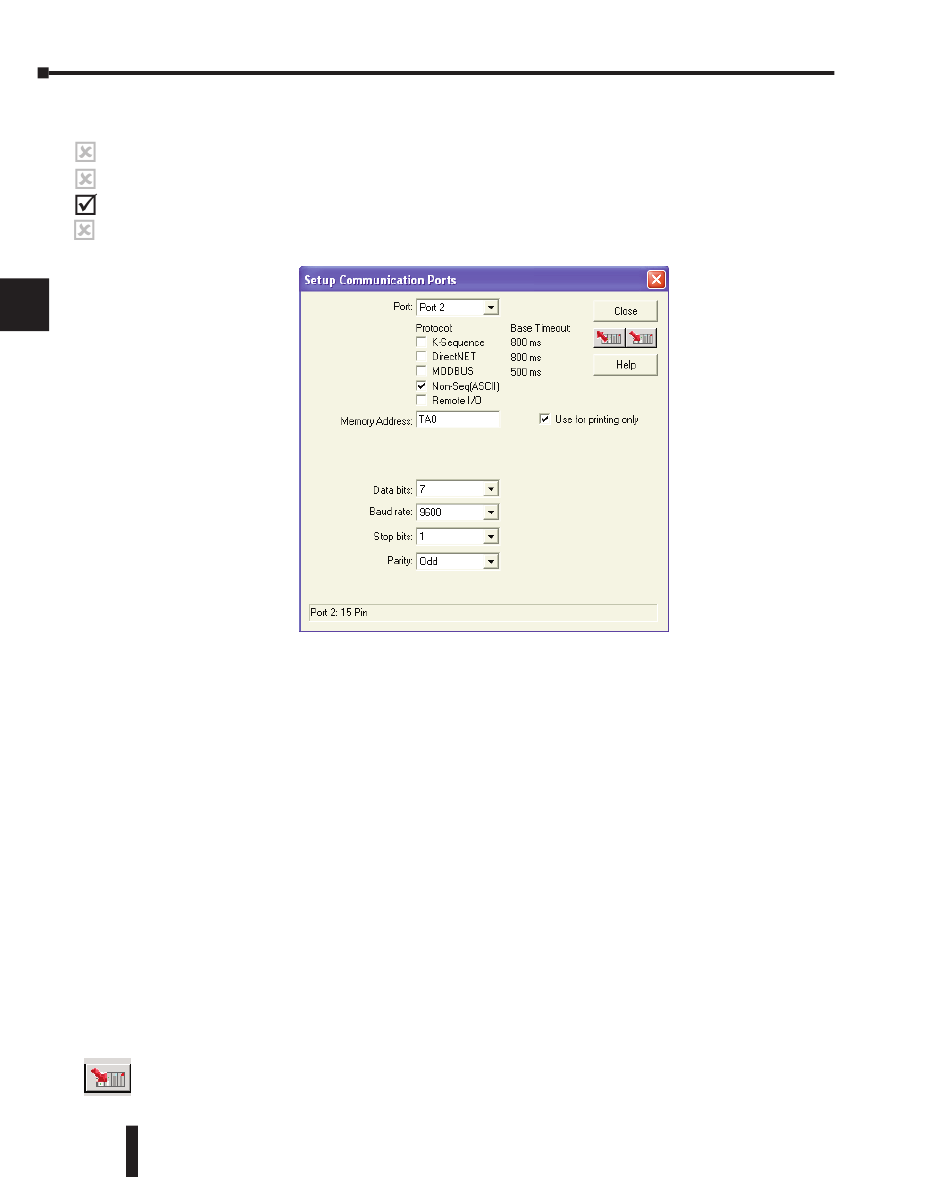

In DirectSOFT, choose the PLC menu, then "Setup Secondary Comm Port".
250-1
• Port: From the port number list box at the top, choose "Port 2".
260
3
• Protocol: Click the check box to the left of "Non–Sequence".
4
5
6
7
8
9
10
• Memory Address: Choose a V-memory address to use as the starting location for the port
11
setup parameters listed below. This location is the start of protocol memory buffer. It should
not be used for other purposes.
Buffer size = 2 + (Max receiving data size) / 2 or to allocate the maximum allowable space
12
buffer size = 66 Words (for example V2000-V2102).
• Use For Printing Only: Check the box to enable the port settings described below. Match
13
the settings to the connected device.
• Data Bits: Select either 7–bits or 8–bits to match the number of data bits specified for the
14
connected device.
• Baud Rate: The available baud rates include 300, 600, 900, 2400, 4800, 9600, 19200, and
A
38400 baud. Choose a higher baud rate initially, reverting to lower baud rates if you
experience data errors or noise problems on the network. Important: You must configure
the baud rates of all devices on the network to the same value. Refer to the appropriate
B
product manual for details.
• Stop Bits: Choose 1 or 2 stop bits to match the number of stop bits specified for the
C
connected device.
• Parity: Choose none, even, or odd parity for error checking. Be sure to match the parity
D
specified for the connected device.
Then click the button indicated to send the Port configuration to the CPU, and click Close.
