Chapter 5: Intelligent Box (IBox) Instructions

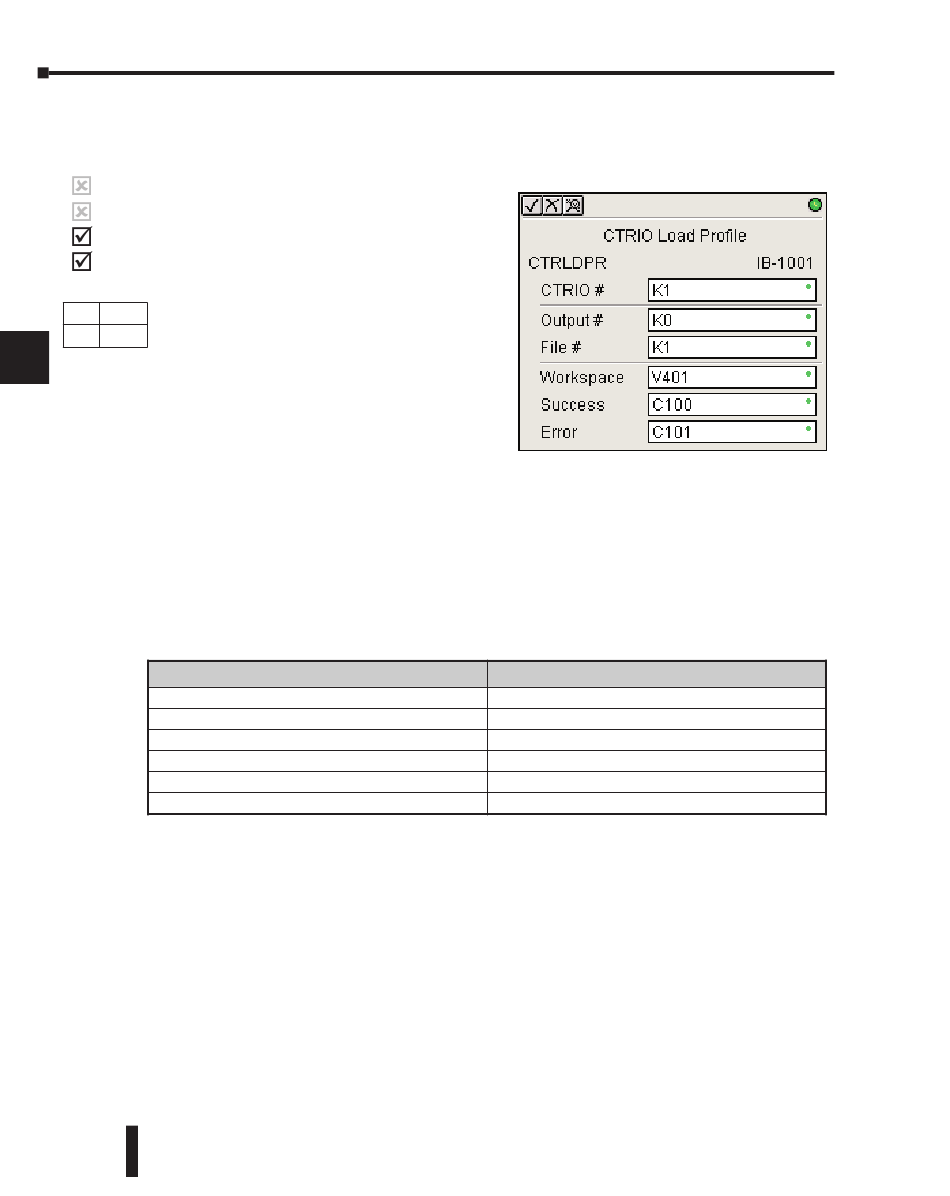

CTRIO Load Profile (CTRLDPR) (IB-1001)
1
CTRIO Load Profile loads a CTRIO Profile File to a CTRIO Output resource on a leading
edge transition to this IBox. This IBox will take more than one PLC scan to execute. Either
the Success or Error bit will turn on when the
230
2
command is complete. If the Error Bit is on,
240
you can use the CTRIO Read Error Code
250-1
3
(CTRRDER) IBox to get extended error
260
information.
4
The Workspace register is for internal use by
DS5 Used
this IBox instruction and MUST NOT be
N/A
HPP
used anywhere else in your program.
5
6
7
CTRLDPR Parameters
• CTRIO#: specifies a specific CTRIO module based on a user defined number (see CTRIO Config)
8
• Output#: specifies a CTRIO output to be used by the instruction
• File#: specifies a CTRIO profile File number to be loaded
9
• Workspace: specifies a V-memory location that will be used by the instruction
• Success: specifies a bit that will turn on once the instruction has successfully completed
10
• Error: specifies a bit that will turn on if the instruction does not complete successfully
11
CTRIO# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K
12
Output# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K
File# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V,K
Workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
13
Success . . . . . . . . . . . . . . . . . . . . X,Y,C,GX,GY,B
Error . . . . . . . . . . . . . . . . . . . . . . . X,Y,C,GX,GY,B
14
A
B
C
D
5–354
DL205 User Manual, 4th Edition, Rev. B
Parameter DL205 Range
K0-255
K0-3
K0-255; See DL205 V-memory map - Data Words
See DL205 V-memory map - Data Words
See DL205 V-memory map
See DL205 V-memory map
