Powering I/O Circuits with the Auxiliary Supply

In some cases, using the built-in auxiliary +24VDC supply can result in a cost savings for
your control system. It can power combined loads up to 300mA. Be careful not to exceed the
current rating of the supply. If you are the system designer for your application, you may be
able to select and design in field devices which can use the +24VDC auxiliary supply.
All AC powered and 125VDC DL205 bases feature the internal auxiliary supply. If input
devices AND output loads need +24VDC power, the auxiliary supply may be able to power

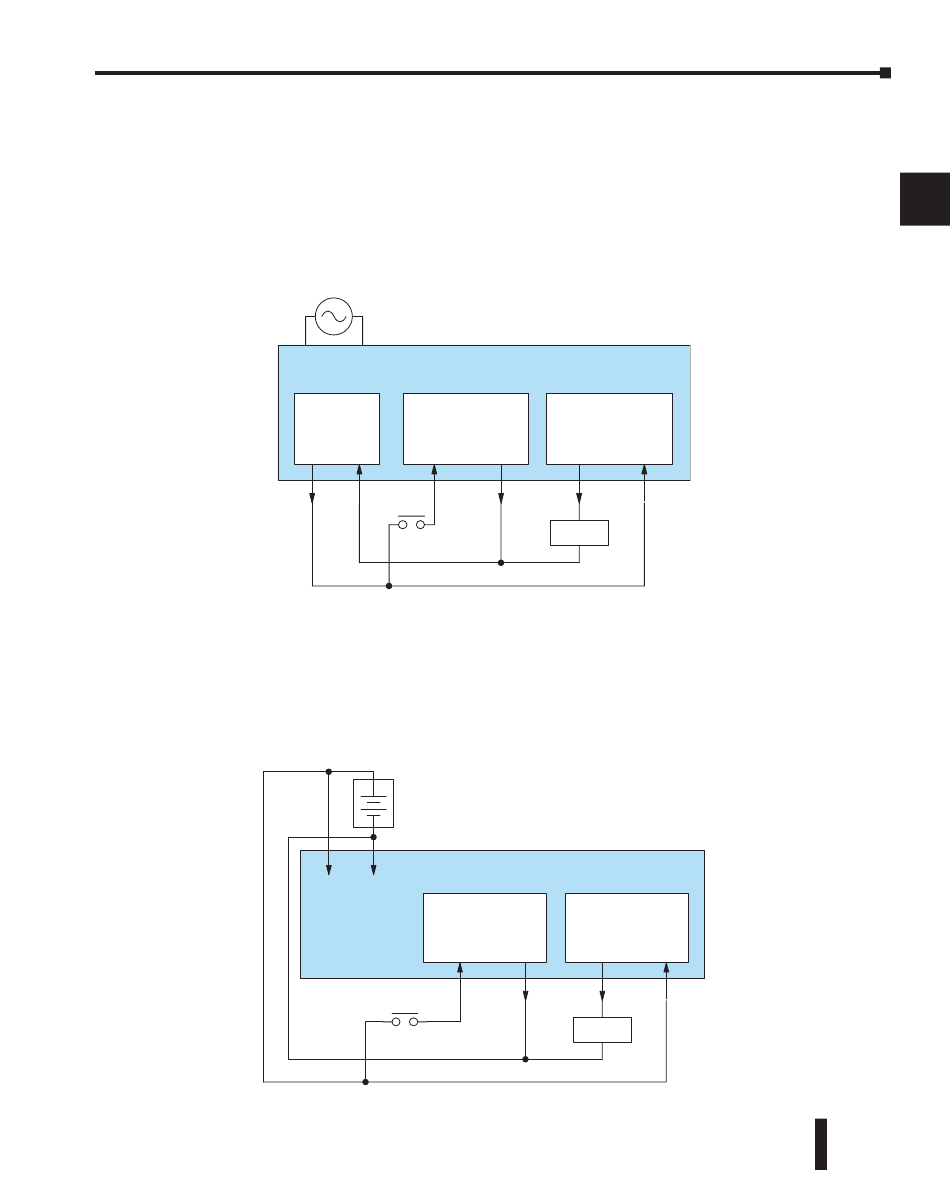

both circuits as shown in the following diagram.
Power Input
Auxiliary
+24VDC
+
The 12/24VDC powered DL205 bases are designed for application environments in which
low-voltage DC power is more readily available than AC. These include a wide range of
battery–powered applications, such as remotely-located control, in vehicles, portable
machines, etc. For this application type, all input devices and output loads typically use the
same DC power source. Typical wiring for DC-powered applications is shown in the
following diagram.
+
–
Chapter 2: Installation, Wiring and Specifications
AC Power or 125VDC Bases
DL205 PLC
Input Module
Supply Inputs Com.
–
+
DC Power
–
DL205 PLC
Power Input
Input Module
Inputs
DL205 User Manual, 4th Edition, Rev. B
Output Module
Outputs Com.
Loads
Output Module
Com. Outputs Com.
Loads
