Chapter 4: System Design and Configuration
Network Cabling
1

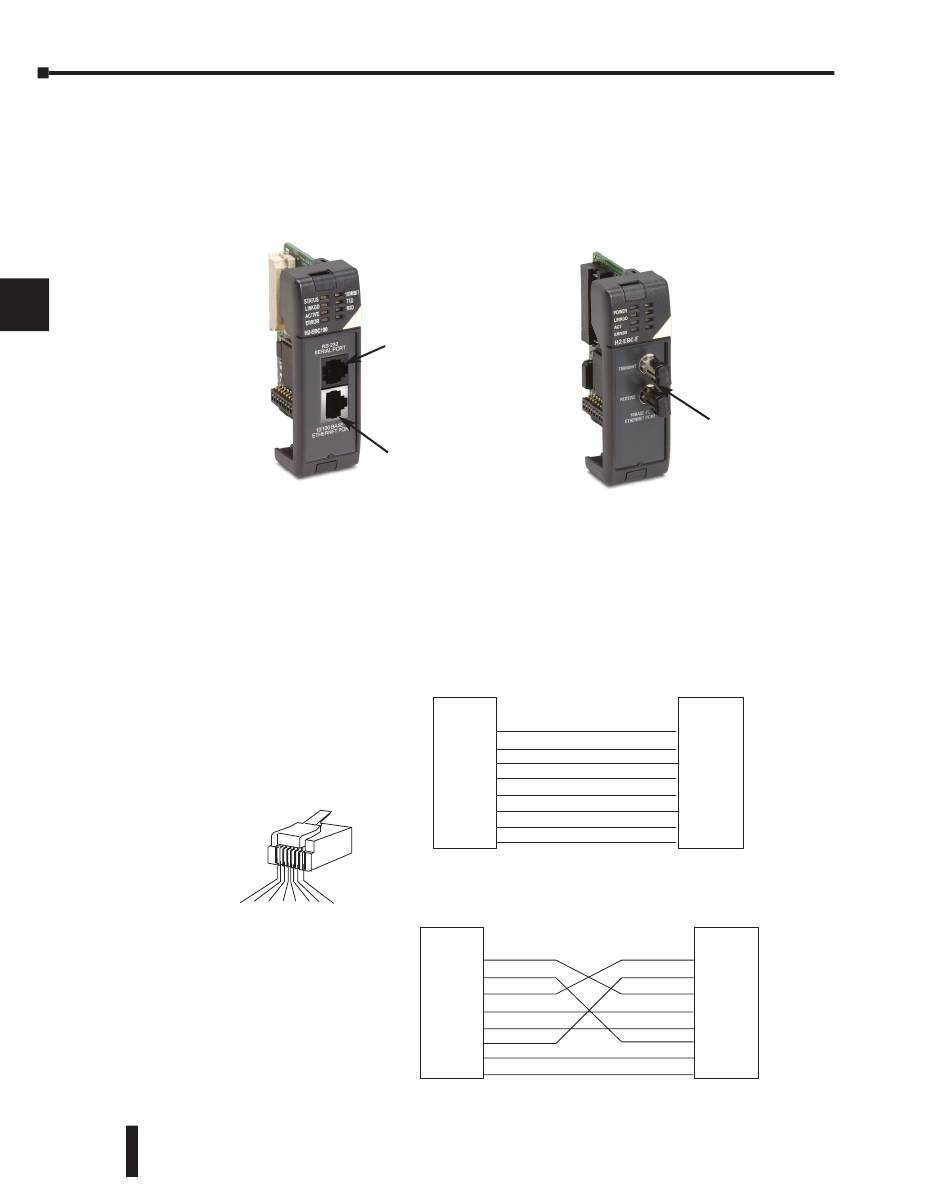

Of the two types of EBC modules available, one supports the 10/100BaseT standard and the
other one supports the 10BaseFL standard. The 10/100BaseT standard uses twisted pairs of
copper wire conductors and the 10BaseFL standard is used with fiber optic cabling.
2
3
4
5
6
7
8
The 10BaseT and 100BaseT EBCs have an eight-pin modular jack that accepts RJ45
connectors. UTP Category 5 (CAT5) cable is highly recommended for use with all Ethernet
10/100BaseT connections. For convenient and reliable networking, purchase commercially
9
manufactured cables which have the connectors already installed.
To connect an EBC, or a PC, to a hub or repeater, use a patch cable (sometimes called a
10
straight-through cable). The cable used to connect a PC directly to an EBC or to connect two
hubs is referred to as a crossover cable.
11
12
13
14
A
B
C
D
4–24
DL205 User Manual, 4th Edition, Rev. B
10/100BaseT
10/100BaseT
1 2 3 4 5 6 7 8
8-pin RJ45 Connector
(8P8C)
RJ12
Serial
Port
RS232
RJ45 for
10/100BaseT
Patch (Straight–through) Cable
OR/WHT
TD+ 1
OR
TD– 2
GRN/WHT
RD+ 3
BLU
4
BLU/WHT
5
GRN
RD– 6
BRN/WHT
7
BRN
8
RJ45
Crossover Cable
OR/WHT
TD+ 1
OR
TD– 2
GRN/WHT
RD+ 3
BLU
4
BLU/WHT
5
GRN
RD– 6
BRN/WHT
7
BRN
8
RJ45
ST-style
Bayonet
for
10BaseFL
OR/WHT
RD+
1
OR
2 RD–
GRN/WHT
TD+
3
BLU
4
BLU/WHT
5
GRN
6 TD–
BRN/WHT
7
BRN
8
RJ45
GRN/WHT
1 TD+
GRN
2 TD–
OR/WHT
3 RD+
BLU
4
BLU/WHT
5
OR
6 RD–
BRN/WHT
7
BRN
8
RJ45
