CTRRTLM Example (cont'd)

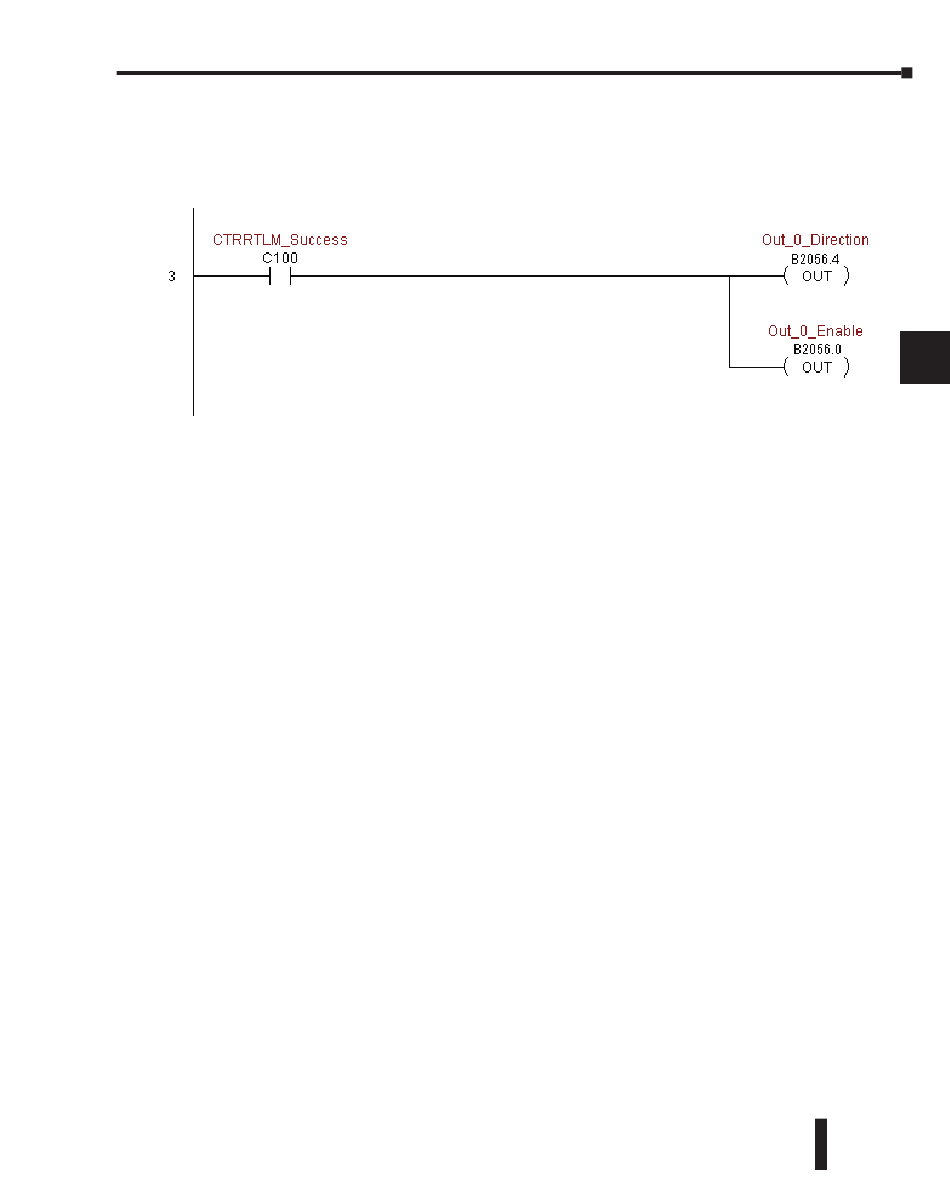

Rung 3: If the Run To Limit Mode parameters are OK, set the Direction Bit and Enable the
output.
