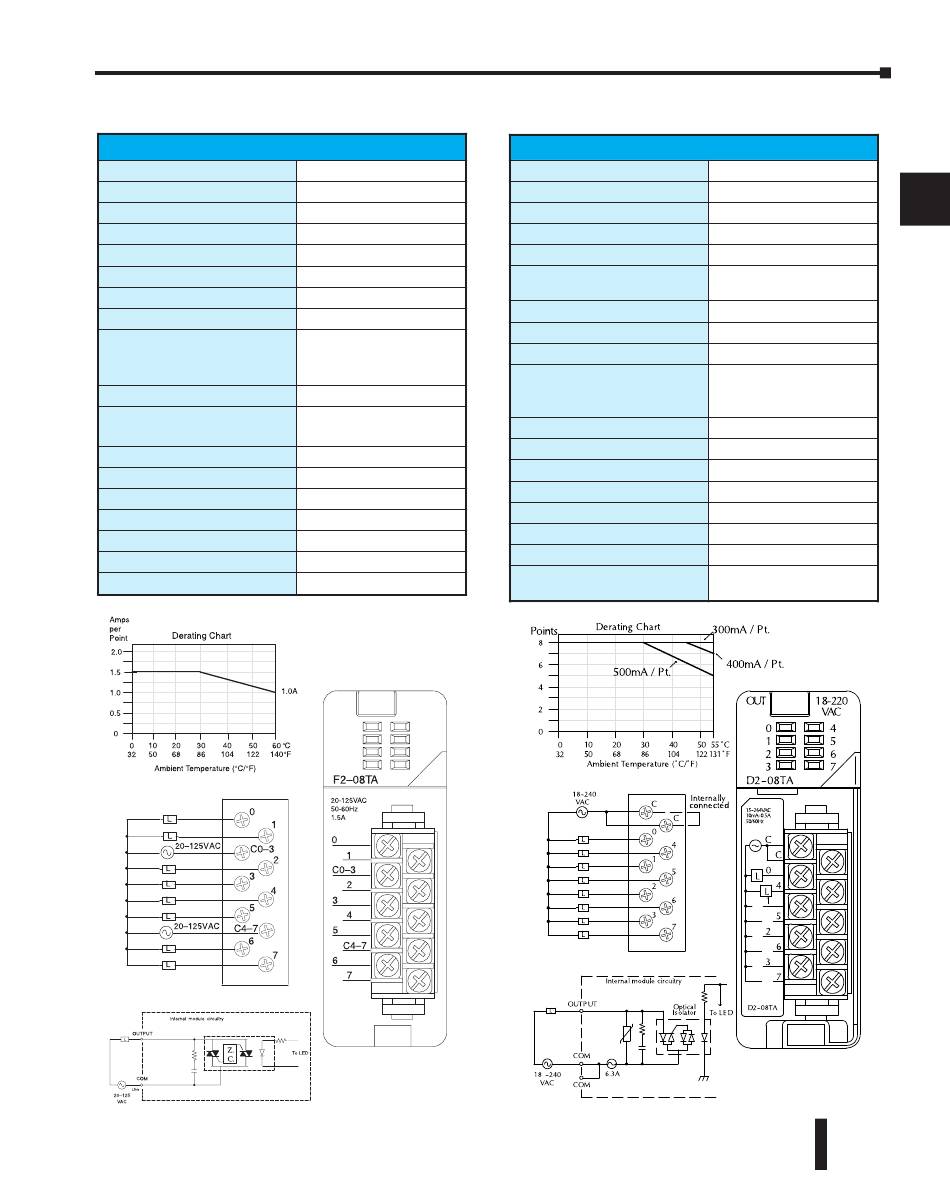

F2–08TA, AC Output
F2-08TA AC Output
Outputs per Module
Commons per Module
Output Type
Operating Voltage
Peak Voltage
ON Voltage Drop
AC Frequency
Minimum Load Current
Max Load Current
Max Leakage Current
Peak One Cycle Surge
Current
Base Power Required 5VDC
OFF to ON Response
ON to OFF Response
Terminal Type (included)
Status Indicator
Weight
Fuses
Chapter 2: Installation, Wiring and Specifications
8
2 (Isolated)
SSR (Triac with zero crossover)
24-140 VAC
140 VAC
1.6 V(rms) @ 1.5A
47 to 63 Hz
50 mA
1.5A / pt @ 30ºC
1.0A / pt @ 60ºC
4.0A / common; 8.0A / module
@ 60ºC
0.7 mA(rms)
15A
250 mA
0.5 ms - 1/2 cycle
0.5 ms - 1/2 cycle
Removable; D2-8IOCON
Logic side
3.5 oz.
None
D2–08TA, AC Output
D2-08TA AC Output
Outputs per Module
Commons per Module
Output Type
Operating Voltage
Peak Voltage
ON Voltage Drop
AC Frequency
Minimum Load Current
Max Load Current
Max Leakage Current
Max Inrush Current
Base Power Required 5VDC
OFF to ON Response
ON to OFF Response
Terminal Type (included)
Status Indicator
Weight
Fuses
DL205 User Manual, 4th Edition, Rev. B
8
1 (2 I/O terminal points)
SSR (Triac)
15-264 VAC
264 VAC
< 1.5 VAC (>0.1A)
< 3.0 VAC (<0.1A)
47 to 63 Hz
10 mA
0.5A/point; 4A/common
4 mA (264 VAC, 60 Hz)
1.2 mA (100 VAC, 60 Hz)
0.9 mA (100 VAC, 50 Hz)
10A for 10 ms
250 mA
1 ms
1 ms + 1/2 cycle
Removable; D2-8IOCON
Logic side
2.8 oz. (80g)
1 per common, 6.3A slow blow,
non-replaceable
2–43
