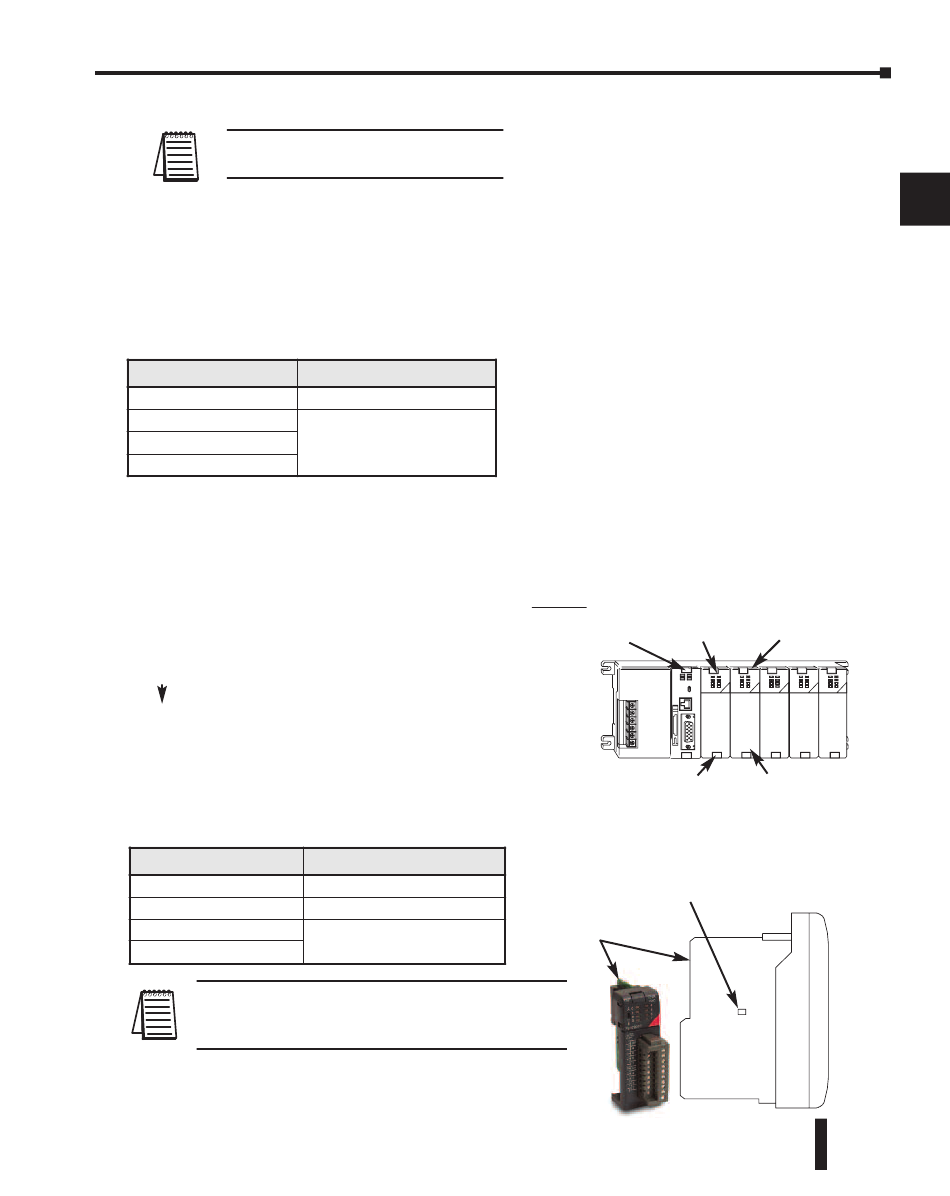

F2–16TD1(2)P, DC Output With Fault Protection
NOTE: Not supported in D2-230, D2-240
and D2-250 CPUs.
These modules detect the following fault status and
turn the related X bit(s) on.
1. Missing external 24VDC for the module
1
2. Open load
3. Over temperature (the output is shut down)
4. Over load current (the output is shut down)
Fault Status
X bit Fault Status Indication
Missing external 24VDC
All 16 X bits are on.
1
Open load
Only the X bit assigned to the
Over temperature
faulted output is on
Over load current
When these modules are installed, 16 X
bits are automatically assigned as the
fault status indicator. Each X bit
indicates the fault status of each output.
In this example, X10-X27 are assigned as the fault
status indicator.
X10: Fault status indicator for Y0
X11: Fault status indicator for Y1
X26: Fault status indicator for Y16
X27: Fault status indicator for Y17
The fault status indicators (X bits) can be reset by
performing the indicated operations in the
following table:
Fault Status
Missing external 24VDC
Apply external 24VDC
1
Connect the load.
Open load
Over temperature
Turn the output (Y bit) off or
power cycle the PLC
Over load current
NOTE 1: Open load detection can be disabled by
removing the jumper switch J6 on the module PC
board.
Continued on next two pages.
Chapter 2: Installation, Wiring and Specifications
Example
D2-250-1 or D2-260
Operation
DL205 User Manual, 4th Edition, Rev. B
D2-08ND3
Slot 0 Slot 1 Slot 2 Slot 3 Slot 4
X0 - X7
Jumper Switch J6
PC Board
1
2
3
4
5
6
7
8
9
F2-16TD1P
10
or
F2-16TD2P
11
12
13
X10 - X27
Y0 - Y17
14
A
B
C
D
2–39
