ONDTMR Example

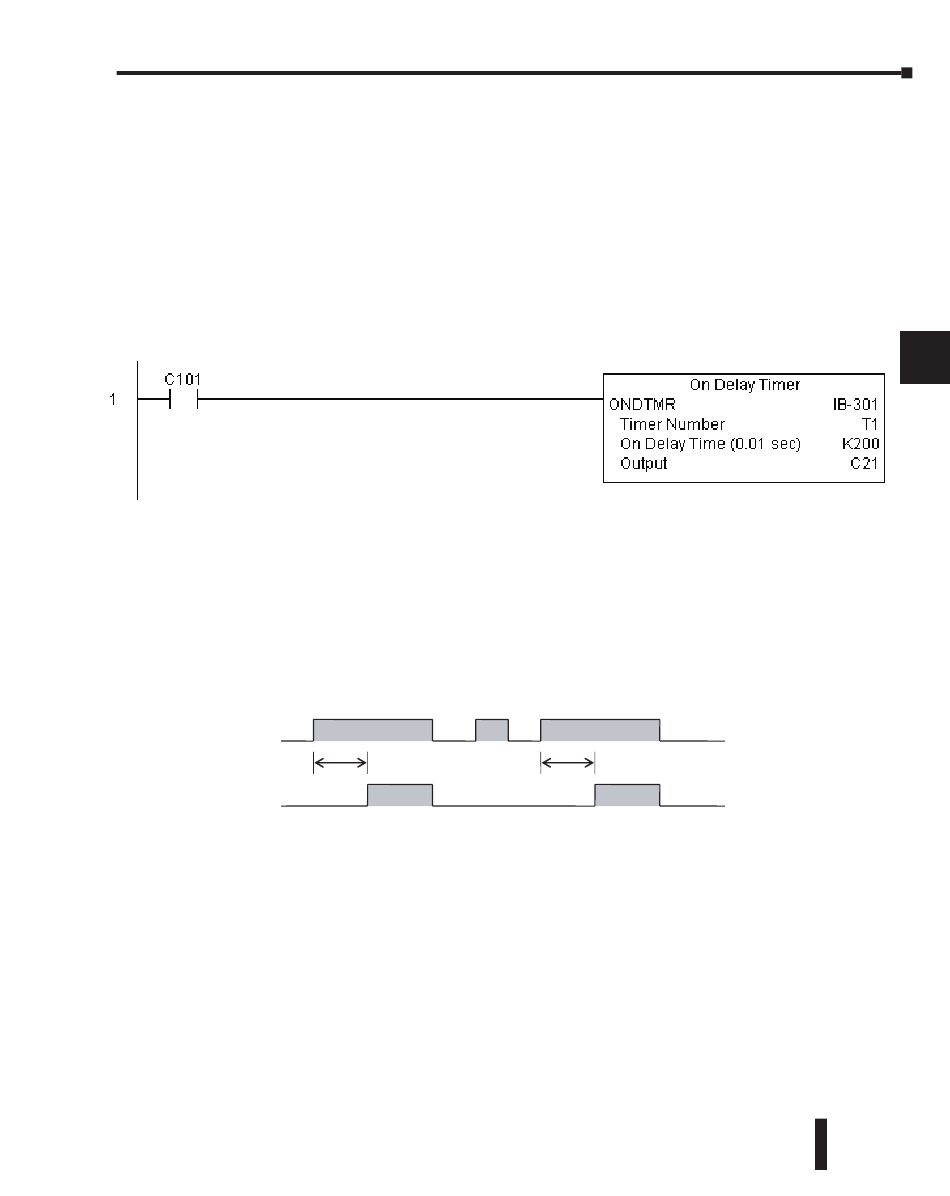

In the following example, the ONDTMR instruction is used to delay the "turning on" of
output C21. Timer 1 (T1) is set to 2 seconds, the "on-delay" period.
When C101 turns on, C21 is delayed turning on by 2 seconds. When C101 turns off, C21
turns off imediately.
Example timing diagram
C101
C21
Chapter 5: Intelligent Box (IBox) Instructions
2 sec
DL205 User Manual, 4th Edition, Rev. B
2 sec
