Chapter 3: CPU Specifications and Operations

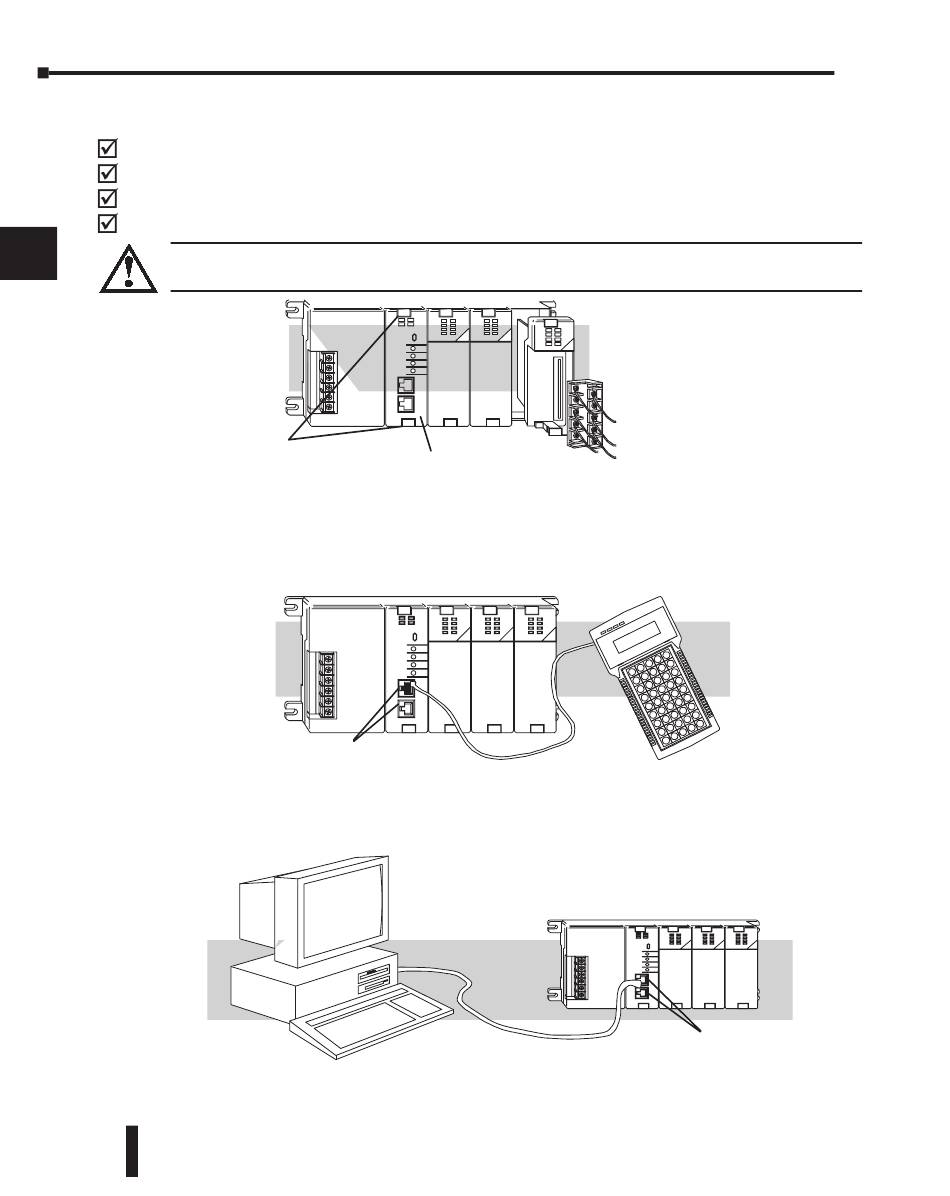

Installing the CPU

1
The CPU must be installed in the first slot in the base (closest to the power supply). You
230
cannot install the CPU in any other slot. When inserting the CPU into the base, align the
240
PC board with the grooves on the top and bottom of the base. Push the CPU straight into
2
250-1
the base until it is firmly seated in the backplane connector. Use the retaining clips to secure
260
the CPU to the base.
3
WARNING: To minimize the risk of electrical shock, personal injury, or equipment damage, always
disconnect the system power before installing or removing any system component.
4
5
6
Retaining Clips
7

Connecting the Programming Devices

8
The Handheld programmer is connected to the CPU with a handheld programmer cable.
(You can connect the Handheld to either port on a DL240 CPU). The handheld programmer
is shipped with a cable. The cable is approximately 6.5 feet (200 cm).
9
10
11
12
13
If you are using a Personal Computer with the DirectSOFT programming package, you can
use either the top or bottom port.
14
A
B
C
D
3–10
DL205 User Manual, 4th Edition, Rev. B
CPU must reside in first slot!
Connect Handheld to either Port
Connect PC to either Port
