Chapter 5: Intelligent Box (IBox) Instructions
Analog Input Module Pointer Setup (ANLGIN) (IB-460)
1
Analog Input Module Pointer Setup generates the logic to configure the pointer method for
one analog input module on the first PLC scan following a Program to Run transition.
230
2
This IBox determines the data format
240
and Pointer addresses based on the
250-1
CPU type, the Base#, and the Slot#.
3
260
The Input Data Address is the starting
location in user V-memory where the
4
DS5 Used
analog input data values will be stored,
N/A
HPP
one location for each input channel
5
enabled.
Since this logic only executes on the
first scan, this IBox cannot have any
6
input logic.
7

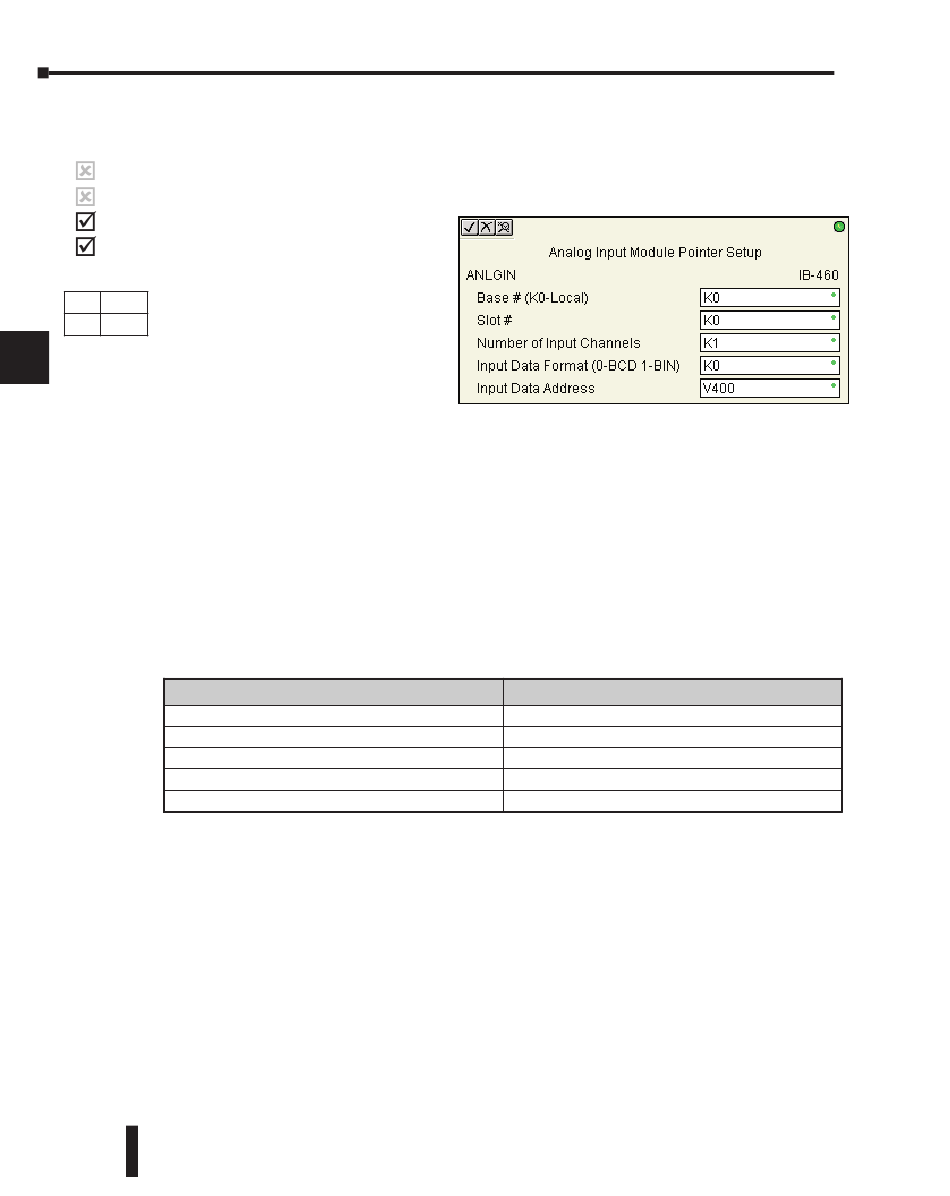

ANLGIN Parameters
• Base # (K0-Local): specifies which base the analog module is in
8
• Slot #: specifies which PLC slot is occupied by the analog module
• Number of Input Channels: specifies the number of input channels to scan
9
• Input Data Format (0-BCD 1-BIN): specifies the analog input data format (BCD or Binary) - the
binary format may be used for displaying data on some OI panels
10
• Input Data Address: specifies the starting V-memory location that will be used to store the analog
input data
11
Base # (K0-Local) . . . . . . . . . . . . . . . . . . . . . . . K
12
Slot # . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K
Number of Input Channels . . . . . . . . . . . . . . . . K
13
Input Data Format (0-BCD 1-BIN) . . . . . . . . . . . K
Input Data Address . . . . . . . . . . . . . . . . . . . . . . V
14
A
B
C
D
5–234
DL205 User Manual, 4th Edition, Rev. B
Parameter DL205 Range
K0-3
K0-7
K1-8
BCD: K0; Binary: K1
See DL205 V-memory map - Data Words
