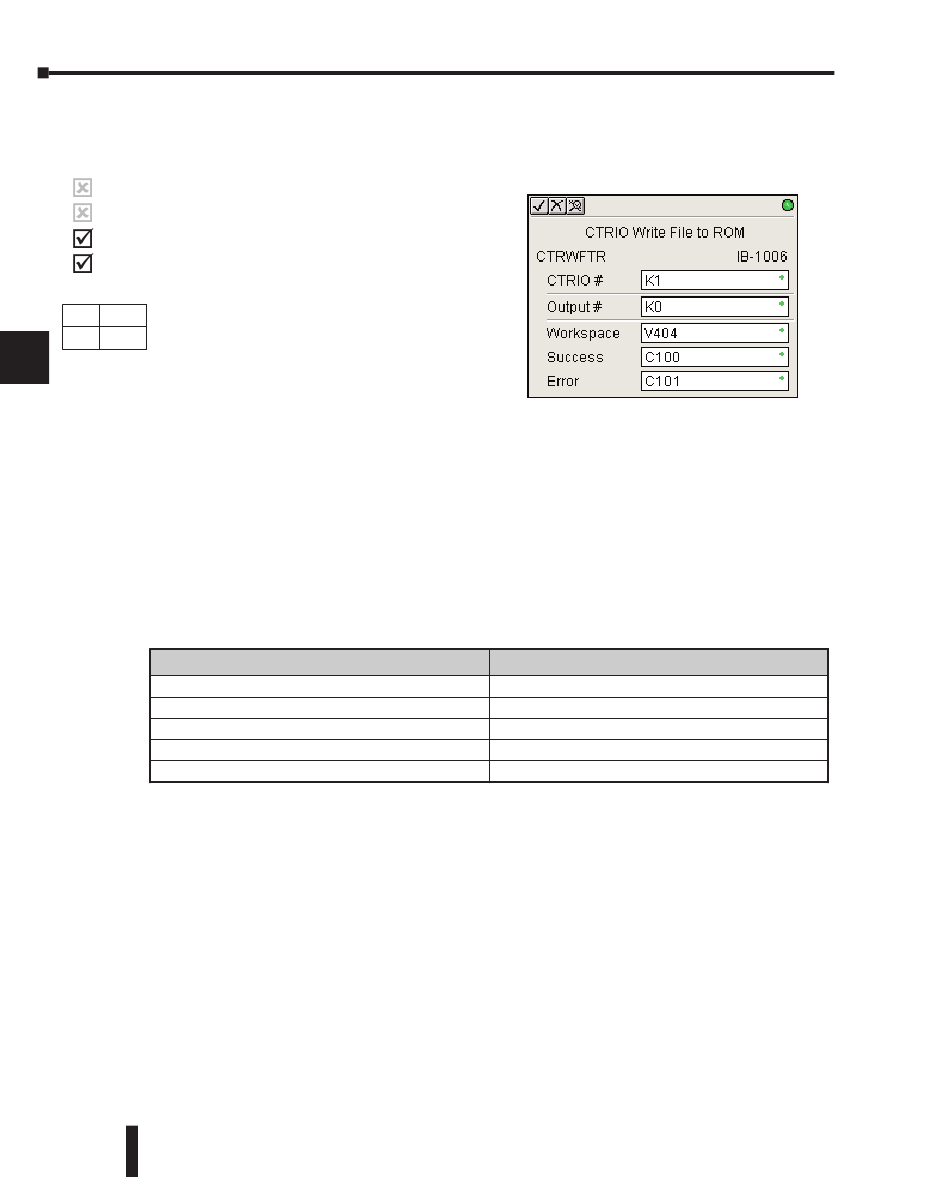

CTRIO Write File to ROM (CTRWFTR) (IB-1006)
1
CTRIO Write File to ROM writes the runtime changes made to a loaded CTRIO Preset
Table back to Flash ROM on a leading edge transition to this IBox. This IBox will take more
2
230
than one PLC scan to execute. Either the
240 Success or Error bit will turn on when the
command is complete. If the Error Bit is on,
250-1
3
you can use the CTRIO Read Error Code
260
(CTRRDER) IBox to get extended error
4
information.
DS5 Used
N/A
HPP
The Workspace register is for internal use by
5
this IBox instruction and MUST NOT be
used anywhere else in your program.
6
CTRWFTR Parameters
7
• CTRIO#: specifies a specific CTRIO module based on a user defined number (see CTRIO Config
Ibox)
8
• Output#: specifies a CTRIO output to be used by the instruction
• Workspace: specifies a V-memory location that will be used by the instruction
9
• Success: specifies a bit that will turn on once the instruction has successfully completed
• Error: specifies a bit that will turn on if the instruction does not complete successfully
10
11
CTRIO# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K
Output# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K
12
Workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
Success . . . . . . . . . . . . . . . . . . . . X,Y,C,GX,GY,B
13
Error . . . . . . . . . . . . . . . . . . . . . . . X,Y,C,GX,GY,B
14
A
B
C
D
5–368
DL205 User Manual, 4th Edition, Rev. B
Parameter DL205 Range
K0-255
K0-3
See DL205 V-memory map - Data Words
See DL205 V-memory map
See DL205 V-memory map
