ECIPSUP Example
Rung 1: The ECOM100 Config IBox is responsible for coordination/interlocking of all
ECOM100 type IBoxes for one specific ECOM100 module. Tag the ECOM100 in slot 1 as
ECOM100# K0. All other ECxxxx IBoxes refer to this module # as K0. If you need to move
the module in the base to a different slot, then you only need to change this one IBox. V400
is used as a global result status register for the other ECxxxx IBoxes using this specific
ECOM100 module. V401 is used to coordinate/interlock the logic in all of the other ECxxxx
IBoxes using this specific ECOM100 module. V402-V502 is a common 130 byte buffer
available for use by the other ECxxxx IBoxes using this specific ECOM100 module.
1
NOTE: An ECOM100 IBox instruction is used without a permissive contact. The top line will be identified in
BOLD italics, and the instruction name and ID will be in BOLD characters.

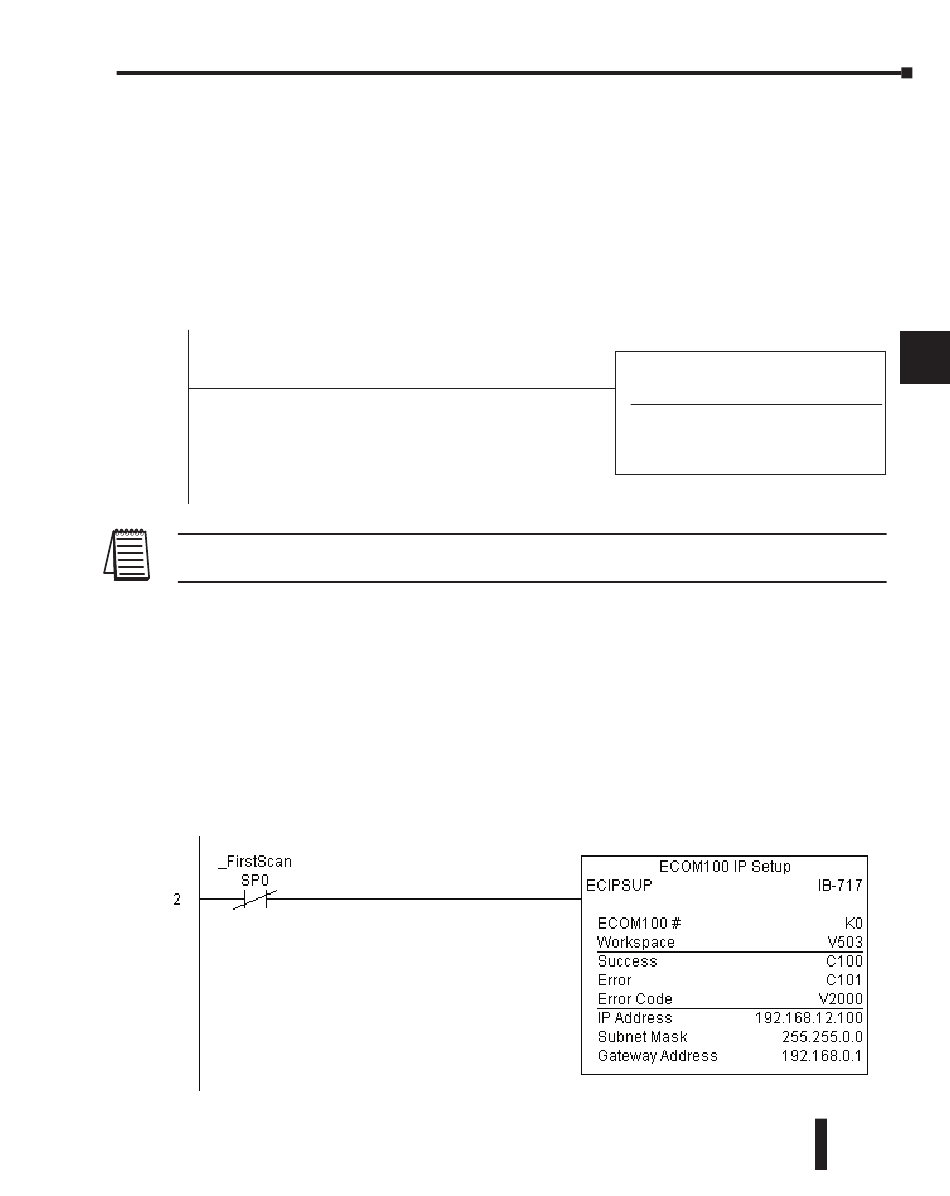

Rung 2: On the 2nd scan, configure all of the TCP/IP parameters in the ECOM100:
IP Address:
Subnet Mask:
Gateway Address: 192.168.0.1
The ECIPSUP is leading edge triggered, not power-flow driven (similar to a counter input
leg). The command to write the TCP/IP configuration parameters will be sent to the
ECOM100 whenever the power flow into the IBox goes from OFF to ON.
If successful, turn on C100. If there is a failure, turn on C101. If it fails, you can look at
V2000 for the specific error code.
