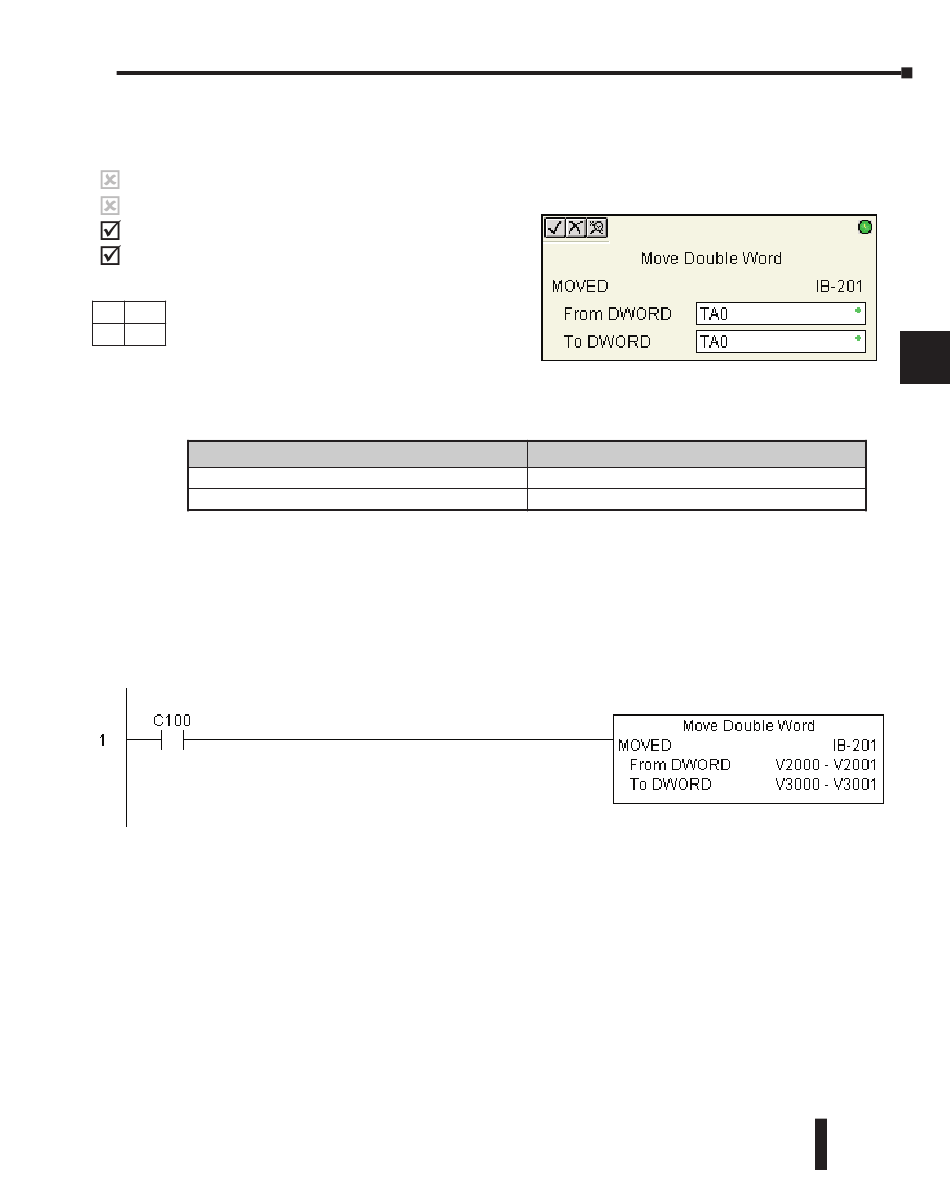

Move Double Word (MOVED) (IB-201)
Move Double Word moves (copies) a double word to two consecutive memory locations
directly or indirectly via a pointer, either as a double HEX constant, from a double memory
230
location, or indirectly through a pointer to a
double memory location.
240
250-1
260
MOVED Parameters
• From DWORD: specifies the double word
that will be moved to another location
DS5 Used
N/A
HPP • To DWORD: specifies the location where the
"From DWORD" will be moved to
From DWORD . . . . . . . . . . . . . . . . . . . . . . V,P,K
To DWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . V,P
MOVED Example
In the following example, the MOVED instruction is used to move 32 bits of data from
V2000 and V2001 to V3000 and V3001 when C100 turns on.
Chapter 5: Intelligent Box (IBox) Instructions
Parameter
DL205 User Manual, 4th Edition, Rev. B
DL205 Range
K0-FFFFFFFF; See DL205 V-memory map - Data Words
See DL205 V-memory map - Data Words
