Chapter 5: Standard RLL Instructions - ASCII
1
2
3

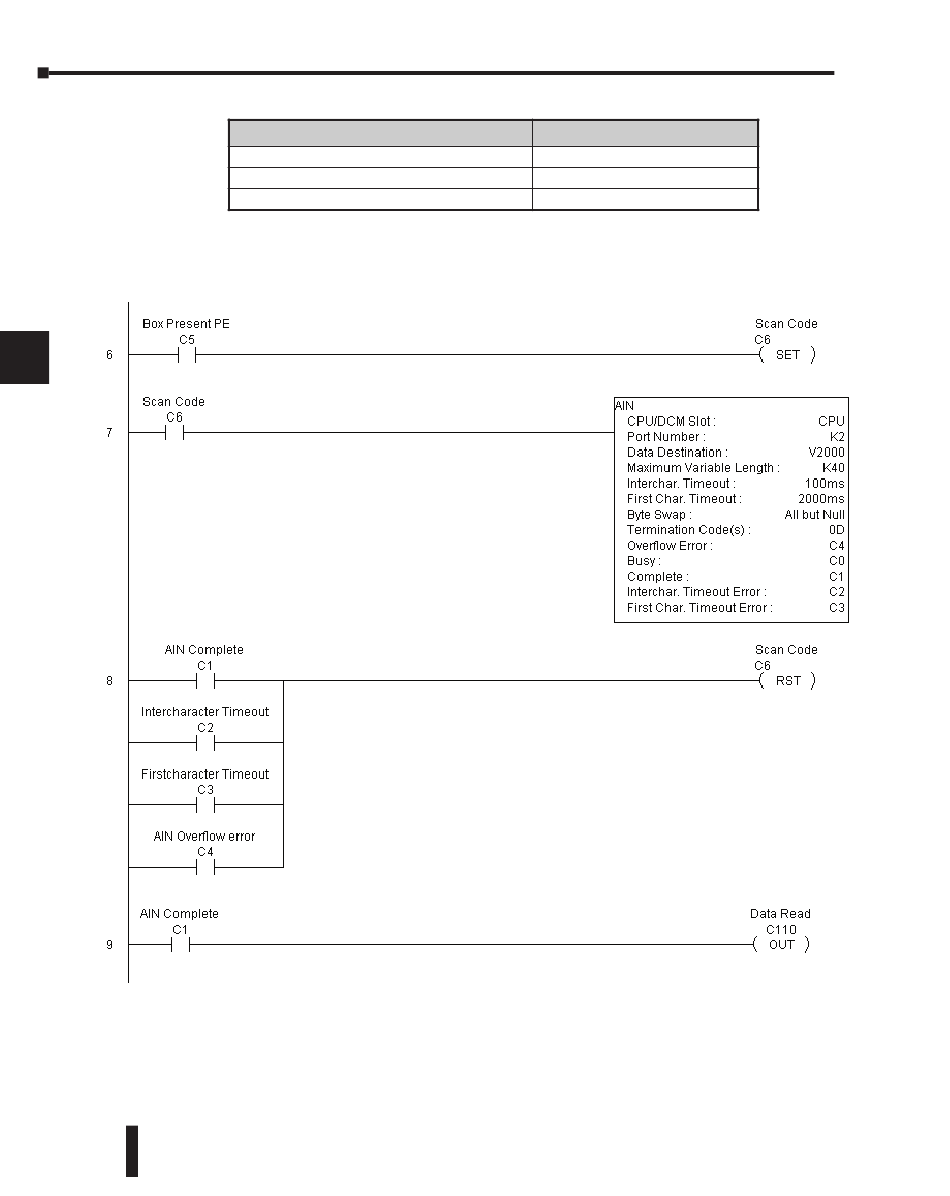

AIN Variable Length Example
AIN Variable Length example used to read barcodes on boxes (PE = photoelectric sensor).
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
5–216
DL205 User Manual, 4th Edition, Rev. B
Parameter
Data Destination
Max. Variable Length
Bits: Busy, Complete, Timeout Error, Overflow
DL260 Range
All V-memory (See page 3 - 56)
K1-128
C0-3777
