Chapter 5: Intelligent Box (IBox) Instructions
ECEMRDS Example
1

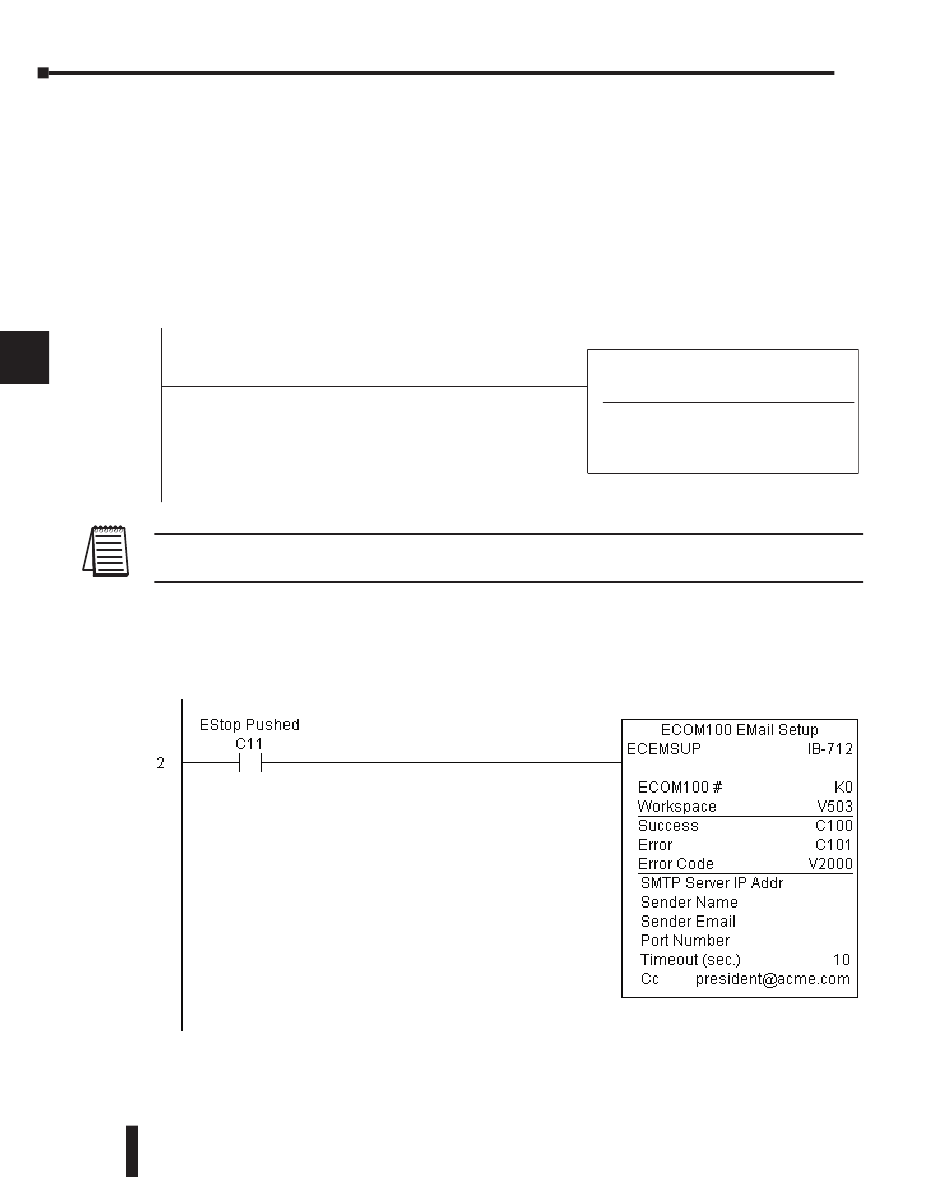

Rung 1: The ECOM100 Config IBox is responsible for coordination/interlocking of all
ECOM100 type IBoxes for one specific ECOM100 module. Tag the ECOM100 in slot 1 as
ECOM100# K0. All other ECxxxx IBoxes refer to this module # as K0. If you need to move
2
the module in the base to a different slot, then you only need to change this one IBox. V400
is used as a global result status register for the other ECxxxx IBoxes using this specific
3
ECOM100 module.V401 is used to coordinate/interlock the logic in all of the other ECxxxx
IBoxes using this specific ECOM100 module. V402-V502 is a common 130 byte buffer
available for use by the other ECxxxx IBoxes using this specific ECOM100 module.
4
5
1
6
7
8
NOTE: An ECOM100 IBox instruction is used without a permissive contact. The top line will be identified in
9
BOLD italics, and the instruction name and ID will be in BOLD characters.
Rung 2: Whenever an EStop is pushed, ensure that the president of the company gets copies
10
of all Emails being sent.
The ECOM100 EMail Setup IBox allows you to set/change the SMTP Email settings stored
11
in the ECOM100.
12
13
14
A
B
C
D
(example continued on next page)
5–284
DL205 User Manual, 4th Edition, Rev. B
ECOM100 Config
ECOM100
ECOM100#
Slot
Status
Workspace
Msg Buffer (65 WORDs)
IB-710
K0
K1
V400
V401
V402-502
