Chapter 2: Installation, Wiring and Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
5-15VDC
Source
14
A
5-15VDC
Source
B
5-15VDC
C
Source
D
5-15VDC
Source
2–32
DL205 User Manual, 4th Edition, Rev. B

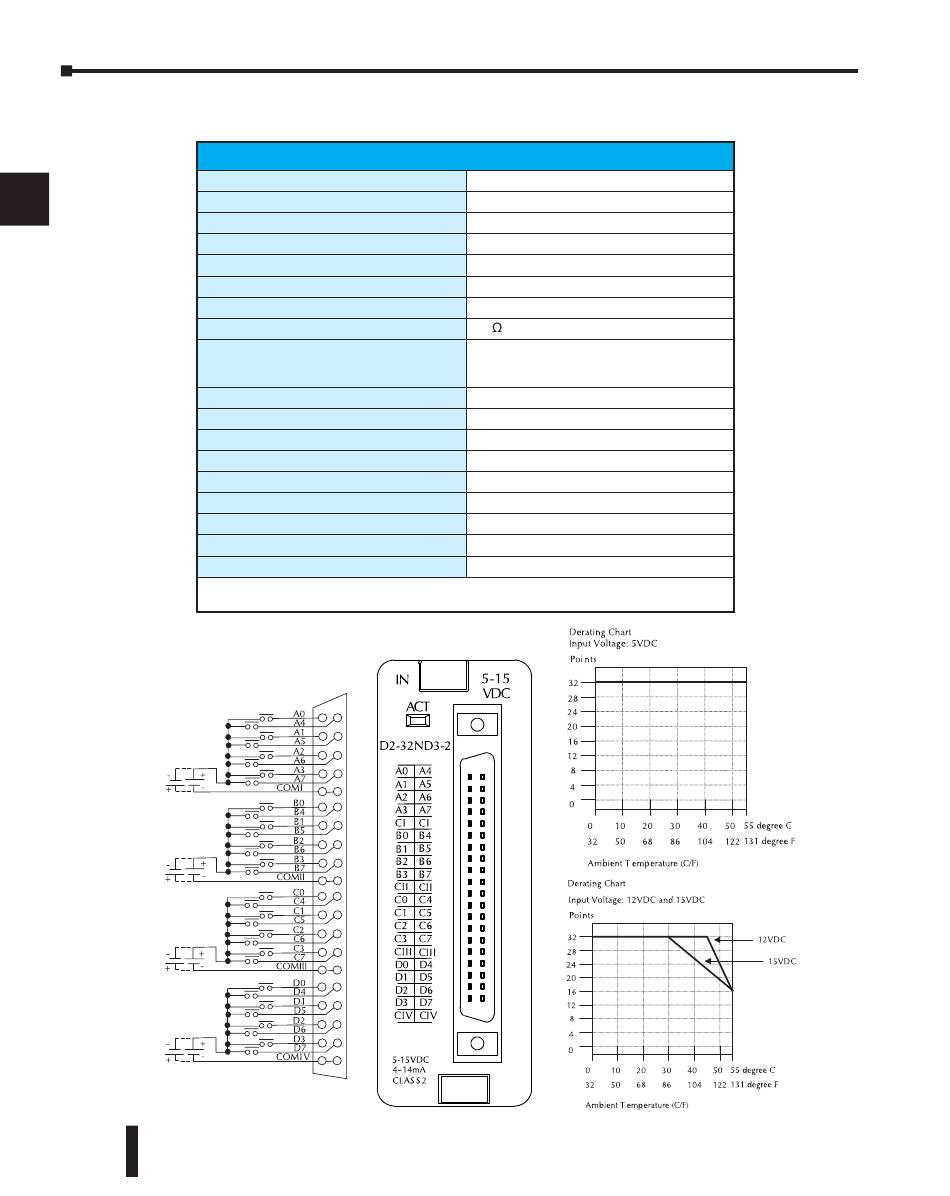

D2–32ND3–2, DC Input
Inputs per Module
Commons per Module
Input Voltage Range
Peak Voltage
ON Voltage Level
OFF Voltage Level
AC Frequency
Input Impedance
Input Current
Maximum Input Current
Minimum ON Current
Maximum OFF Current
Base Power Required 5VDC
OFF to ON Response
ON to OFF Response
Terminal Type (not included)
Status Indicator
Weight
1
Connector sold separately.
See Terminal Blocks and Wiring for wiring options.
Sink
Sink
Sink
Sink
D2-32ND3-2 DC Input
32 (Sink/Source)
4 isolated (8 I/O terminal points / com)
4.50 to 15.6 VDC min. to max.
16 VDC
4 VDC minimum
2 VDC maximum
N/A
1.0 k @ 5-15 VDC
4 mA @ 5 VDC
11 mA @ 12 VDC
14 mA @ 15 VDC
16 mA @ 15.6 VDC
3 mA
0.5 mA
25 mA
3 to 9 ms
3 to 9 ms
Removable 40-pin connector
Module activity LED
2.1 oz (60 g)
1
