Chapter 5: Standard RLL Instructions - Program Control

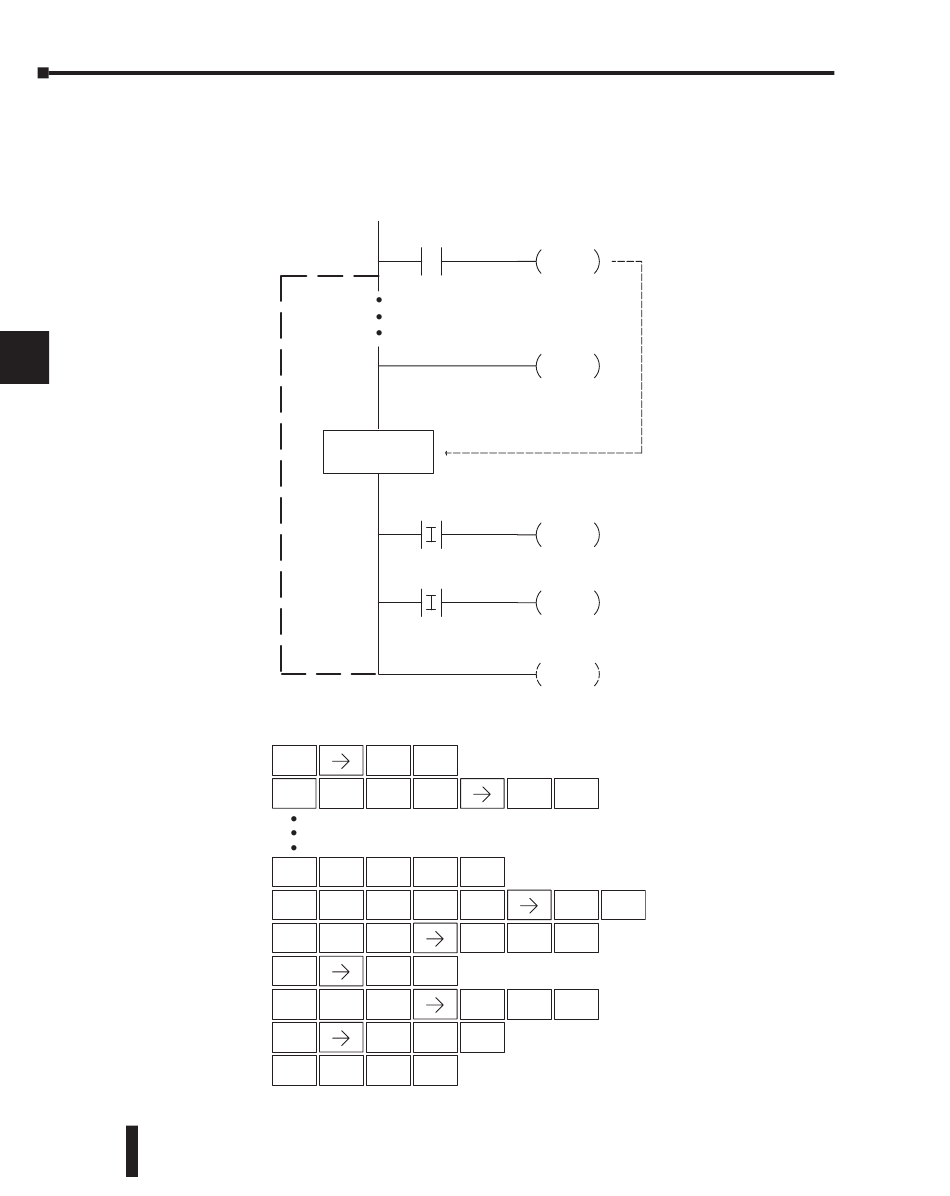

In the following example, when X1 is on, Subroutine K3 will be called. The CPU will jump
1 to the Subroutine Label K3 and the ladder logic in the subroutine will be executed. The CPU
will return to the main body of the program after the RT instruction is executed.
