Chapter 5: Intelligent Box (IBox) Instructions
Move Single Word (MOVEW) (IB-200)
1
Move Single Word moves (copies) a word to a memory location directly or indirectly via a
pointer, either as a HEX constant, from a memory location, or indirectly through a pointer.
230
2
240
MOVEW Parameters
250-1
3
• From WORD: specifies the word that will be
260
moved to another location
• To WORD: specifies the location where the
4
DS5 Used
"From WORD" will be moved to
N/A
HPP
5
6
7
From WORD . . . . . . . . . . . . . . . . . . . . . . . . V,P,K
To WORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . V,P
8
9

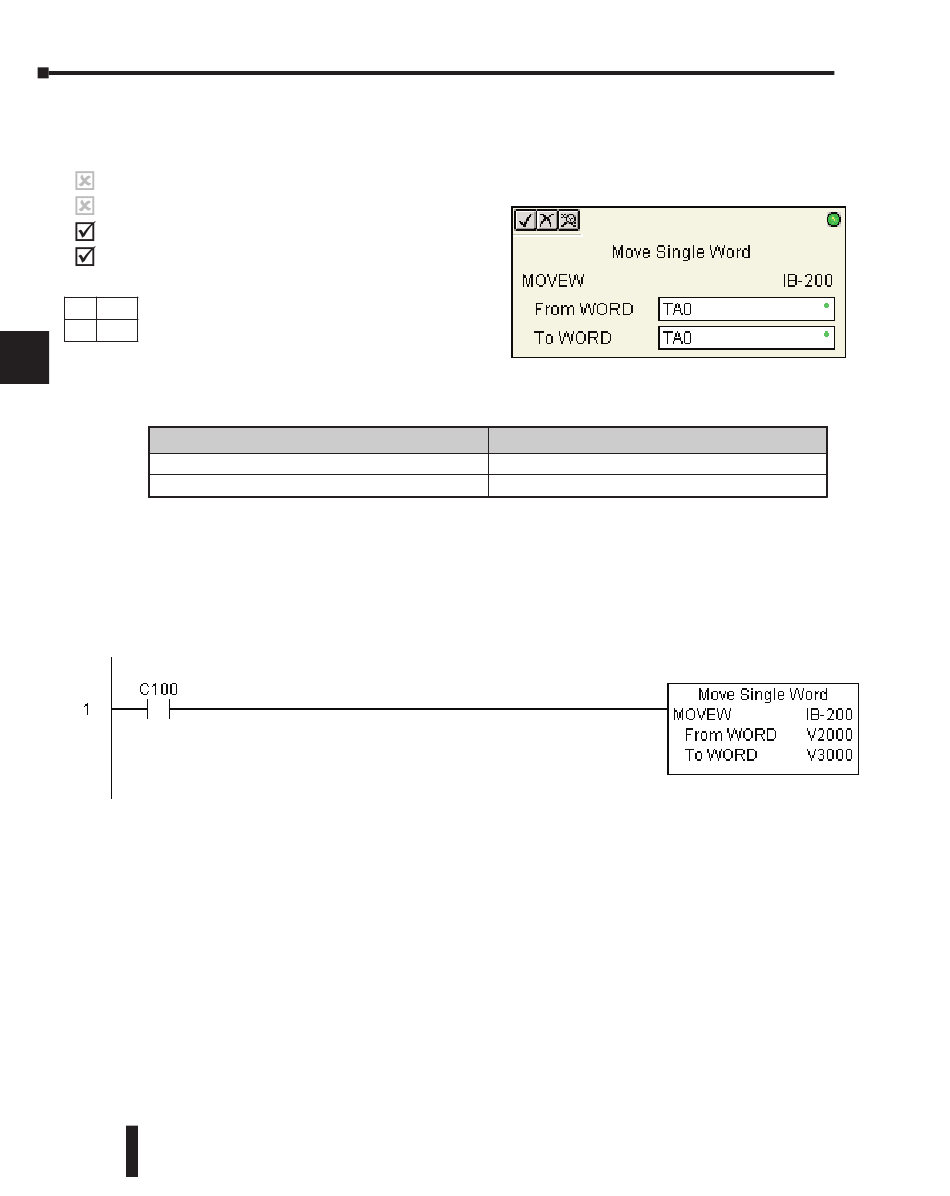

MOVEW Example
In the following example, the MOVEW instruction is used to move 16 bits of data from
10
V2000 to V3000 when C100 turns on.
11
12
13
14
A
B
C
D
5–254
DL205 User Manual, 4th Edition, Rev. B
Parameter DL205 Range
K0-FFFF; See DL205 V-memory map - Data Words
See DL205 V-memory map - Data Words
