Or (OR)
The Or instruction is a 16-bit instruction that logically
230
ORs the value in the lower 16 bits of the accumulator with
240
a specified V-memory location (Aaaa). The result resides in
250-1
the accumulator. The discrete status flag indicates if the
260 result of the Or is zero.
DS Used
Operand Data Type
HPP Used
V-memory
Pointer
Discrete Bit Flags
SP63
NOTE: The status flags are only valid until another instruction that uses the same flags is executed.

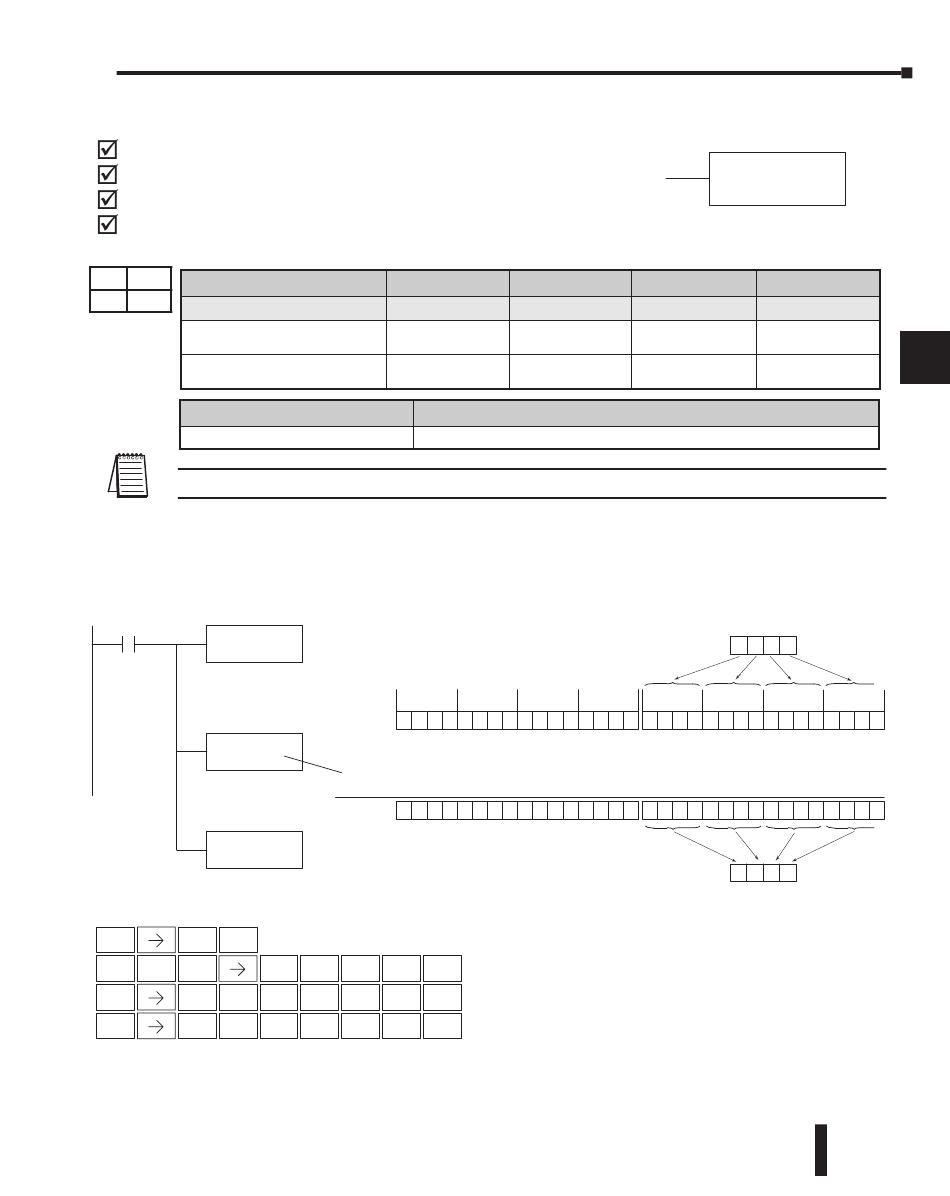

In the following example, when X1 is on, the value in V2000 will be loaded into the
accumulator using the Load instruction. The value in the accumulator is ored with V2006
using the Or instruction. The value in the lower 16 bits of the accumulator are output to
V2010 using the Out instruction.
DirectSOFT
X1
LD
V2000
Load the value in V2000 into
the lower 16 bits of the
accumulator
OR
V2006
Or the value in the
accumulator with
the value in V2006
OUT
V2010
Copy the value in the lower
16 bits of the accumulator to
V2010
Handheld Programmer Keystrokes
$ B
ENT
STR 1
L D C
SHFT
ANDST 3
Q V C
SHFT
OR AND
GX V C
SHFT
OUT AND
DL230 Range DL240 Range DL250-1 Range DL260 Range
A aaa
All
V
See memory map
P -
Will be on if the result in the accumulator is zero
The upper 16 bits of the accumulator
will be set to 0
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
Acc.
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0
Acc.
6A38
0 0 0 0
OR (V2006)
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
Acc.
A A A
ENT
2 0 0 0
A A G
ENT
2 0 0 6
A B A
ENT
2 0 1 0
