Automationdirect.com DirectLOGIC DL205 Series User Manual page 559

Chapter 5: Intelligent Box (IBox) Instructions

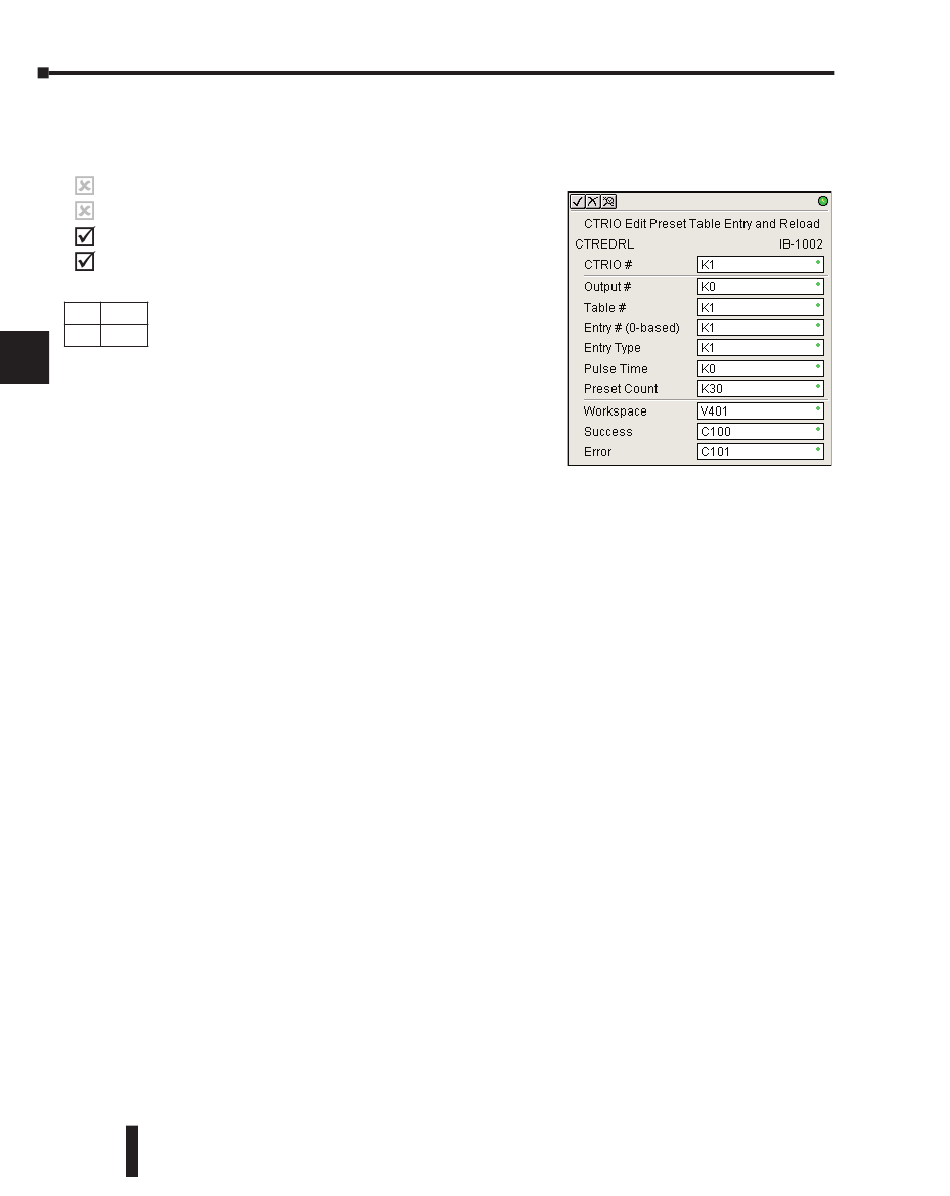

CTRIO Edit Preset Table Entry and Reload (CTREDRL) (IB-1002)
1
CTRIO Edit Preset Table Entry and Reload, on a leading edge transition to this IBox, will
perform this dual operation to a CTRIO Output resource in one CTRIO command. This
IBox will take more than one PLC scan to execute.
230
2
Either the Success or Error bit will turn on when the
240
command is complete. If the Error Bit is on, you can
250-1
3
use the CTRIO Read Error Code (CTRRDER) IBox
260
to get extended error information.
4
Entry Type:
DS5 Used
K0: Set
N/A
HPP
5
K1: Reset
K2: Pulse On (uses Pulse Time)
6
K3: Pulse Off (uses Pulse Time)
K4: Toggle
7
K5: Reset Count
Note that the Pulse Time parameter is ignored by some Entry Types.
8
The Workspace register is for internal use by this IBox instruction and MUST NOT be used
anywhere else in your program.
9
CTREDRL Parameters
10
• CTRIO#: specifies a specific CTRIO module based on a user defined number (see CTRIO Config
Ibox)
11
• Output#: specifies a CTRIO output to be used by the instruction
• Table#: specifies the Table number of which an Entry is to be edited
12
• Entry#: specifies the Entry location in the Preset Table to be edited
• Entry Type: specifies the Entry Type to add during the edit
13
• Pulse Time: specifies a pulse time in msecs for the Pulse On and Pulse Off Entry Types
• Preset Count: specifies an initial count value to begin at after Reset
14
• Workspace: specifies a V-memory location that will be used by the instruction
• Success: specifies a bit that will turn on once the instruction has successfully completed
A
• Error: specifies a bit that will turn on if the instruction does not complete successfully
B
C
D
5–342
DL205 User Manual, 4th Edition, Rev. B
