Chapter 1: Getting Started

Quick Start for PLC Validation and Programming

1
If you have experience using PLCs, or want to setup a quick example, this section is what you
want to use. This example is not intended to explain everything needed to start-up your
system. It is only intended to provide a general picture of what is needed to get your system
2
powered-up.

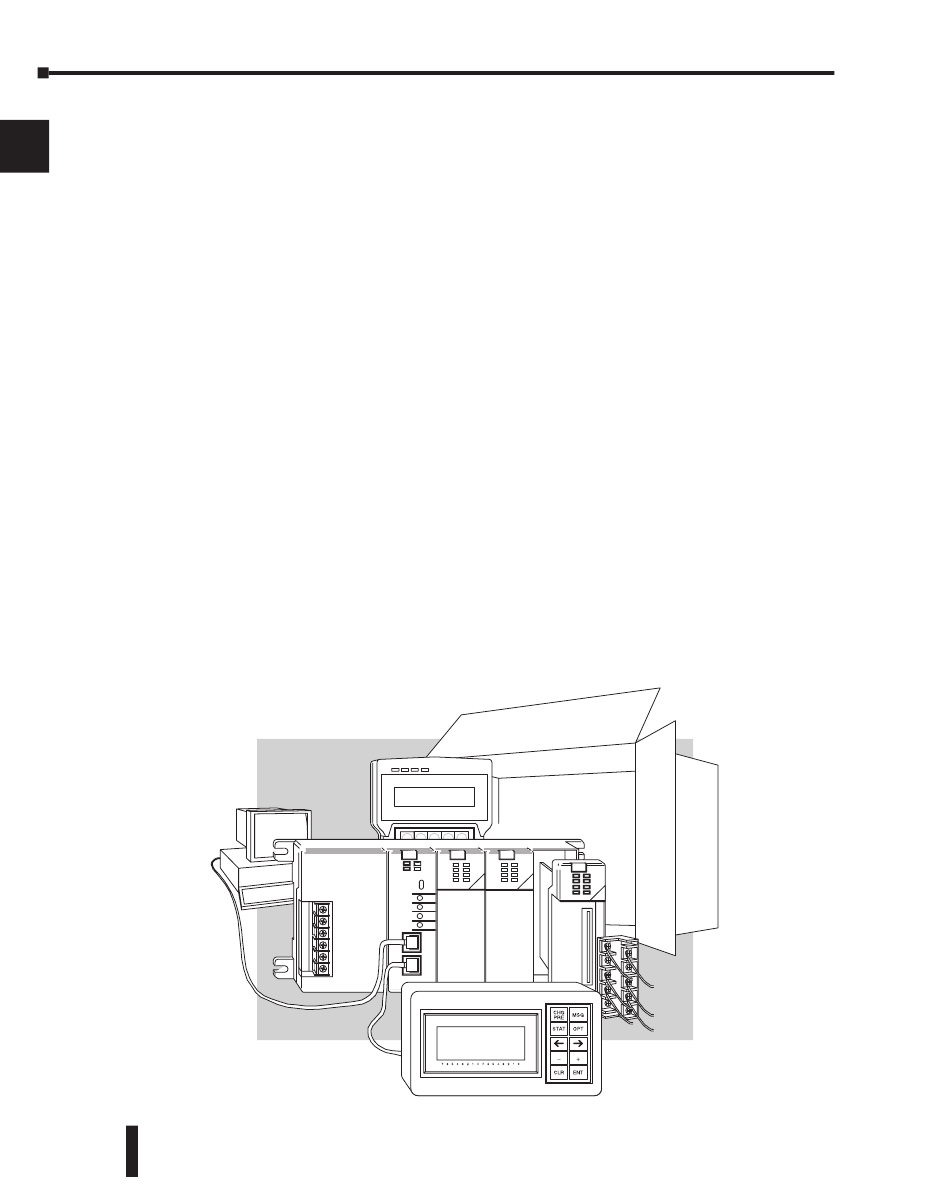

Step 1: Unpack the DL205 Equipment
3
Unpack the DL205 equipment and verify you have the parts necessary to build this
demonstration system. The minimum parts needed are as follows:
4
• Base
• CPU
5
• A discrete input module such as a D2–16ND3–2 DC or a F2–08SIM input simulator module
• A discrete output module such as a D2–16TD1–2 DC
6
• *Power cord
• *Hook up wire
7
• *One or more toggle switches (if not using the input simulator module)
• *A screwdriver, blade or Phillips type
8
*These items are not supplied with your PLC.
You will need at least one of the following programming options:
9
• DirectSOFT5 Programming Software, DirectSOFT5 Manual, and a programming cable
(connects the CPU to a personal computer), or
10
• D2–HPP Handheld Programmer and the Handheld Programmer Manual.
11
12
13
14
A
B
C
D
1–10
DL205 User Manual, 4th Edition, Rev. B
