Chapter 5: Intelligent Box (IBox) Instructions
CTRIO Initialize Preset Table on Reset (CTRINTR) (IB-1010)
1
CTRIO Initialize Preset Table on Reset, on a leading edge transition to this IBox, will create a
single entry Preset Table in memory but not as a file, on a specific CTRIO Output
230
2
resource.This IBox will take more than 1 PLC
240
scan to execute. Either the Success or Error
250-1
bit will turn on when the command is
3
complete. If the Error Bit is on, you can use
260
the CTRIO Read Error Code (CTRRDER)
4
IBox to get extended error information.
DS5
Used
N/A
HPP
Entry Type:
5
K0: Set
6
K1: Reset
K2: Pulse On (uses Pulse Time)
7
K3: Pulse Off (uses Pulse Time)
K4: Toggle
8
K5: Reset Count
Note that the Pulse Time parameter is ignored by some Entry Types.
9
The Workspace register is for internal use by this IBox instruction and MUST NOT be used
anywhere else in your program.
10
11

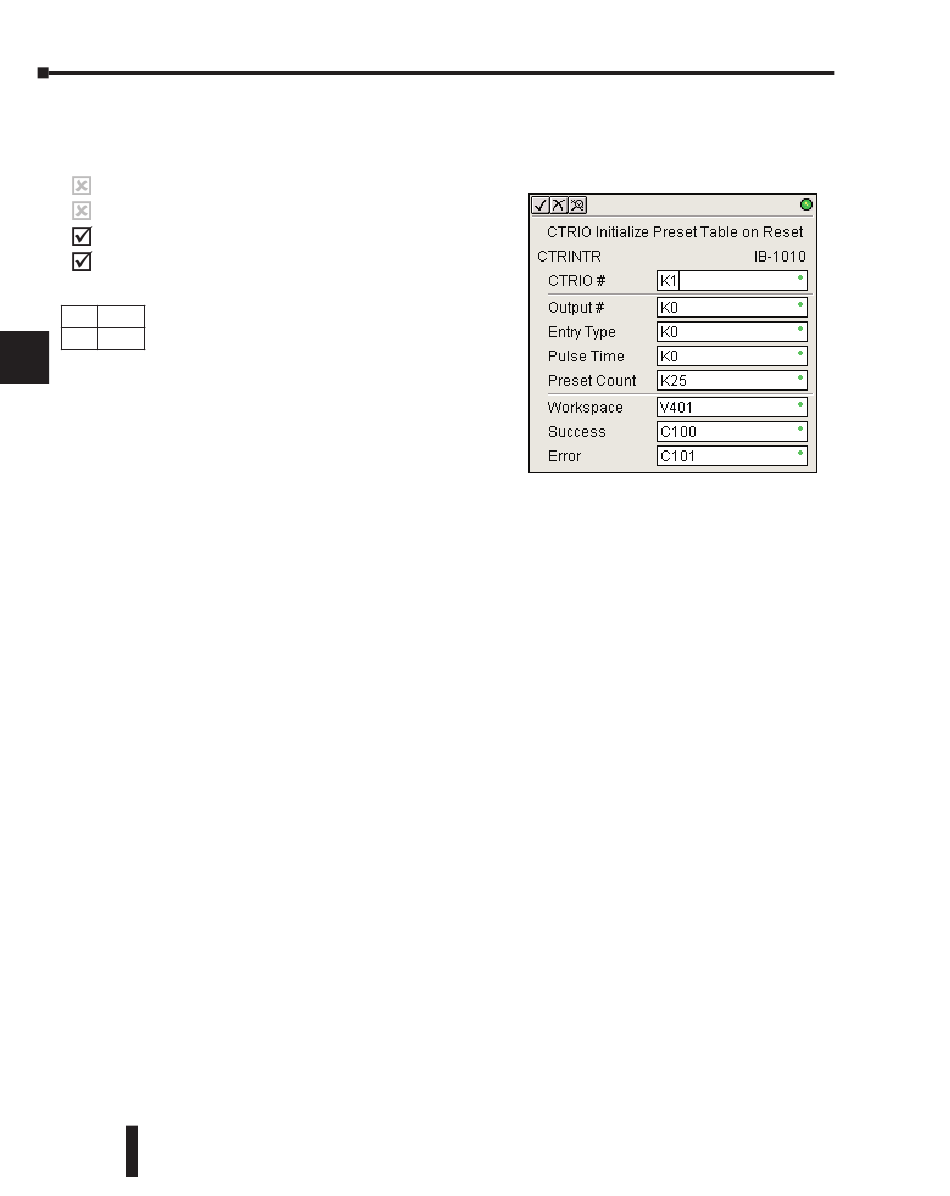

CTRINTR Parameters
• CTRIO#: specifies a specific CTRIO module based on a user defined number (see CTRIO Config
Ibox)
12
• Output#: specifies a CTRIO output to be used by the instruction
13
• Entry Type: specifies the Entry Type to add during the edit
• Pulse Time: specifies a pulse time in msecs for the Pulse On and Pulse Off Entry Types
14
• Preset Count: specifies an initial count value to begin at after Reset
• Workspace: specifies a V-memory location that will be used by the instruction
A
• Success: specifies a bit that will turn on once the instruction has successfully completed
• Error: specifies a bit that will turn on if the instruction does not complete successfully
B
C
D
5–350
DL205 User Manual, 4th Edition, Rev. B
