Chapter 5: Intelligent Box (IBox) Instructions

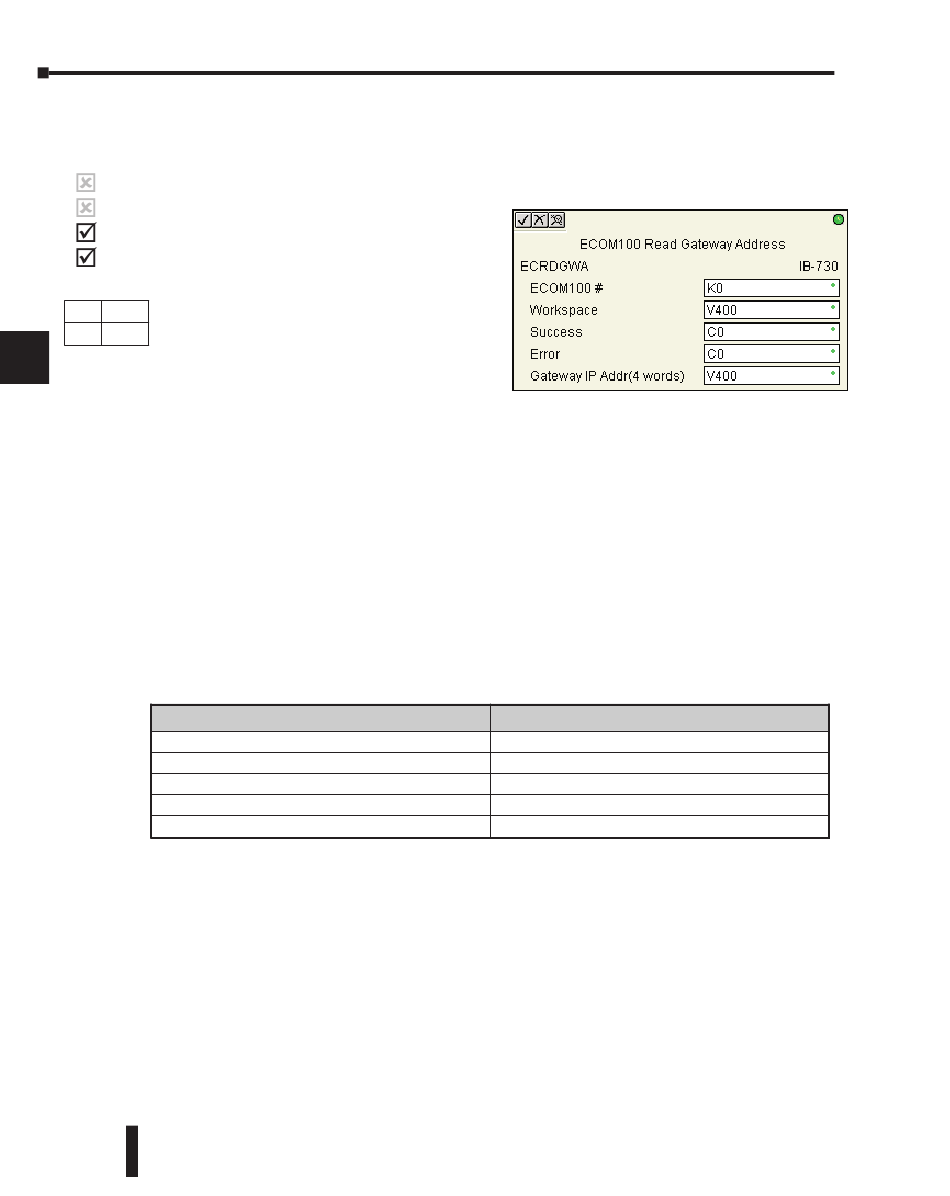

ECOM100 Read Gateway Address (ECRDGWA) (IB-730)
1
ECOM100 Read Gateway Address will read the 4 parts of the Gateway IP address and store
them in 4 consecutive V-memory locations in decimal format, on a leading edge transition to
230 the IBox.
2
240
The Workspace parameter is an internal,
private register used by this IBox and MUST
250-1
3
BE UNIQUE in this one instruction and
260
MUST NOT be used anywhere else in your
4
program.
DS5 Used
Either the Success or Error bit parameter will
N/A
HPP
5
turn on once the command is complete.
In order for this ECOM100 IBox to function,
you must turn ON dip switch 7 on the
6
ECOM100 circuit board.
7
ECRDGWA Parameters
• ECOM100#: this is a logical number associated with this specific ECOM100 module in the
8
specified slot. All other ECxxxx IBoxes that need to reference this ECOM100 module must
reference this logical number
9
• Workspace: specifies a V-memory location that will be used by the instruction
• Success: specifies a bit that will turn on once the request is completed successfully
10
• Error: specifies a bit that will turn on if the instruction is not successfully completed
• Gateway IP Addr: specifies the starting address where the ECOM100's Gateway Address will be
11
placed in 4 consecutive V-memory locations
12
ECOM100# . . . . . . . . . . . . . . . . . . . . . . . . . . . . K
Workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
13
Success . . . . . . . . . . . . . . . . . . . . X,Y,C,GX,GY,B
Error . . . . . . . . . . . . . . . . . . . . . . . X,Y,C,GX,GY,B
14
Gateway IP Address (4 Words) . . . . . . . . . . . . . V
A
B
C
D
5–294
DL205 User Manual, 4th Edition, Rev. B
Parameter DL205 Range
K0-255
See DL205 V-memory map - Data Words
See DL205 V-memory map
See DL205 V-memory map
See DL205 V-memory map - Data Words
