ECEMRDS Example (cont'd)

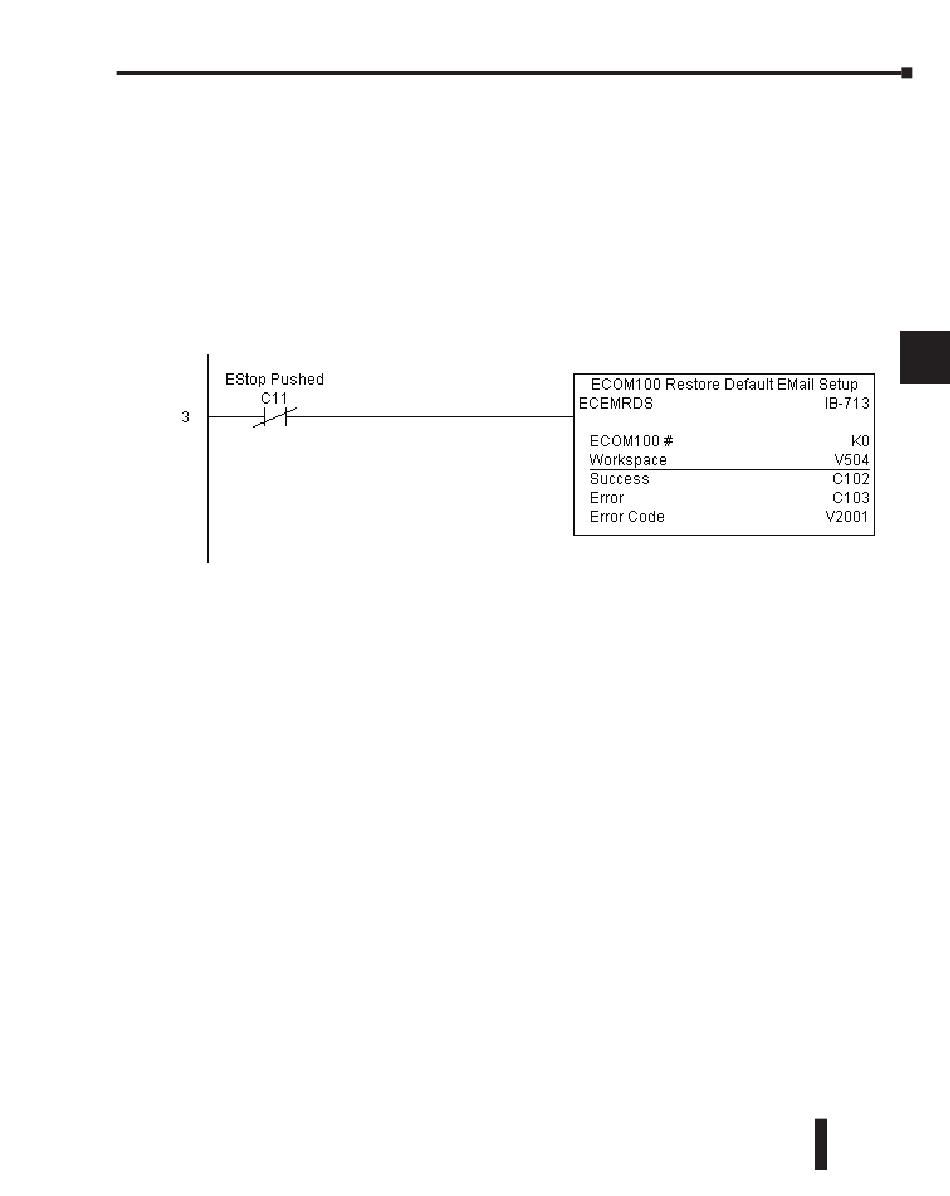

Rung 3: Once the EStop is pulled out, take the president off the cc: list by restoring the
default EMail setup in the ECOM100.
The ECEMRDS is leading edge triggered, not power-flow driven (similar to a counter input
leg). The ROM based EMail configuration stored in the ECOM100 will be copied over the
"working copy" whenever the power flow into the IBox goes from OFF to ON (the working
copy can be changed by using the ECEMSUP IBox).
If successful, turn on C102. If there is a failure, turn on C103. If it fails, you can look at
V2001 for the specific error code.
