Chapter 5: Intelligent Box (IBox) Instructions
ECOM100 Read Module ID (ECRDMID) (IB-720)
1
ECOM100 Read Module ID will read the binary (decimal) WORD sized Module ID on a
leading edge transition to the IBox.
230
2
The Workspace parameter is an internal,
240
private register used by this IBox and MUST
250-1
BE UNIQUE in this one instruction and
3
260
MUST NOT be used anywhere else in your
program.
4
DS5
Used
Either the Success or Error bit parameter will
N/A
HPP
turn on once the command is complete.
5
In order for this ECOM100 IBox to function,
you must turn ON dip switch 7 on the
ECOM100 circuit board.
6
7

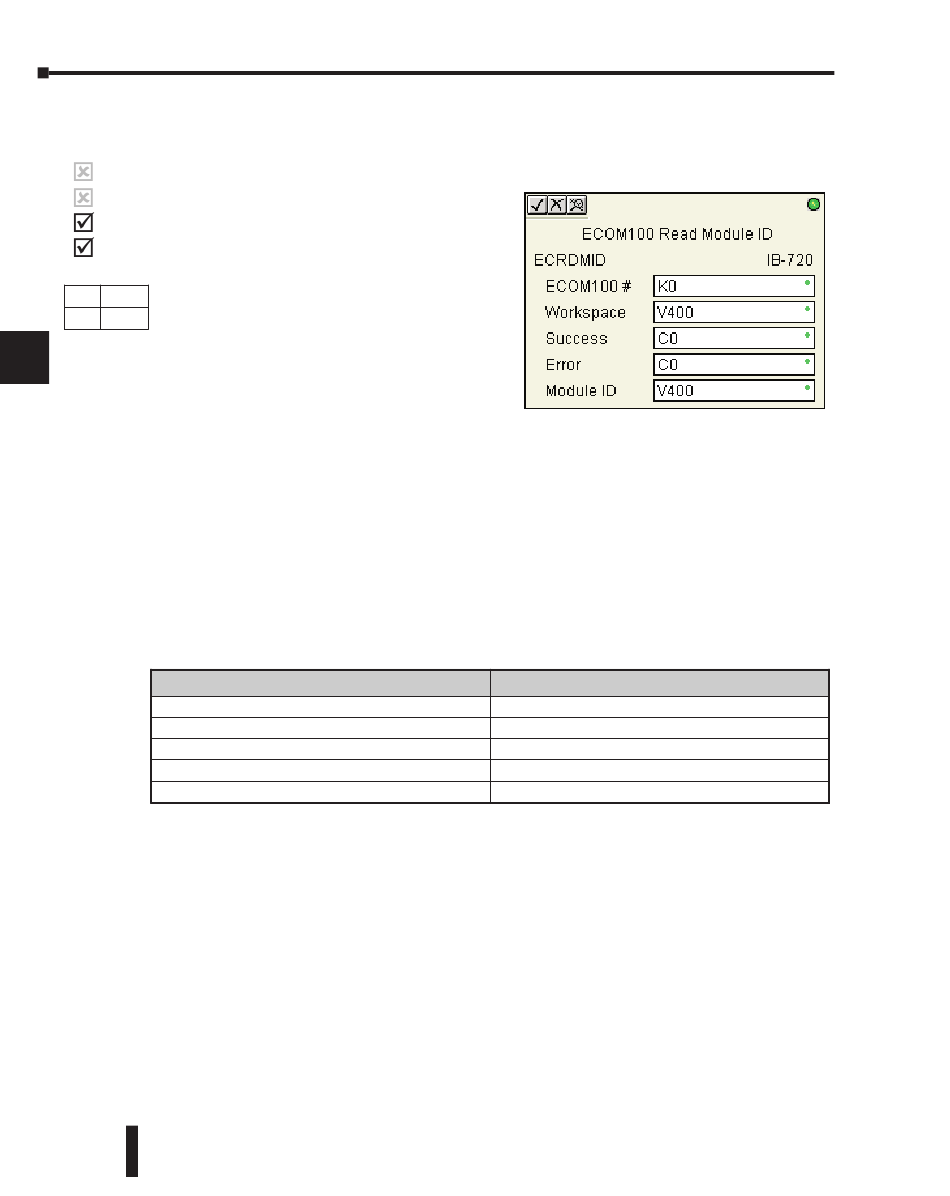

ECRDMID Parameters
• ECOM100#: this is a logical number associated with this specific ECOM100 module in the
specified slot. All other ECxxxx IBoxes that need to reference this ECOM100 module must
8
reference this logical number
• Workspace: specifies a V-memory location that will be used by the instruction
9
• Success: specifies a bit that will turn on once the request is completed successfully
• Error: specifies a bit that will turn on if the instruction is not successfully completed
10
• Module ID: specifies the location where the ECOM100's Module ID (decimal) will be placed
11
ECOM100# . . . . . . . . . . . . . . . . . . . . . . . . . . . . K
12
Workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
Success . . . . . . . . . . . . . . . . . . . . X,Y,C,GX,GY,B
13
Error . . . . . . . . . . . . . . . . . . . . . . . X,Y,C,GX,GY,B
Module ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
14
A
B
C
D
5–298
DL205 User Manual, 4th Edition, Rev. B
Parameter
DL205 Range
K0-255
See DL205 V-memory map - Data Words
See DL205 V-memory map
See DL205 V-memory map
See DL205 V-memory map - Data Words
