Chapter 5: Intelligent Box (IBox) Instructions

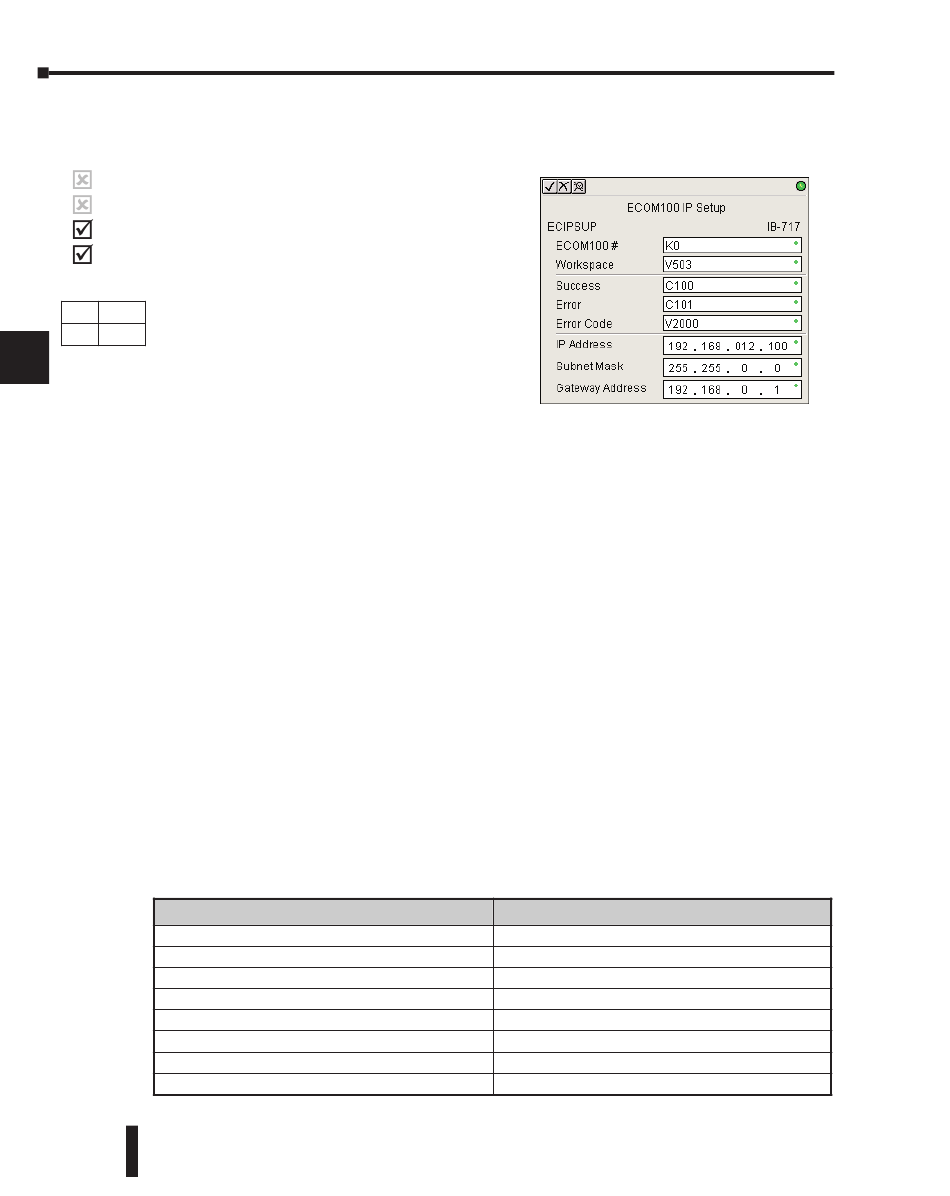

ECOM100 IP Setup (ECIPSUP) (IB-717)
1
ECOM100 IP Setup will configure the three TCP/IP parameters in the ECOM100: IP
Address, Subnet Mask, and Gateway Address, on a leading edge transition to the IBox. The
230
ECOM100 is specified by the ECOM100#,
2
240 which corresponds to a specific unique
ECOM100 Configuration (ECOM100) IBox
250-1
3
at the top of your program.
260
The Workspace parameter is an internal,
4
private register used by this IBox and MUST
DS5 Used
BE UNIQUE in this one instruction and
N/A
HPP
MUST NOT be used anywhere else in your
5
program.
Either the Success or Error bit parameter will
6
turn on once the command is complete. If there is an error, the Error Code parameter will
report an ECOM100 error code (less than 100), or a PLC logic error (greater than 1000).
7
This setup data is stored in Flash-ROM in the ECOM100 and will disable the ECOM100
module for at least a half second until it writes the Flash-ROM. Therefore, it is HIGHLY
8
RECOMMENDED that you only execute this IBox ONCE on the second scan. Since it
requires a LEADING edge to execute, use a NORMALLY CLOSED SP0 (NOT First Scan)
to drive the power flow to the IBox.
9
In order for this ECOM100 IBox to function, you must turn ON dip switch 7 on the
ECOM100 circuit board.
10
ECIPSUP Parameters
• ECOM100#: this is a logical number associated with this specific ECOM100 module in the
11
specified slot. All other ECxxxx IBoxes that need to reference this ECOM100 module must
reference this logical number
12
• Workspace: specifies a V-memory location that will be used by the instruction
• Success: specifies a bit that will turn on once the request is completed successfully
13
• Error: specifies a bit that will turn on if the instruction is not successfully completed
• Error Code: specifies the location where the Error Code will be written
14
• IP Address: specifies the module's IP Address
• Subnet Mask: specifies the Subnet Mask for the module to use
A
• Gateway Address: specifies the Gateway Address for the module to use
B
ECOM100# . . . . . . . . . . . . . . . . . . . . . . . . . . . . K
Workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
Success . . . . . . . . . . . . . . . . . . . . X,Y,C,GX,GY,B
C
Error . . . . . . . . . . . . . . . . . . . . . . . X,Y,C,GX,GY,B
Error Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
D
IP Address . . . . . . . . . . . . . . . . . . . . . IP Address
Subnet Mask Address . . . . . . . IP Address Mask
Gateway Address . . . . . . . . . . . . . . . . IP Address
5–290
DL205 User Manual, 4th Edition, Rev. B
Parameter DL205 Range
K0-255
See DL205 V-memory map - Data Words
See DL205 V-memory map
See DL205 V-memory map
See DL205 V-memory map - Data Words
0.0.0.1. to 255.255.255.254
0.0.0.1. to 255.255.255.254
0.0.0.1. to 255.255.255.254
