Chapter 5: Intelligent Box (IBox) Instructions
CTRVELO Example
1

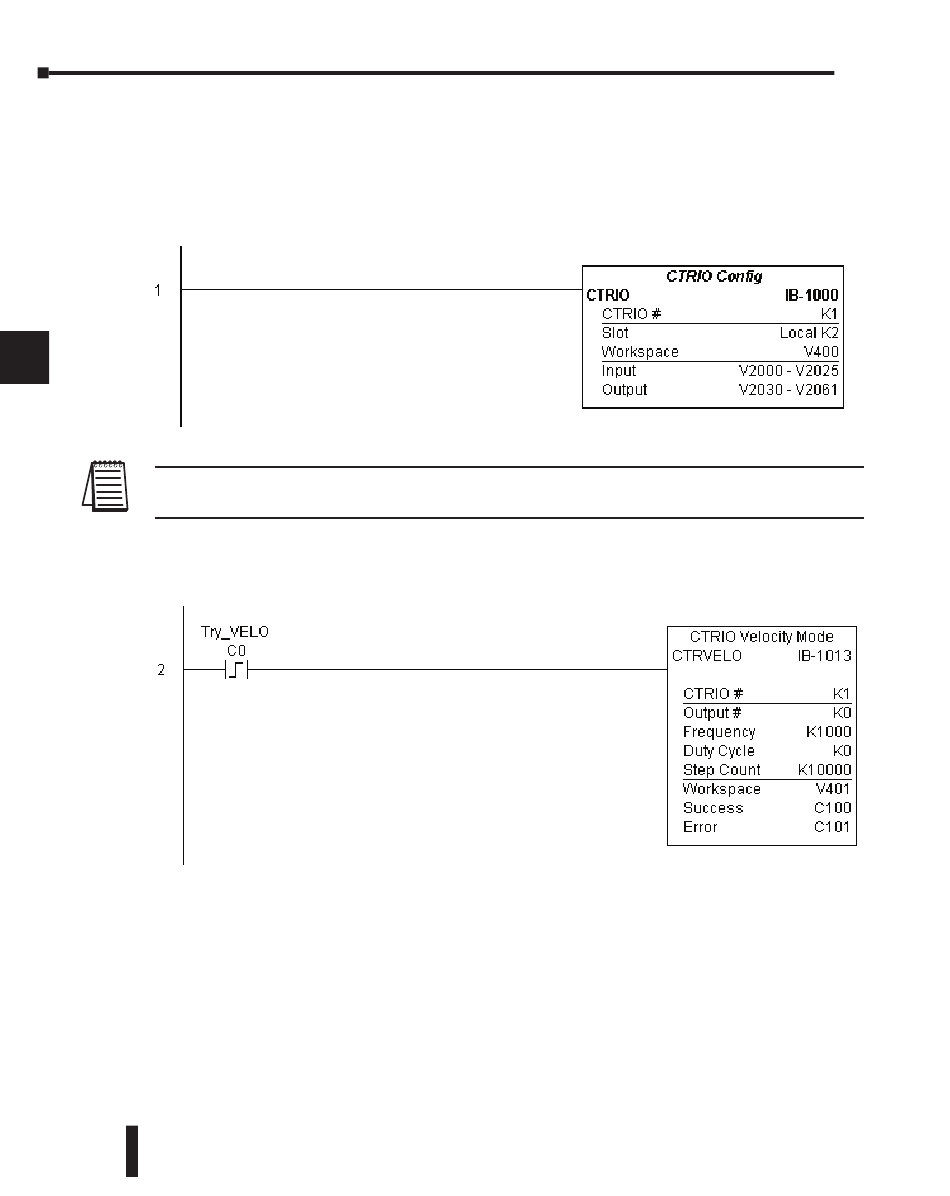

Rung 1: This sets up the CTRIO module in slot 2 of the local base. Each CTRIO module in
the system will need a separate CTRIO Config IBox before any CTRxxxx IBoxes can be used.
The CTRIO has been configured to use V2000 through V2025 for its input data, and V2030
2
through V2061 for its output data.
3
4
5
6
7
NOTE: The CTRIO Configuration IBox instruction does not require a permissive contact. The top line will be
identified in BOLD italics, and the instruction name and ID will be in BOLD characters.
8
Rung 2: This CTRIO Velocity Mode IBox sets up Output #0 in CTRIO #1 to output
9
10,000 pulses at a Frequency of 1000 Hz. This example program requires that you load
CTRVELO_IBox.cwb into your Hx-CTRIO(2) module.
10
11
12
13
14
A
B
C
D
