Chapter 5: Intelligent Box (IBox) Instructions
CTRRTPM Example (cont'd)
1

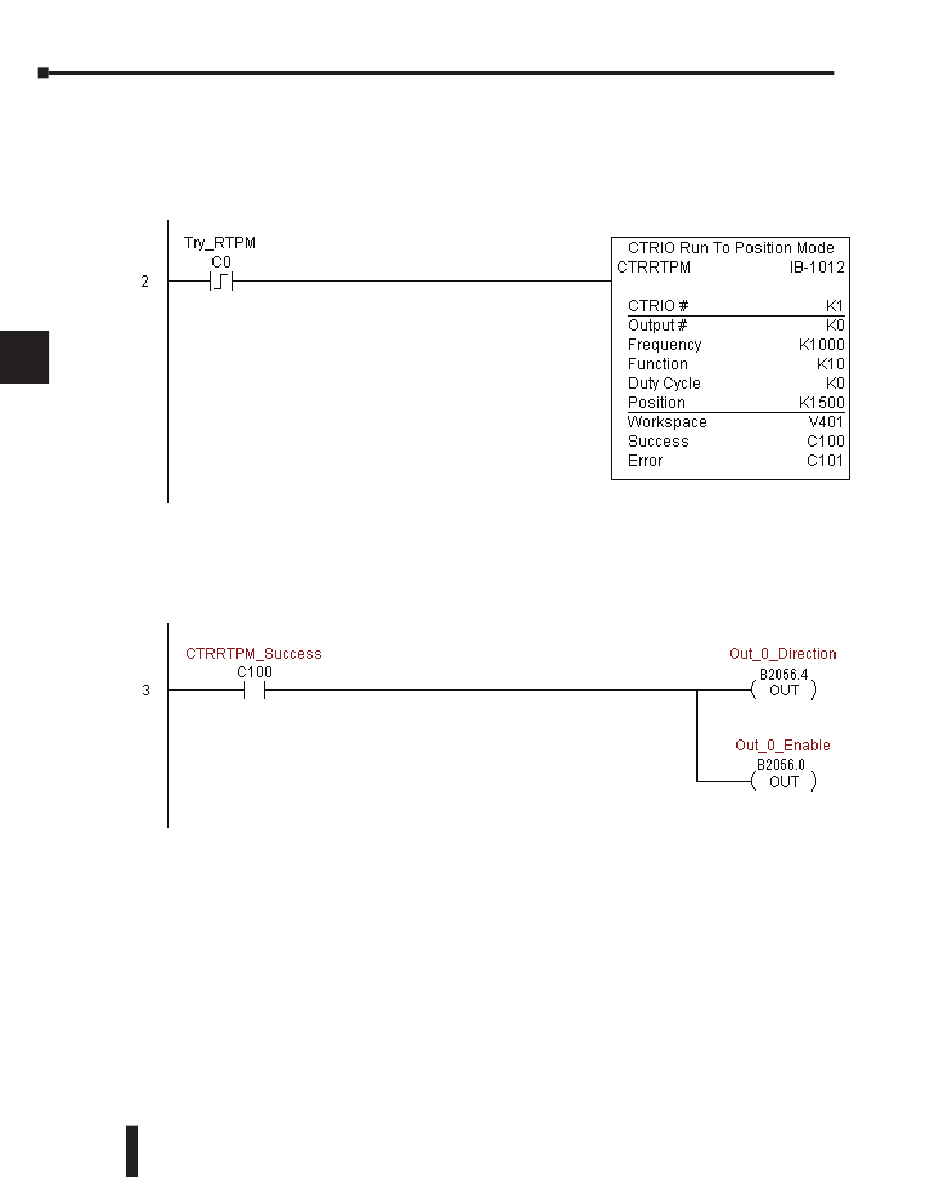

Rung 2: This CTRIO Run To Position Mode IBox sets up Output #0 in CTRIO #1 to
output pulses at a Frequency of 1000 Hz, use the 'Greater than Ch1/Fn1' comparison
operator, until the input position of 1500 is reached. This example program requires that you
2
load CTRRTPM_IBox.cwb into your Hx-CTRIO(2) module.
3
4
5
6
7
8
Rung 3: If the Run To Position Mode parameters are OK, set the Direction Bit and Enable
9
the output.
10
11
12
13
14
A
B
C
D
