Chapter 5: Intelligent Box (IBox) Instructions
One Shot (ONESHOT) (IB-303)
1
One Shot will turn on the given bit output parameter for one scan on an OFF to ON
transition of the power flow into the IBox. This IBox is simply a different name for the PD
230
Coil (Positive Differential).
2
240
250-1
ONESHOT Parameters
3
260
• Discrete Output: specifies the output that
will be on for one scan
4
DS5 Used
HPP N/A
5
6
Discrete Output . . . . . . . . . . . . . . . . . . . . . X, Y, C
7

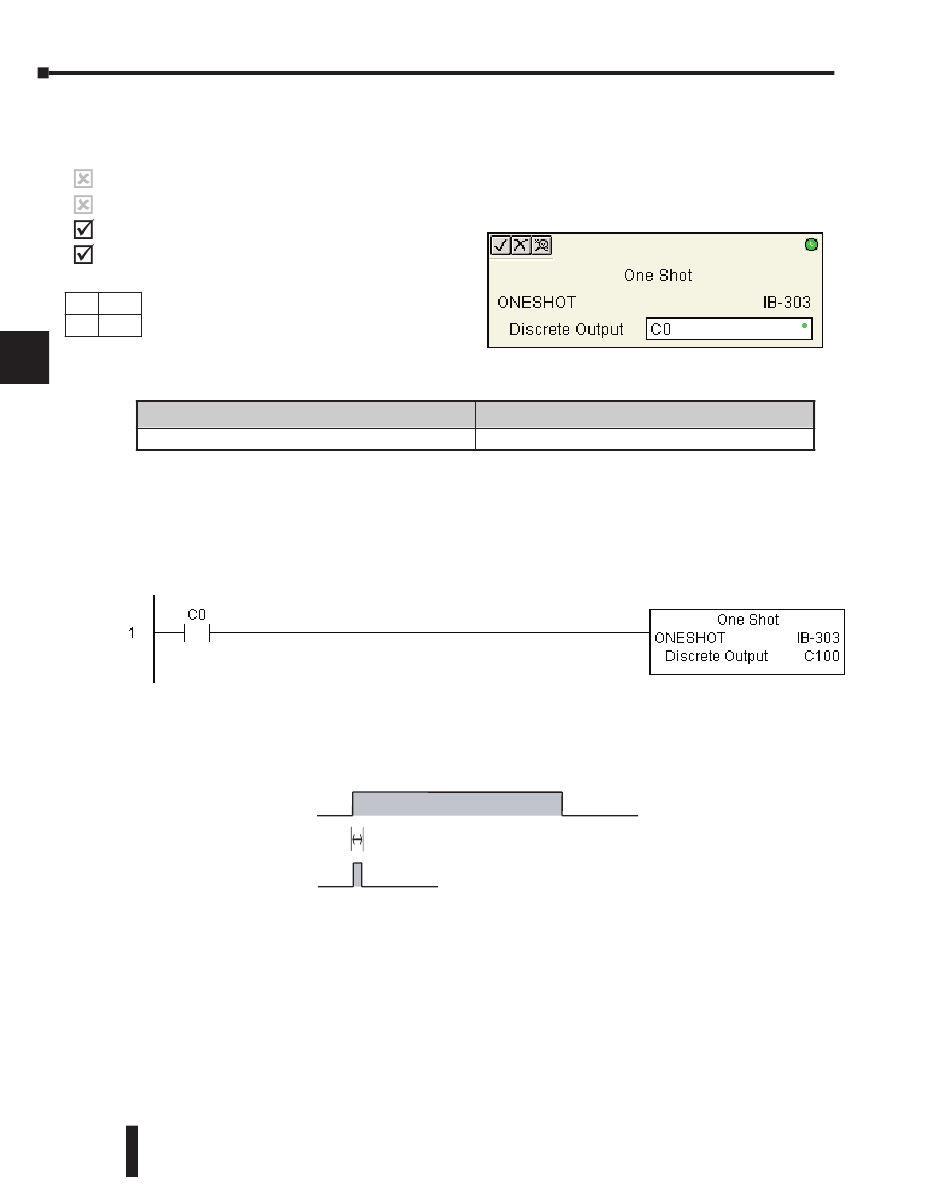

ONESHOT Example
In the following example, the ONESHOT instruction is used to turn C100 on for one PLC
8
scan after C0 goes from an off to on transition. The input logic must produce an off to on
transition to execute the One Shot instruction.
9
10
11
12
13
14
A
B
C
D
5–252
DL205 User Manual, 4th Edition, Rev. B
Parameter
Example timing diagram
C0
Scan time
C100
DL205 Range
See DL205 V-memory map
