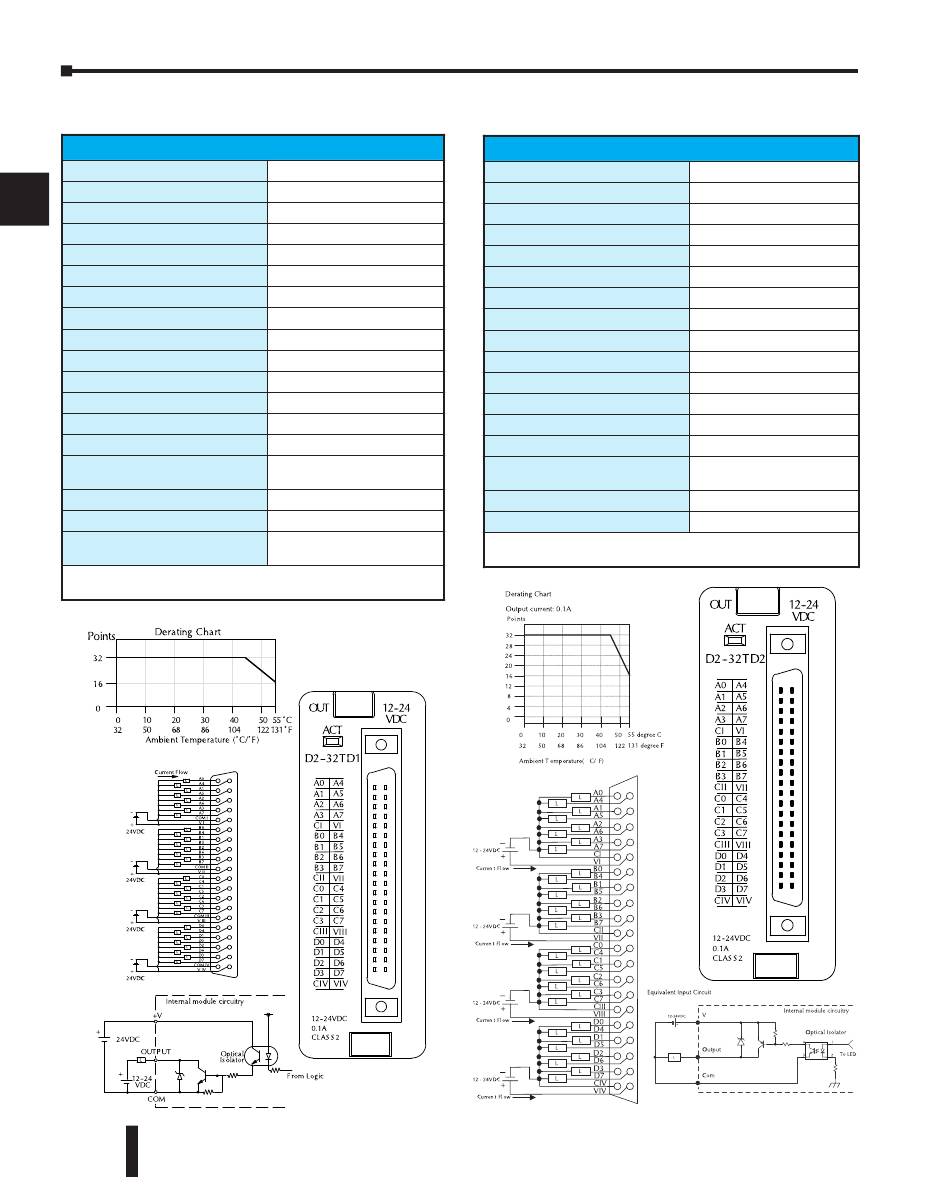

D2–32TD1, DC Output
1
D2-32TD1 DC Output
Outputs per Module
2
Commons per Module
Output Type
Operating Voltage
3
Peak Voltage
ON Voltage Drop
4
Minimum Load Current
Max Load Current
Max Leakage Current
5
Max Inrush Current
Base Power Required 5VDC
6
OFF to ON Response
ON to OFF Response
Terminal Type (not included)
7
Status Indicator
Weight
8
Fuses
External DC Power Required
9
1 Connector sold separately.
See Terminal Blocks and Wiring for wiring options.
10
11
12
13
14
A
B
C
D
2–42
DL205 User Manual, 4th Edition, Rev. B
32 (current sinking)
4 (8 I/O terminal points)
NPN open collector
12-24 VDC
30 VDC
0.5 VDC maximum
0.2 mA
0.1A/point; 3.2A per module
0.1 mA @ 30 VDC
150 mA for 10 ms
350 mA
0.5 ms
0.5 ms
removable 40-pin connector 1
Module activity (no I/O status
indicators)
2.1 oz. (60g)
None
20-28 VDC max. 120 mA (all
points on)
D2–32TD2, DC Output
D2-32TD2 DC Output
Outputs per Module
Commons per Module
Output Type
Operating Voltage
Peak Voltage
ON Voltage Drop
Minimum Load Current
Max Load Current
Max Leakage Current
Max Inrush Current
Base Power Required 5VDC
OFF to ON Response
ON to OFF Response
Terminal Type (not included)
Status Indicator
Weight
Fuses
1 Connector sold separately.
See Terminal Blocks and Wiring for wiring options.
32 (current sourcing)
4 (8 I/O terminal points)
Transistor
12 to 24 VDC
30 VDC
0.5 VDC @ 0.1 A
0.2 mA
0.1A/point; 0.8A/common
0.1 mA @ 30 VDC
150 mA @ 10 ms
350 mA
0.5 ms
0.5 ms
Removable 40-pin connector 1
Module activity (no I/O status
indicators)
2.1 oz (60g)
None
