Chapter 2: Installation, Wiring and Specifications

Panel Mounting and Layout

1
It is important to design your panel properly to help ensure the DL205 products operate
within their environmental and electrical limits. The system installation should comply with
all appropriate electrical codes and standards. It is important the system also conforms to the
2
operating standards for the application to insure proper performance. The diagrams below
reference the items in the following list.
3
OK
4
5
Airflow
6

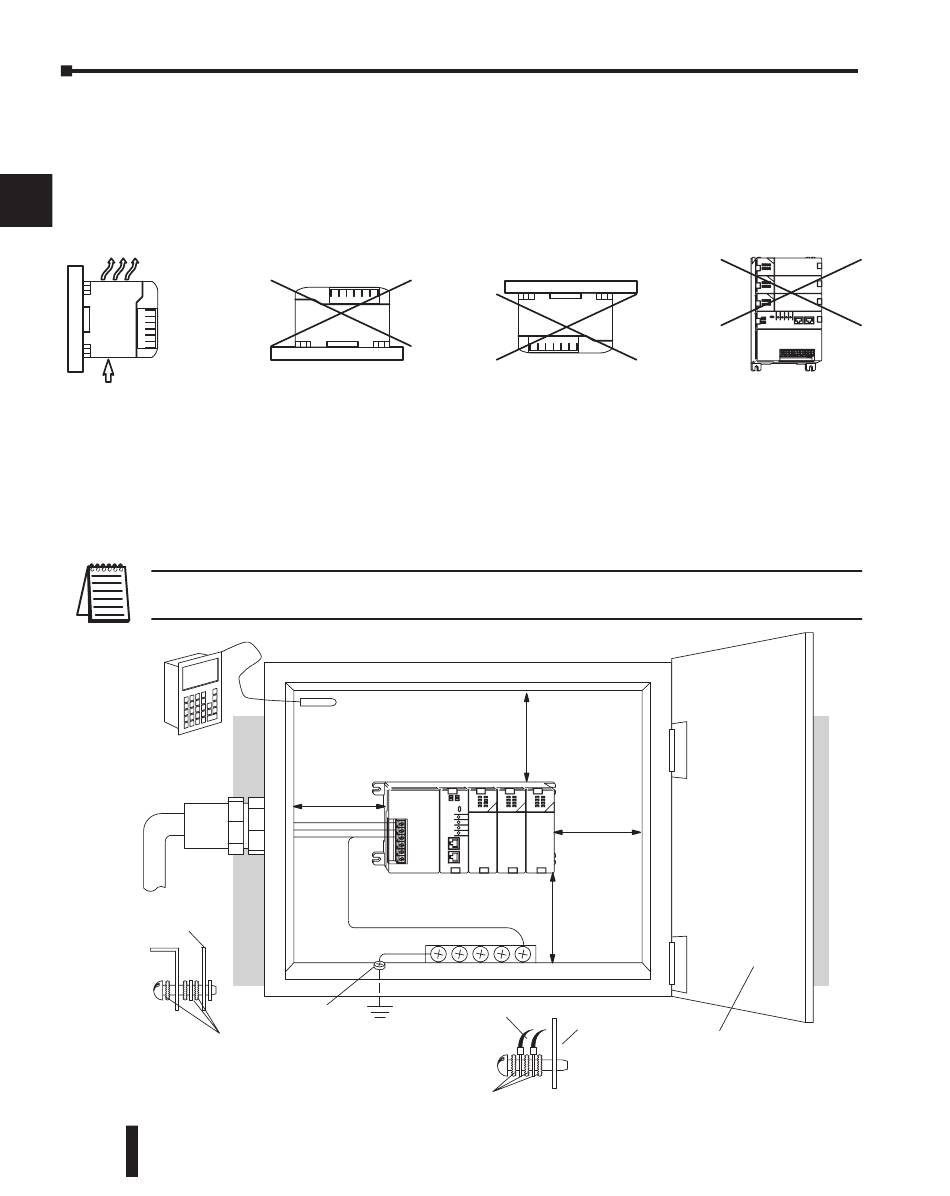

1. Mount the bases horizontally to provide proper ventilation.
2. If you place more than one base in a cabinet, there should be a minimum of 7.2" (183mm)
7
between bases.
3. Provide a minimum clearance of 2" (50mm) between the base and all sides of the cabinet. There
should also be at least 1.2" (30mm) of clearance between the base and any wiring ducts.
8
4. There must be a minimum of 2" (50mm) clearance between the panel door and the nearest DL205
component.
9
NOTE: The cabinet configuration below is not suitable for EU installations.
Refer to Appendix I European Union Directives.
10
11
12
13
Power
14
Source
A
B Panel
C
D
2–6
DL205 User Manual, 4th Edition, Rev. B
Temperature
Probe
2"
50mm
min.
Panel Ground
Terminal
Earth Ground
Star Washers
2"
50mm
min.
DL205 CPU Base
50mm
2"
50mm
min.
BUS Bar
Panel or
Ground Braid
Single Point
Ground
Copper Lugs
Star Washers
2"
min.
Note: there is a minimum of 2" (50mm)
clearance between the panel door
or any devices mounted in the panel door
and the nearest DL205 component
