Chapter 5: Intelligent Box (IBox) Instructions

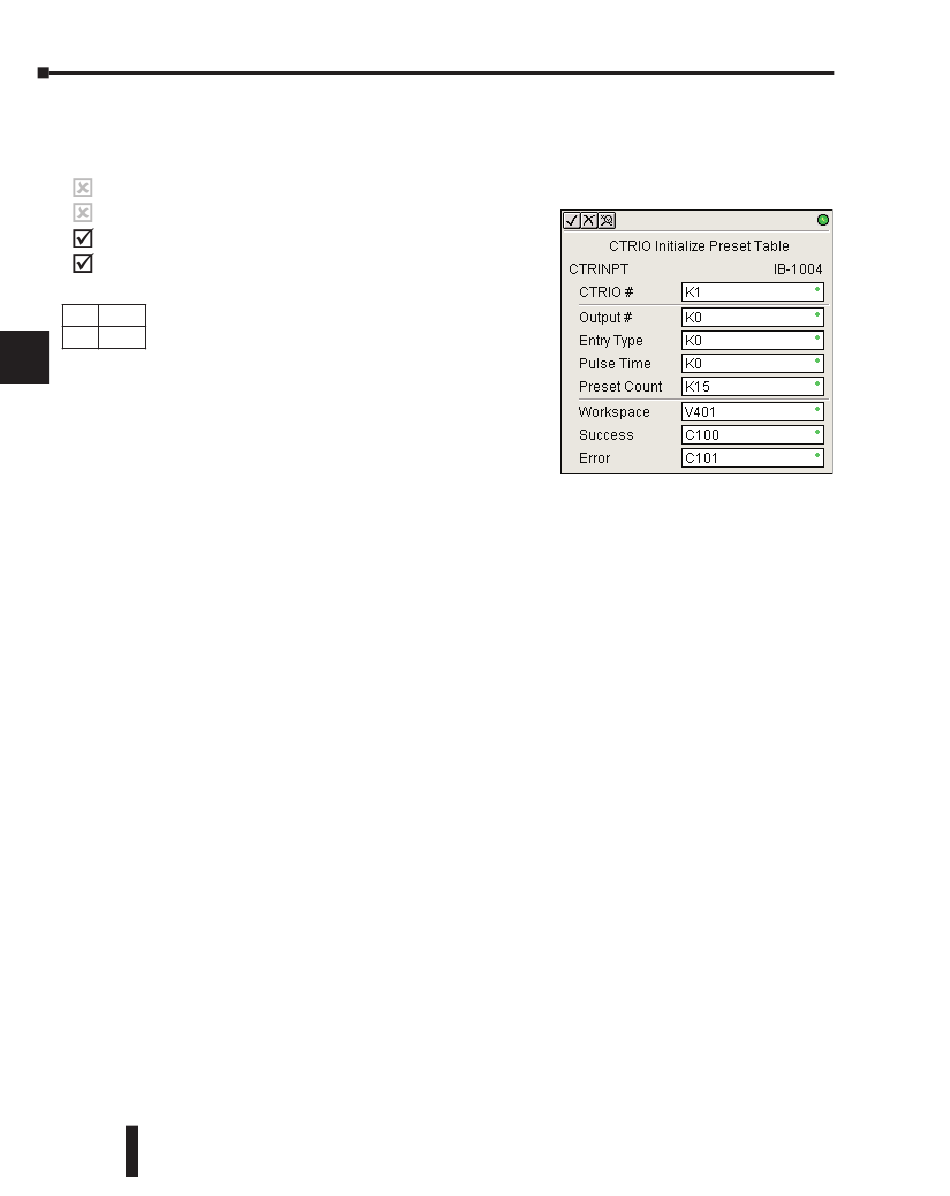

CTRIO Initialize Preset Table (CTRINPT) (IB-1004)
1
CTRIO Initialize Preset Table, on a leading edge transition to this IBox, will create a single
entry Preset Table in memory but not as a file, on a specific CTRIO Output resource. This
2
230
IBox will take more than one PLC scan to
240 execute. Either the Success or Error bit will turn
on when the command is complete. If the Error
250-1
3
Bit is on, you can use the CTRIO Read Error
260
Code (CTRRDER) IBox to get extended error
4
information.
DS5 Used
N/A
HPP
Entry Type:
5
K0: Set
6
K1: Reset
K2: Pulse On (uses Pulse Time)
7
K3: Pulse Off (uses Pulse Time)
K4: Toggle
8
K5: Reset Count
Note that the Pulse Time parameter is ignored by some Entry Types.
9
The Workspace register is for internal use by this IBox instruction and MUST NOT be used
anywhere else in your program.
10
11
CTRINPT Parameters
• CTRIO#: specifies a specific CTRIO module based on a user defined number (see CTRIO Config
Ibox)
12
• Output#: specifies a CTRIO output to be used by the instruction
13 • Entry Type: specifies the Entry Type to add during the edit
• Pulse Time: specifies a pulse time in msecs for the Pulse On and Pulse Off Entry Types
14 • Preset Count: specifies an initial count value to begin at after Reset
• Workspace: specifies a V-memory location that will be used by the instruction
A • Success: specifies a bit that will turn on once the instruction has successfully completed
• Error: specifies a bit that will turn on if the instruction does not complete successfully
B
C
D
5–346
DL205 User Manual, 4th Edition, Rev. B
