Chapter 5: Intelligent Box (IBox) Instructions

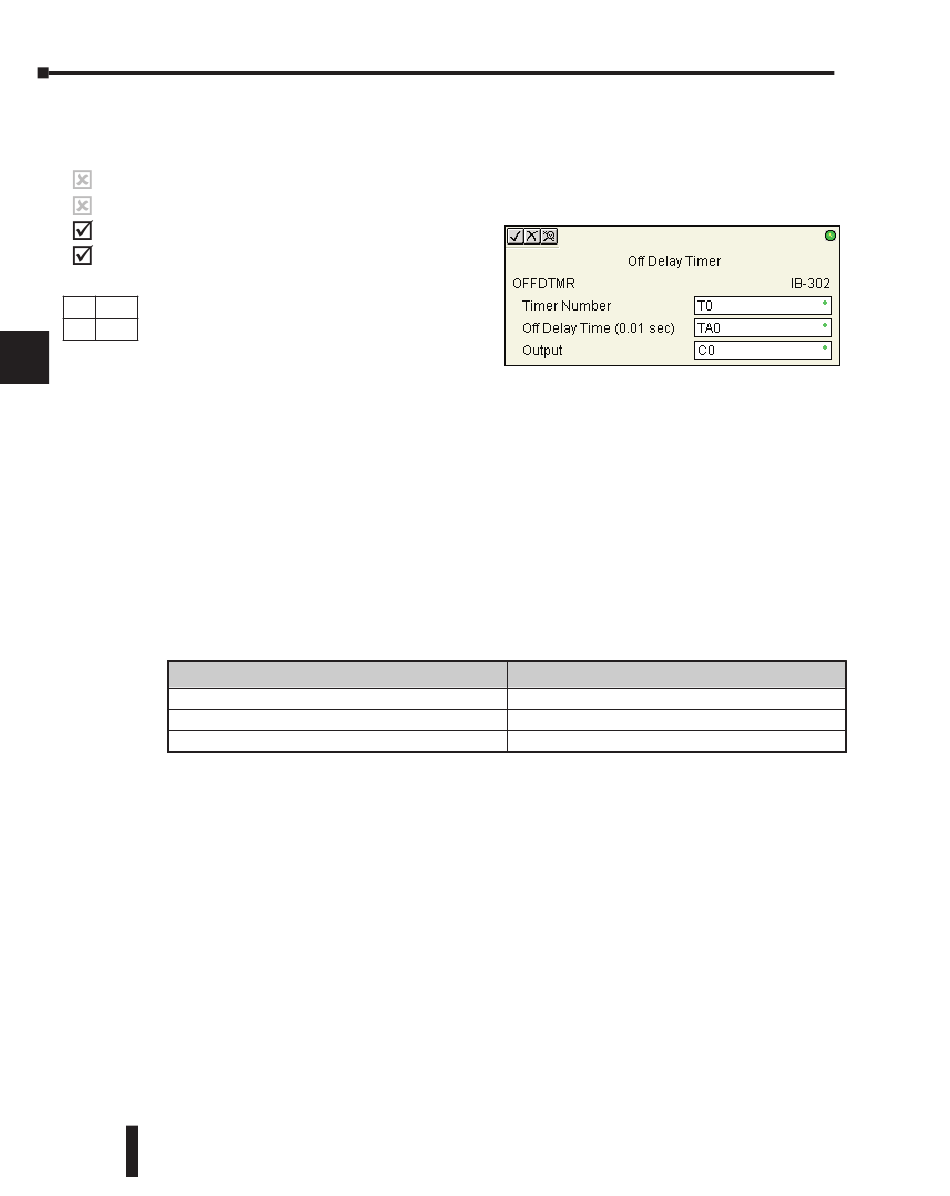

Off Delay Timer (OFFDTMR) (IB-302)
1
Off Delay Timer will delay the "turning off" of the Output parameter by the specified Off
Delay Time (up to 99.99 seconds) based on the power flow into the IBox. Once the IBox
230
receives power, the Output bit will turn on
2
immediately. When the power flow to the
240
IBox turns off, the Output bit WILL
250-1
3
REMAIN ON for the specified amount of
260
time (in hundredths of a second). Once the
Off Delay Time has expired, the output will
4
DS5 Used
turn Off. If the power flow to the IBox comes
N/A
HPP
back on BEFORE the Off Delay Time, then
5
the timer is RESET and the Output will
remain On - so you must continuously have
NO power flow to the IBox for AT LEAST
6
the specified Off Delay Time before the Output will turn Off.
This IBox utilizes a Timer resource (TMRF), which cannot be used anywhere else in your
7
program.
8
OFFDTMR Parameters
• Timer Number: specifies the Timer(TMRF) number which is used by the OFFDTMR instruction
9
• Off Delay Time (0.01sec): specifies how long the Output will remain on once power flow to the
Ibox is removed (up to 99.99 seconds).
10
• Output: specifies the output that will be delayed "turning off " by the Off Delay Time.
11
Timer Number . . . . . . . . . . . . . . . . . . . . . . . . . T
12
Off Delay Time . . . . . . . . . . . . . . . . . . . . . . . . K,V
Output . . . . . . . . . . . . . . . . . . . . X, Y, C, GX,GY, B
13
14
A
B
C
D
5–248
DL205 User Manual, 4th Edition, Rev. B
Parameter DL205 Range
T0-377
K0-9999; See DL205 V-memory map - Data Words
See DL205 V-memory map
